8.9 Rating plates
The rating plate identifies the components and the technical data.
Rating plate are provided as follows:
• bottom-right on the control panel
• in the operating mechanism box (inside cover)

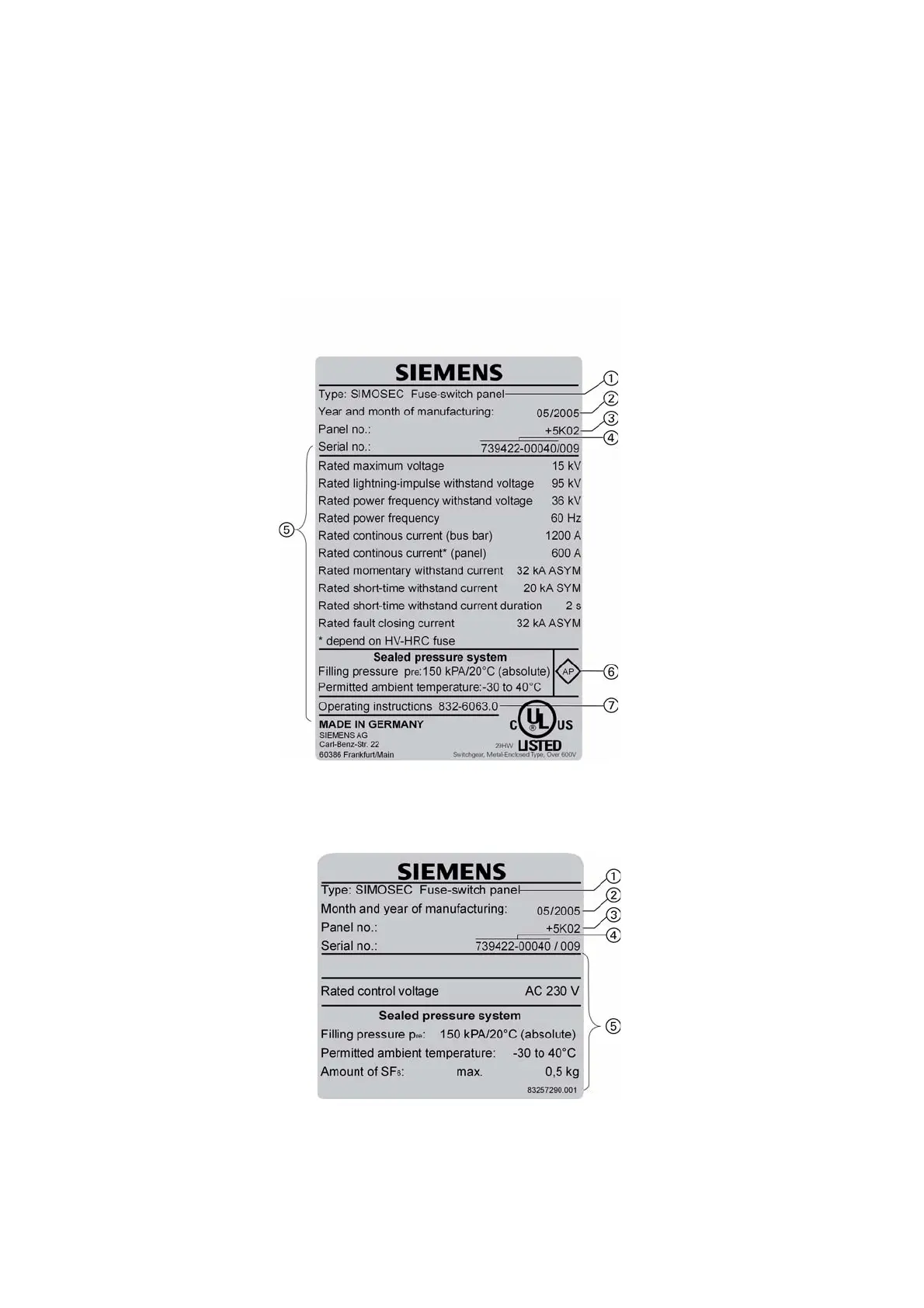

Fig. 17: Rating plate on the control panel
a
Switchgear type
s
Year of manufacturing
d
Panel number
f
Order number
g
Technical data
h
Test mark for performed acceptance
test (pressure test) of the vessel
j
Order number of operating instructions
Fig. 18: Rating plate in the
operating mechanism box
