Operation
82 REVISION 02 * OPERATION SIMOSEC* 832-6063.0
20 Operating the make-proof grounding switch
Panels with make-proof grounding switch:
• Cable grounding panel CG
• Bus bar grounding panel BG, CG
20.1 Indicators and control elements of the make-proof grounding switch

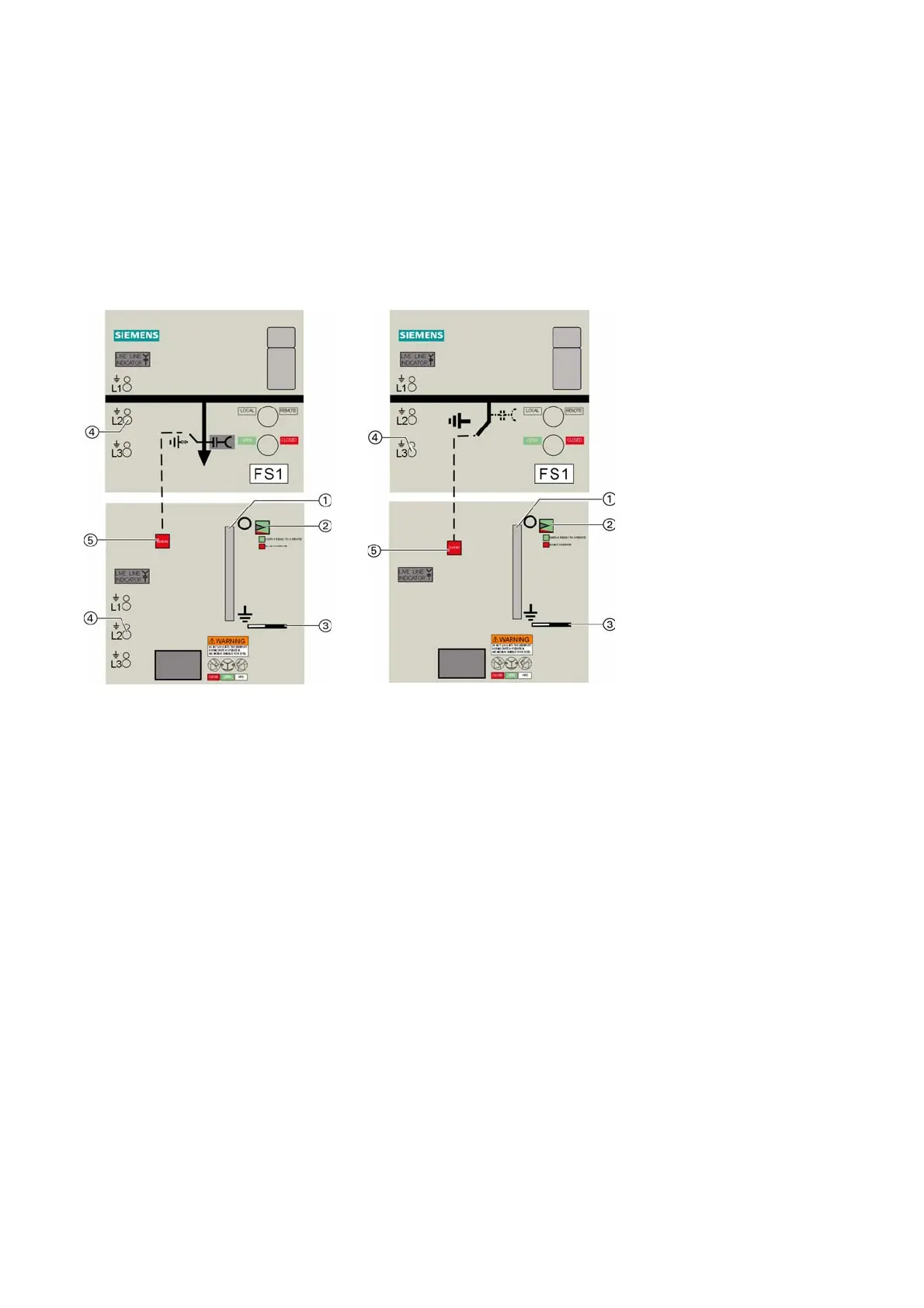

Fig. 65: Control panel of cable
grounding panel with
make-proof grounding switch
Fig. 66: Control panel of bus bar
grounding panel with
make-proof grounding switch
a
Opening for the operating lever mecha-
nism of the make-proof grounding switch
s
‘‘Ready-for-service“ indicator for SF
6
gas
d
Control gate for fault make grounding
switch
f
Socket for capacitive voltage indicators
g
Switch position indicator
