Installation
46 REVISION 02 * INSTALLATION SIMOSEC * 832-6063.0
Bolting the panel to the
sill channels
Ö Align the panel in horizontal and vertical position.
Ö Bolt the panel to the sill channels, without distorting the panel.
Bolting the panel to the
foundation inserts
Ö Drill holes for inserts according to the hole pattern (see dimension drawing).
Ö Install the insert anchors.
Ö Clean drilling dust and debris from the panel.
Ö Align the panel in horizontal and vertical position.
Ö Bolt the panel to the foundation inserts, without distorting the panel.
12.3 Aligning and joining another panel
For trouble-free operation, all panels must be in vertical position and may only have a
horizontal level difference (mis-alignment) of 0.04 in/yd (1 mm/m).
Ö Establish the same level (0.04 in/yd (1 mm/m)) using shims f .
Ö Align the panel d in horizontal and vertical position.

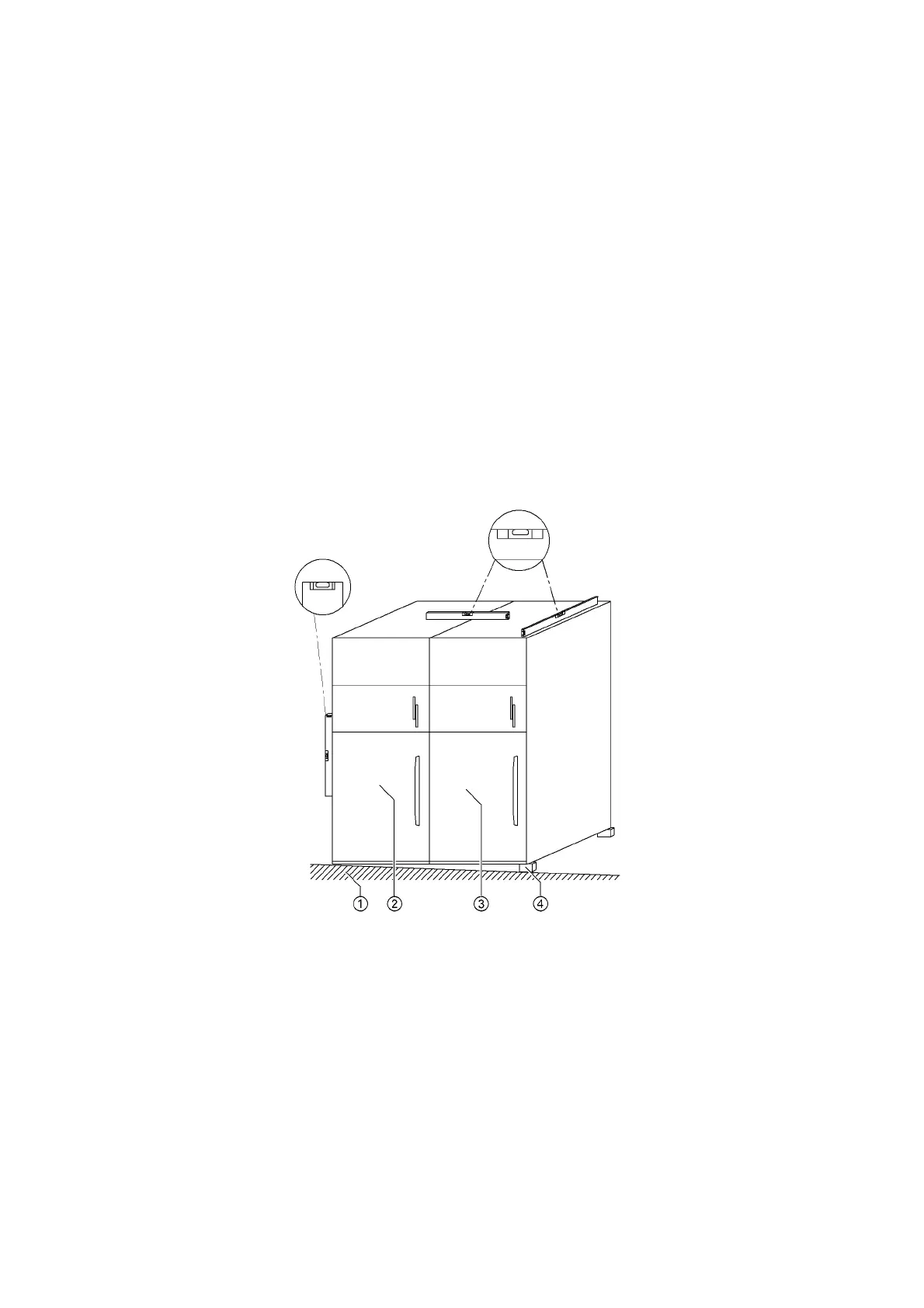

Fig. 36: Alignment and levelling of panels
a
Foundation
s
Aligned panel
d
Next panel
f
shims 0.02 - 0.04 in (0.5 - 1.0 mm)
