Installation
48 REVISION 02 * INSTALLATION SIMOSEC * 832-6063.0
12.4 Installing the bus bar
Access to bus bar
compartment
Access to bus bar compartment:
• from the side (during installation)
• from the front side
Cleaning
insulators / bus bars
Ö Clean insulators / bus bars with cleaning agent (household cleaner) and a lint-free
cloth.
Ö Dry insulators / bus bars with a lint-free cloth.
Ö Do not use any abrasive cleaner or wire brush on plated contact surfaces.

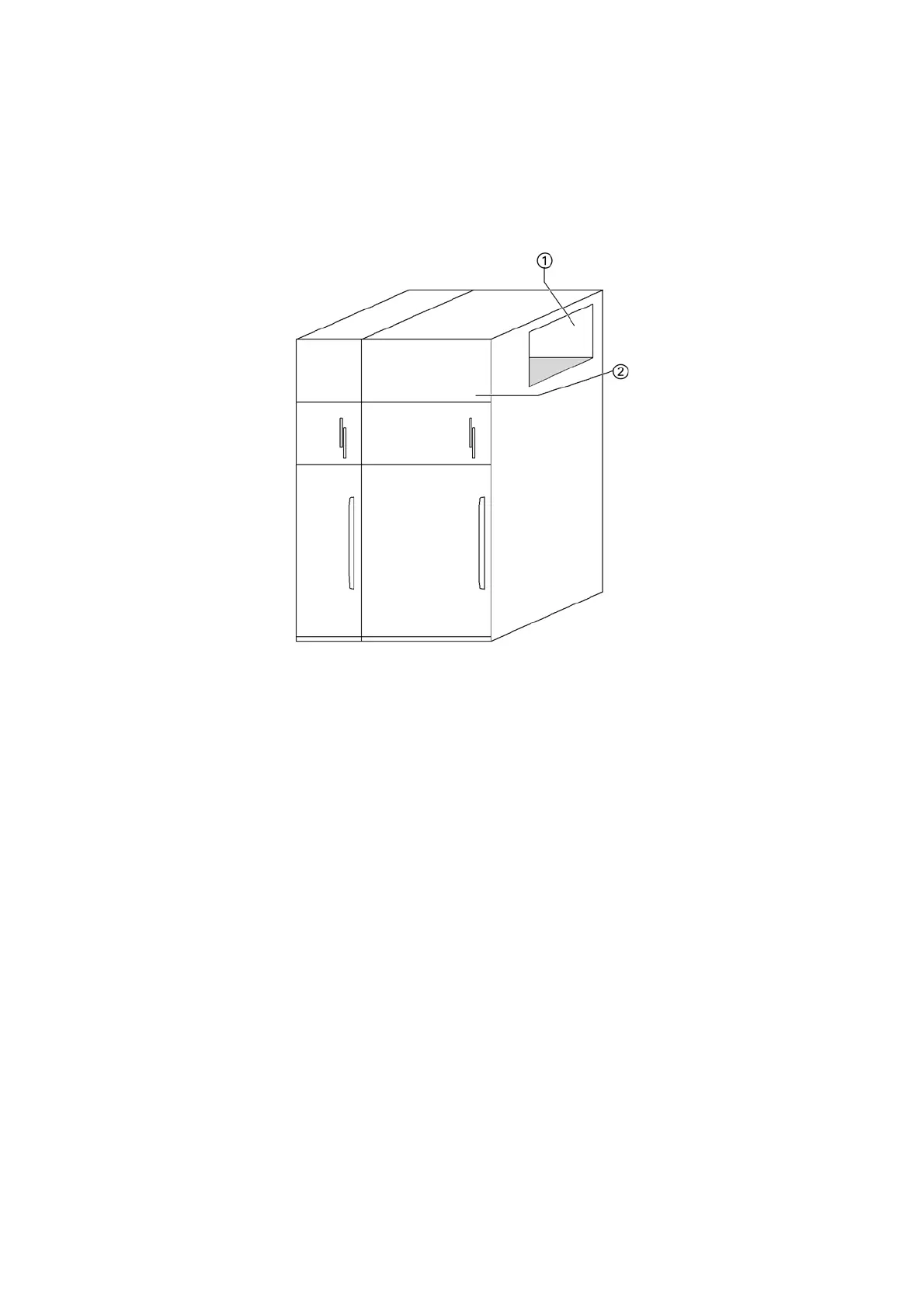

Fig. 39: Access to bus bar compartment
a
Bus bar compartment
s
Front cover of bus bar compartment
