Installation
Fastening bus bars
Ö Assemble the bus bars and the fixing material on the points of contact of the panel.
Ö Screw the bus bar tight (tightening torque 37 lbf·ft (50 Nm)).
a
Insulator
s
Spacer
d
Bus bar
f
Conical spring washer
g
Holding clip
h
Shrink-on sleeve (optional)
j
Bolt M10 for bus bars

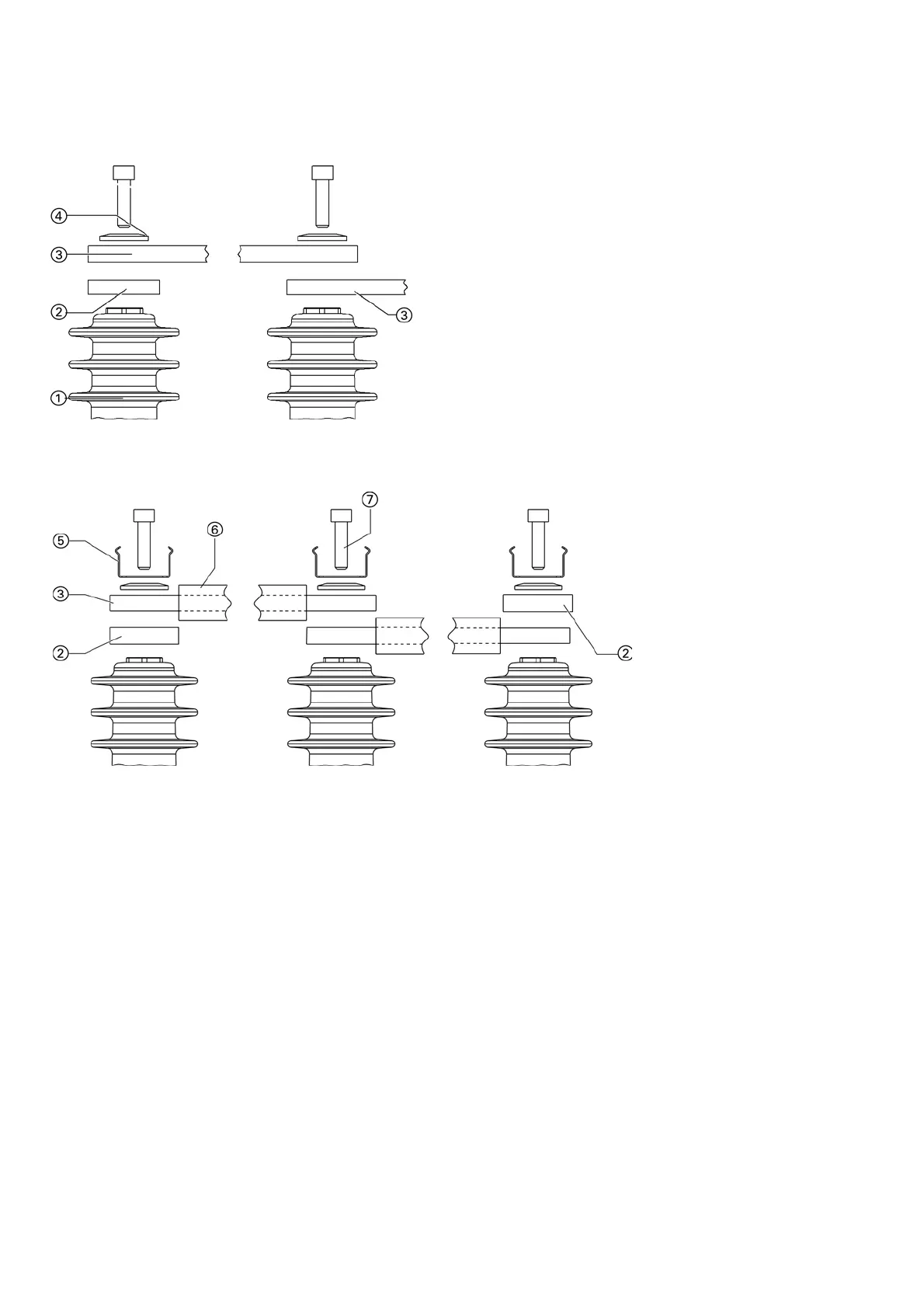

Fig. 40: Fastening bus bars
