21 Grounding of panels that do not have switching devices
Panels that have no switching devices:
• Cable panel CC
• Bus riser panel BR
• Metering panels MC, MT
• Fuse panel
Cable panels, bus riser panels or metering panels must be grounded via the grounding
devices of the panels allocated for this purpose or by means of grounding cables.
Grounding cables are not furnished as part of SIMOSEC switchgear. Grounding cables
are available from a number of suppliers, including W.H.Salisbury & Co. and A.B. Chance
(Hubbell Power Systems).
Grounding cables should be used in accordance with the instructions of the grounding
clamp manufacturer and in accordance with applicable regulatory requirements,
including those of OSHA.

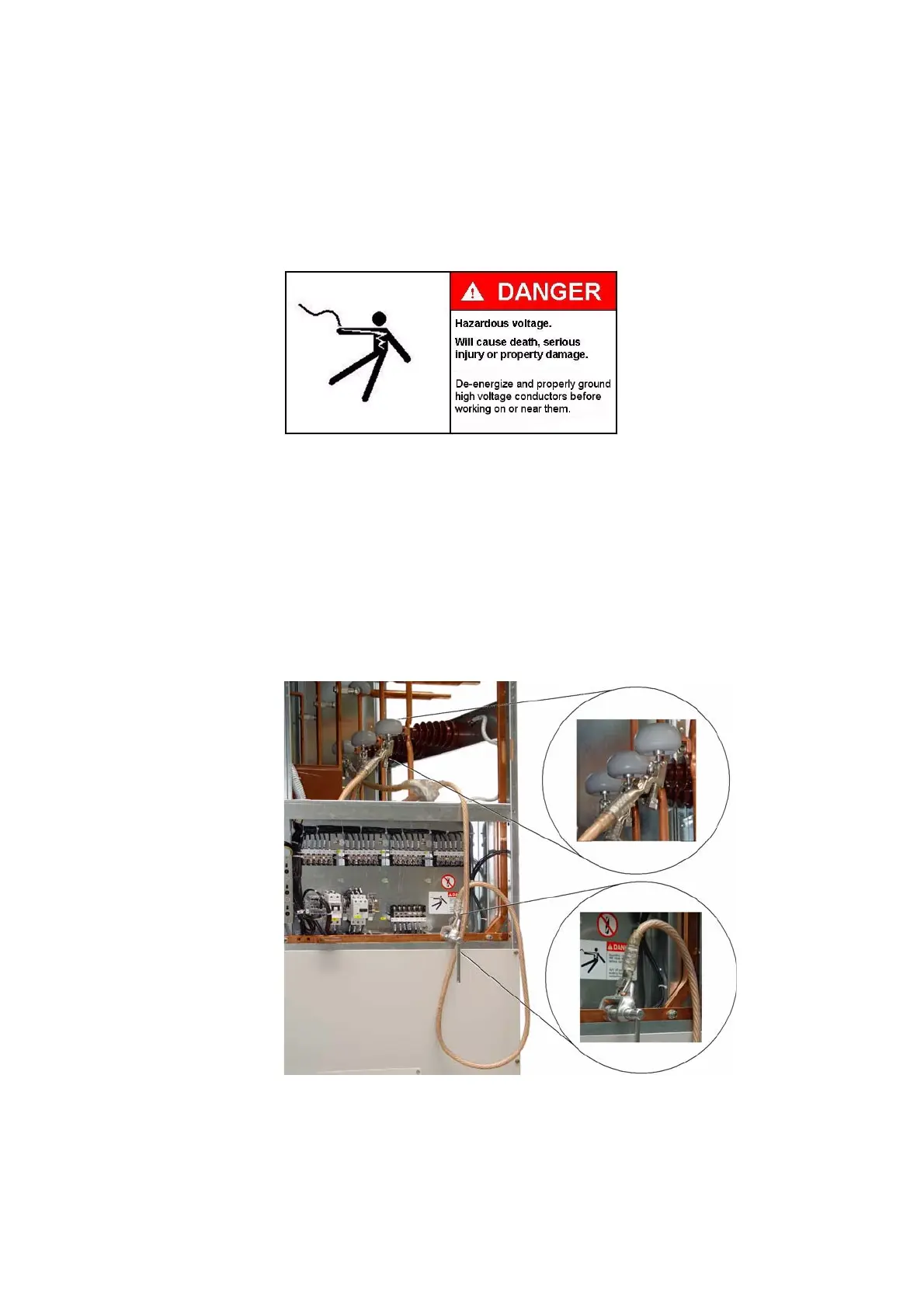

Fig. 68: Grounding of a metering panel using grounding cables (example)
