Installation
62 REVISION 02 * INSTALLATION SIMOSEC * 832-6063.0
13.5 Connecting fuse switch panel to high voltage
For the exact panel dimensions, such as the cable connection height, please refer to the
dimension drawing and arrangement diagram for the switchgear.
Connecting high voltage
cables
Ö Bolt terminated cable to the cable connection terminal and avoid undue strain on
bushing. For the tightening torques of the cable lugs / cable terminations, please
observe the manufacturer's instructions, however do not exceed 37 lbf·ft (50 Nm).

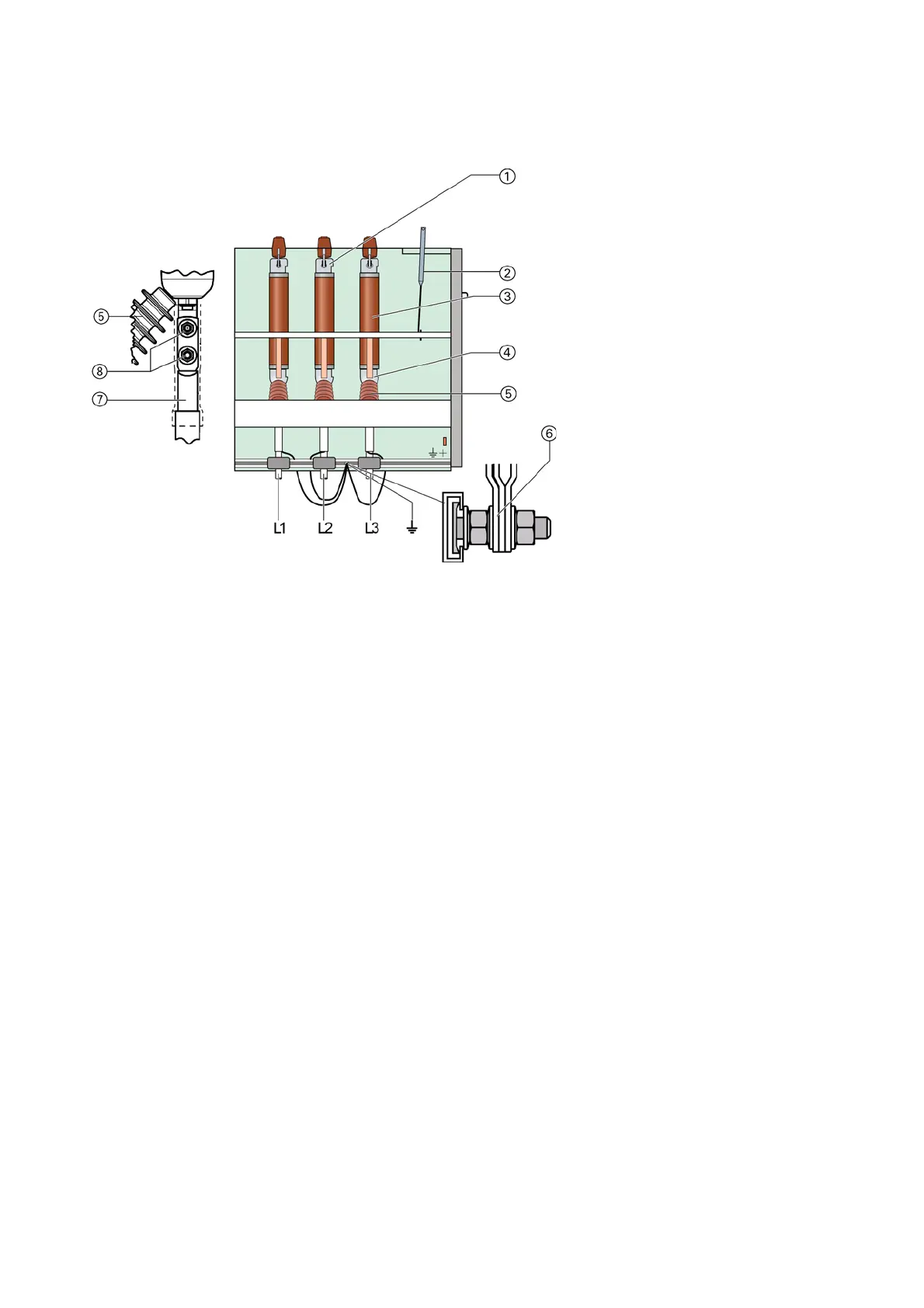

Fig. 50: Cable connection in fuse switch panel
a
Upper fuse contact
s
Discharge switch
d
HV HRC (current limiting) fuse
f
Second fuse contact
g
Post insulator
h
Grounding point of cable shields (alternatively,
connect to the ground bus bar)
j
Cable termination
k
Bolted joint at point of cable connection
