9.11 Cable terminations
Connection height
Principle of cable
connection

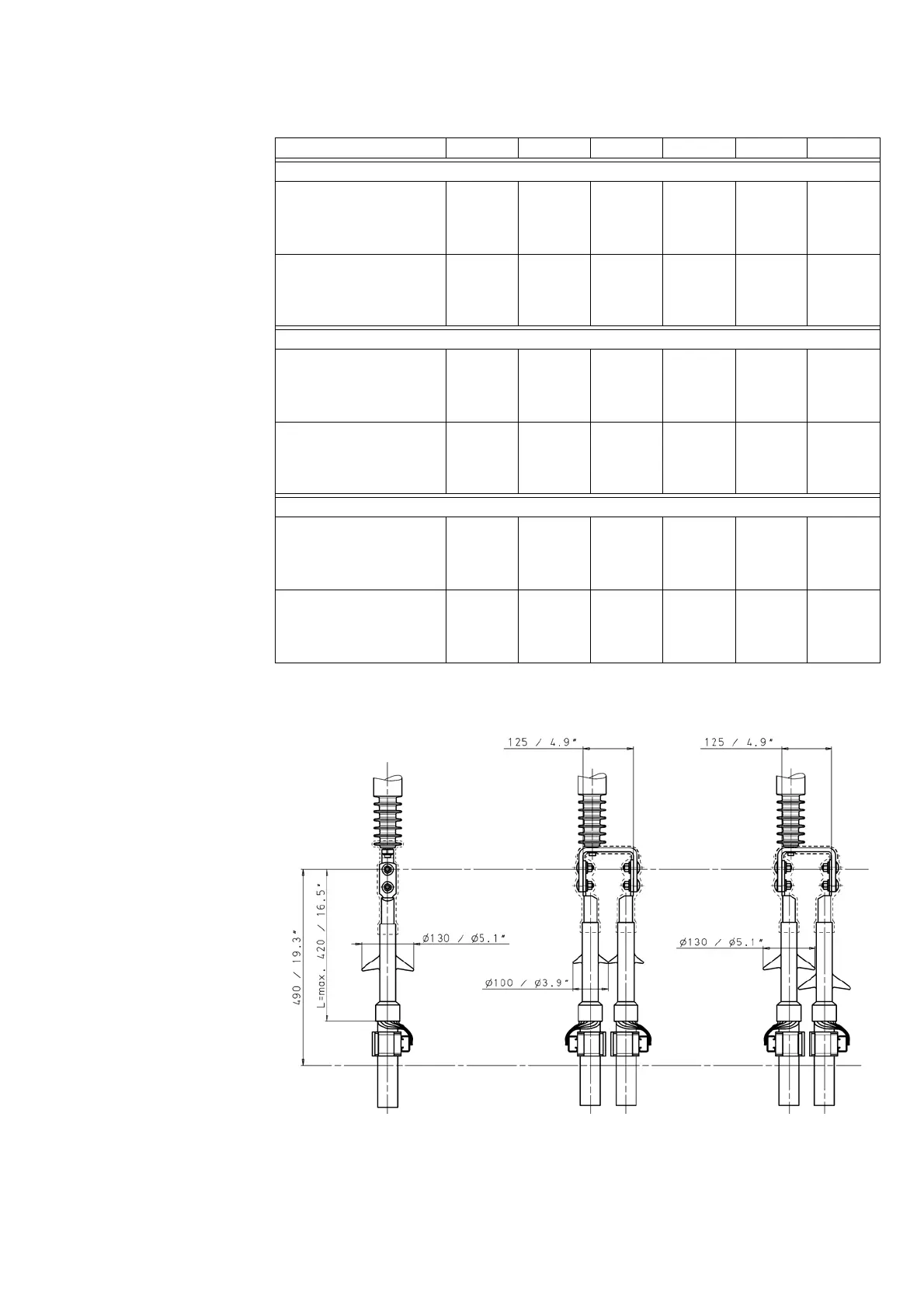

Fig. 27: Drawing of the principle of cable connections
Panel family CS1+2 FS1+2+3 FU1+2+3 CC1+2 CG1+2 MC3
Top cable entry
Main switch or vertical copper
bar in upper position (fuse
assembly in lower position)
490 mm /
19.3"
2550 mm /
100.4"
490 mm /
19.3"
2550 mm /
100.4"
490 mm /
19.3"
2550 mm /
100.4"
490 mm /
19.3"
2550 mm /
100.4"
490 mm /
19.3"
2550 mm /
100.4"
530 mm /
20.8"
2250 mm /
88.6"
Main switch or vertical copper
bar in lower position (fuse
assembly in upper position)
not available not available 490mm /
19.3"
2550mm /
100.4"
not available not available not available
Middle cable connection
to top 940 mm /
37"
2250 mm /
88.6"
not available 940 mm /
37"
2250 mm /
88.6"
940 mm /
37"
2250 mm /
88.6"
940 mm /
37"
2250 mm /
88.6"
not available
to bottom 1240 mm /
49"
2250 mm /
88.6"
not available 1240 mm /
49"
2250 mm /
88.6"
1240 mm /
49"
2250 mm /
88.6"
1240 mm /
49"
2250 mm /
88.6"
not available
Bottom cable enty
Main switch or vertical copper
bar in upper position (fuse
assembly in lower position)
not available not available 490mm /
19.3"
2250mm /
88.6"
not available not available not available
Main switch or vertical copper
bar in lower position (fuse
assembly in upper position)
490 mm /
19.3"
2250 mm /
88.6"
490 mm /
19.3"
2250 mm /
88.6"
not available 490 mm /
19.3"
2250 mm /
88.6"
490 mm /
19.3"
2250 mm /
88.6"
580 mm /
22.8"
2250 mm /
88.6"
For actual dimensions, please remark the dimension drawings.
