Maintenance
23.3 Removing the cover of the compartment for customer low voltage equipment
Removing the compartment cover
Ö Remove the screws that secure the compartment cover.
Ö Remove the compartment cover.

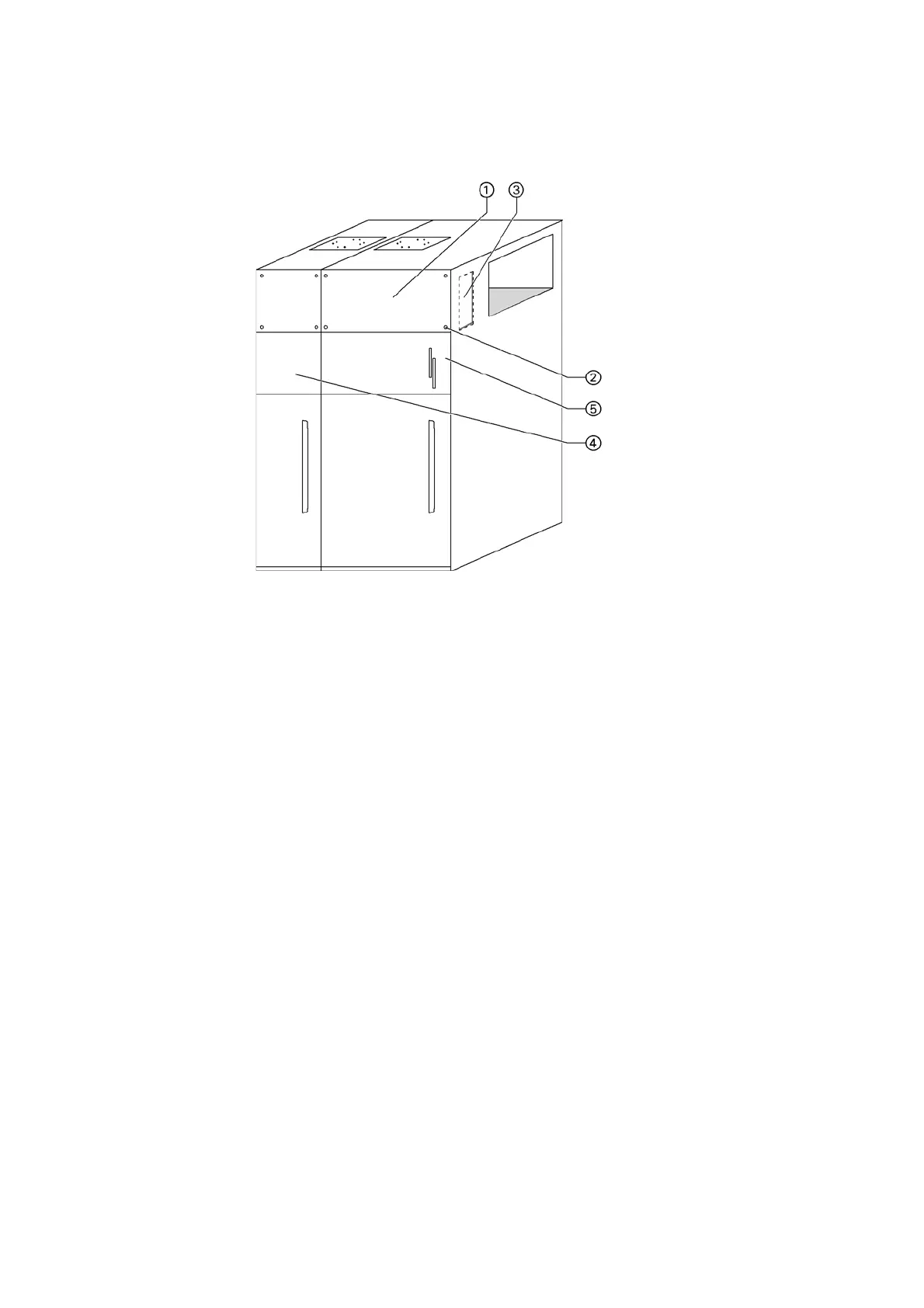

Fig 76: Access to the compartment for customer
low voltage equipment
a
Compartment cover
s
Screwed on cover
d
Compartment for customer low
voltage equipment
f
Control panel cover for a panel
without switching devices
g
Control panel cover for a panel
with switching devices
