832-6063.0 * DESCRIPTION SIMOSEC * REVISION 02 7
Description
Description
6Features
SIMOSEC is an extendable, three-phase, metal-enclosed indoor switchgear.
SIMOSEC switchgear is used for power distribution in systems up to 27.6 kV:
• for customer substations, distribution substations and switching substations of utilities
• in public buildings such as high-rise buildings, airports, hospitals, sports arenas
• in industrial plants.
The ratings of your SIMOSEC panels are provided on the rating plates.
The following systems
are used:
• Individual panels, for free combination and extension
• Three-pole primary enclosure
• Phases arranged one behind the other
• Bus bar system at top or bottom, as needed for the application
• Air-insulated bus bar and cable connection system for conventional cable terminations
• Three-position switch-disconnector, metal-enclosed, with air-insulated primary termi-
nals and gas-insulated switching functions (maintenance-free quenching system)
• Switching devices in stainless-steel SF
6
-filled vessel, without seals, with welded-in
bushings (sealed for life)
• Metal-enclosed panel design
• Panel heating for severe climatic / ambient conditions to prevent condensation
• Three-phase current transformer (option), factory-assembled on the feeder bushings
• Integrated low voltage compartment for installation of:
- terminals
- MCBs
- pushbuttons
- protection devices
- low voltage cables.

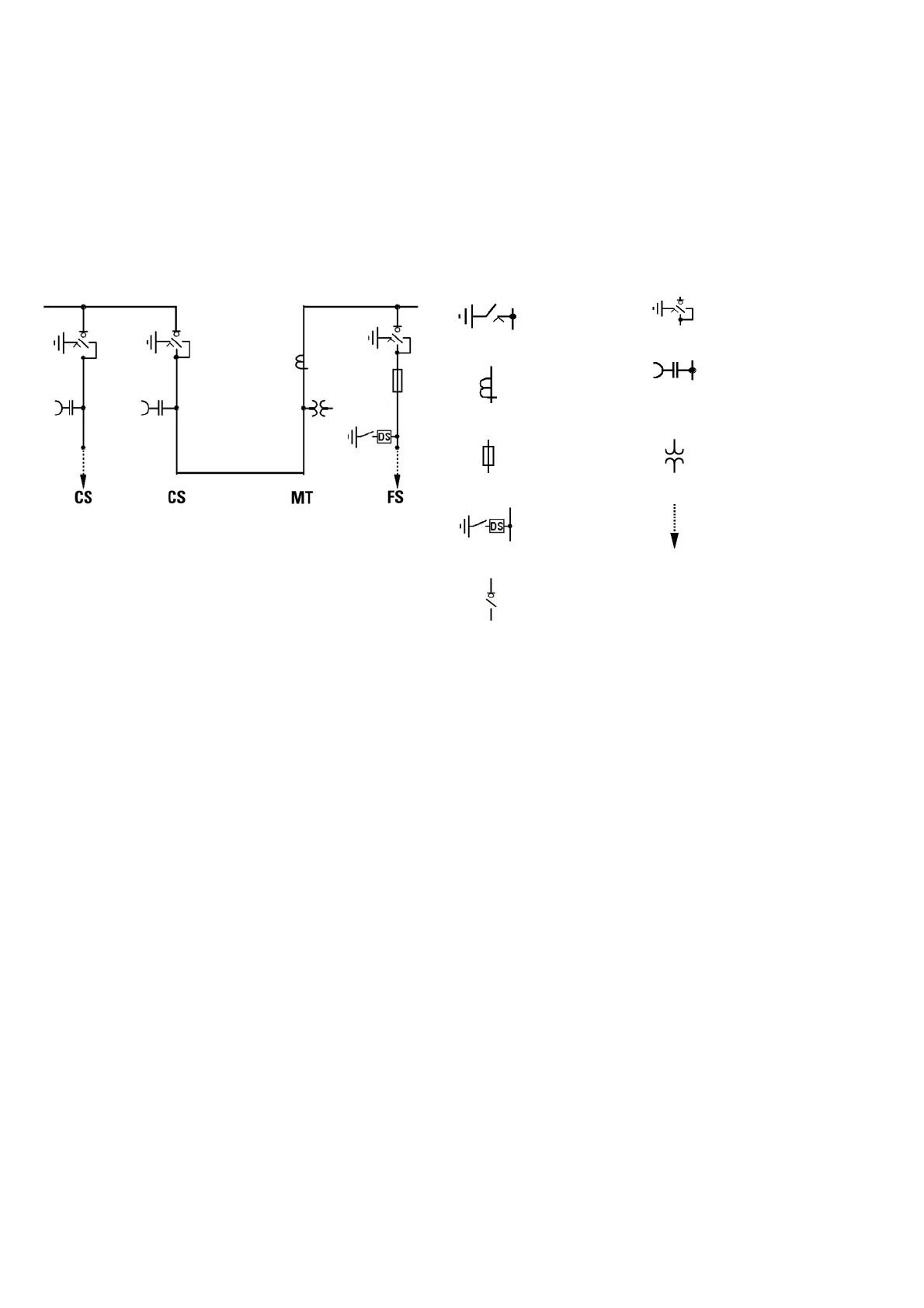

Fig. 1: Single line diagram of typical SIMOSEC switch-
gear
Make-proof
grounding switch
Three-position
switch-disconnector
Current transformer Capacitive voltage
detection system
HV HRC (current
limiting) fuse
Voltage transformer
Discharge Switch
1.6 kA/1 sec
Cable connection
Two-position switch
CS Cable switch panel
MT Metering panel
FS Fuse switch panel
