832-6063.0 * INSTALLATION SIMOSEC * REVISION 02 47
Installation
Joining panels Materials to join the panels are furnished with the switchgear.
Ö Bolt panels together, without distorting panels.
Ö Verify horizontal and vertical alignment of panels.
Joining rear walls In case of free-standing (i.e., installed with an aisle behind the switchgear) arrangement,
the rear walls of the panels must be joined with connecting links.
Ö Bolt the connecting link onto the rear walls.

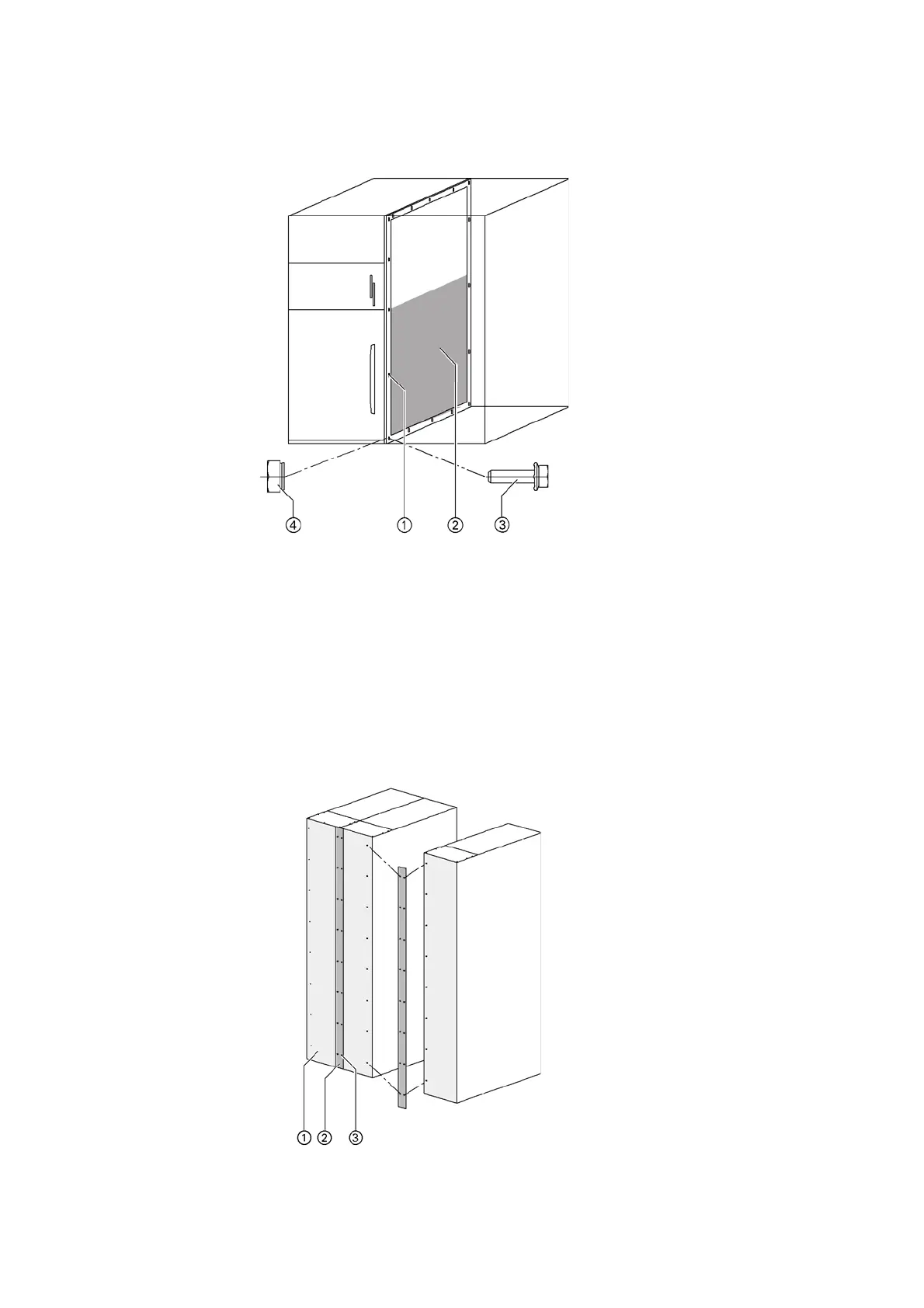

Fig. 37: Bolted joint of panels
a
Bolted joints at the panel frame
s
Partition wall
d
Bolt with contact washer
f
Pressnut
Fig. 38: Joining rear walls (for free-standing arrangement
only)
a
Rear wall
s
Connecting link
d
Bolting point
