Operation
78 REVISION 02 * OPERATION SIMOSEC* 832-6063.0
Ö Insert operating lever (with red grip) onto operating shaft of operating mechanism.
Ö Move operating lever down to the "GROUNDED" position.
Verify the position of the switch through the viewport.
GROUNDED position in
fuse panel:
Ö Verify that the discharge switch is closed - i.e., the movable grounding contact
(option) is touching the second fuse contact - through the inspection window
of the cable compartment cover.

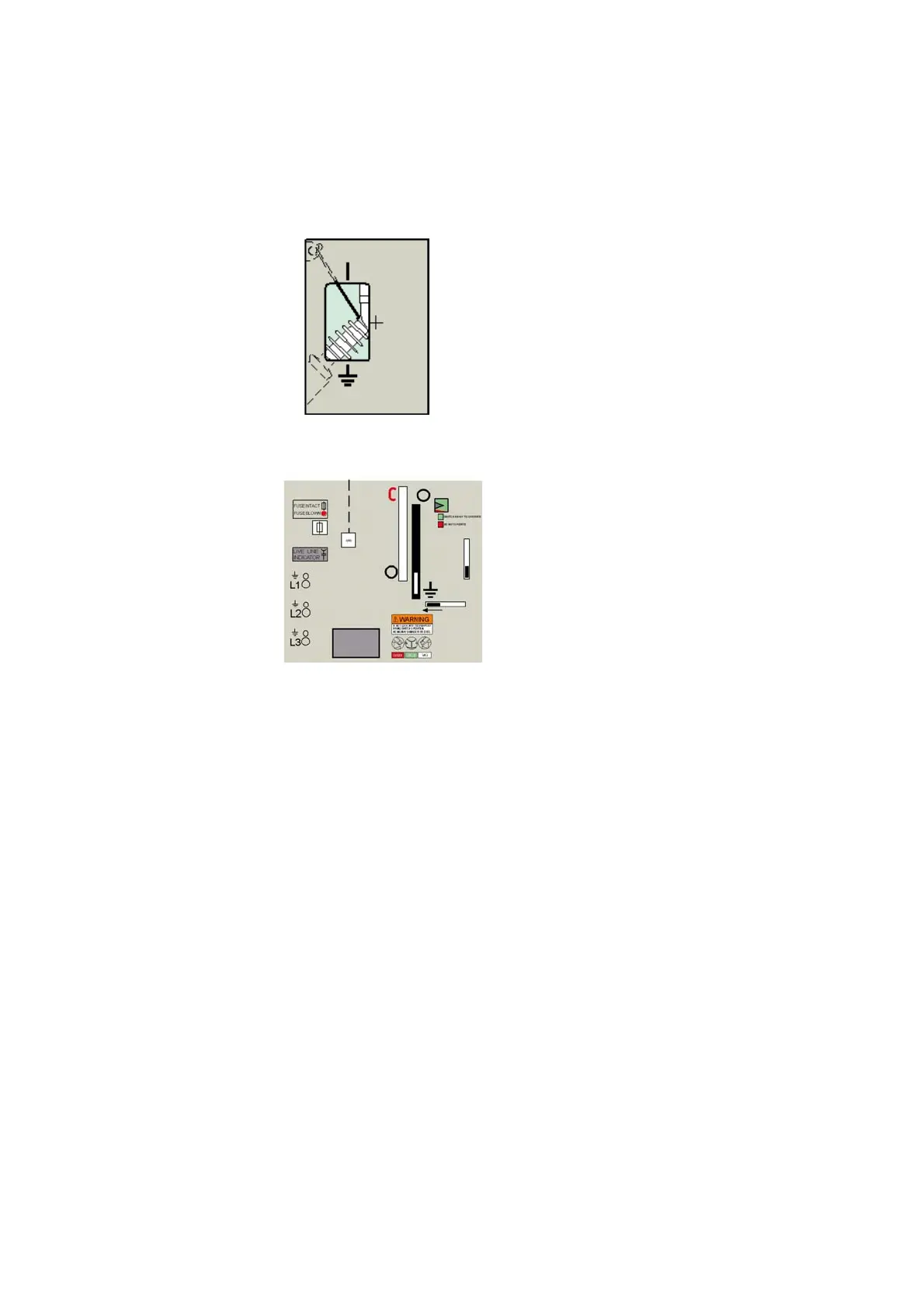

Position of discharging contacts with discharge switch in ‘‘GROUNDED“ position.
Ö Remove operating lever.
Ö Install padlock at center position of control gate of three-position switch (if desired).
Ö Stow away operating lever.
The three-position switch is protected against unauthorized use, if the control gate is
padlocked.
