Getting Started
40 A5E37208904-003, 04/2017
4
Connecting
4.1
System connection
The following illustrations show the examples of the SINAMICS V90 PN servo system connection.

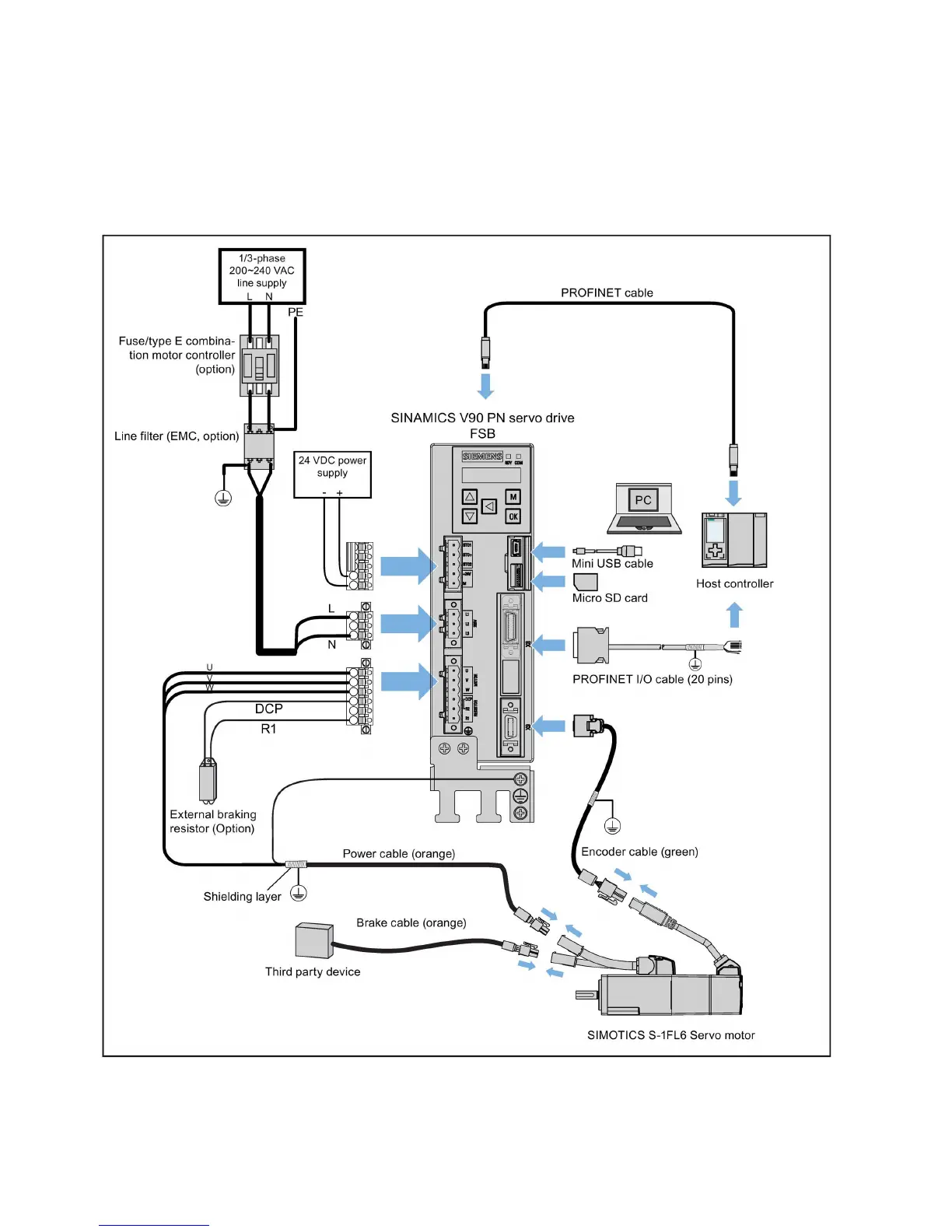

Connection diagram for FSB on the single phase power network:
