Siemens SIMOTICS S-1FL6 Compact Operating Instructions

Getting Started
A5E37208904-003, 04/2017
9
2
General information
The SINAMICS V90 drives with the PROFINET interface (referred to as SINAMICS V90 PN) are available in two variants,
400 V variant and 200 V variant.
The 200 V variant is available in three frame sizes: FSB, FSC, and FSD. Frame sizes B, and C are used on the single phase
or three phase power network while frame size D is used on the three phase power network only.
The 400 V variant is available in four frame sizes: FSAA, FSA, FSB, and FSC. All the frame sizes are used on three phase
power network only.
2.1
Deliverables
2.1.1
Drive components

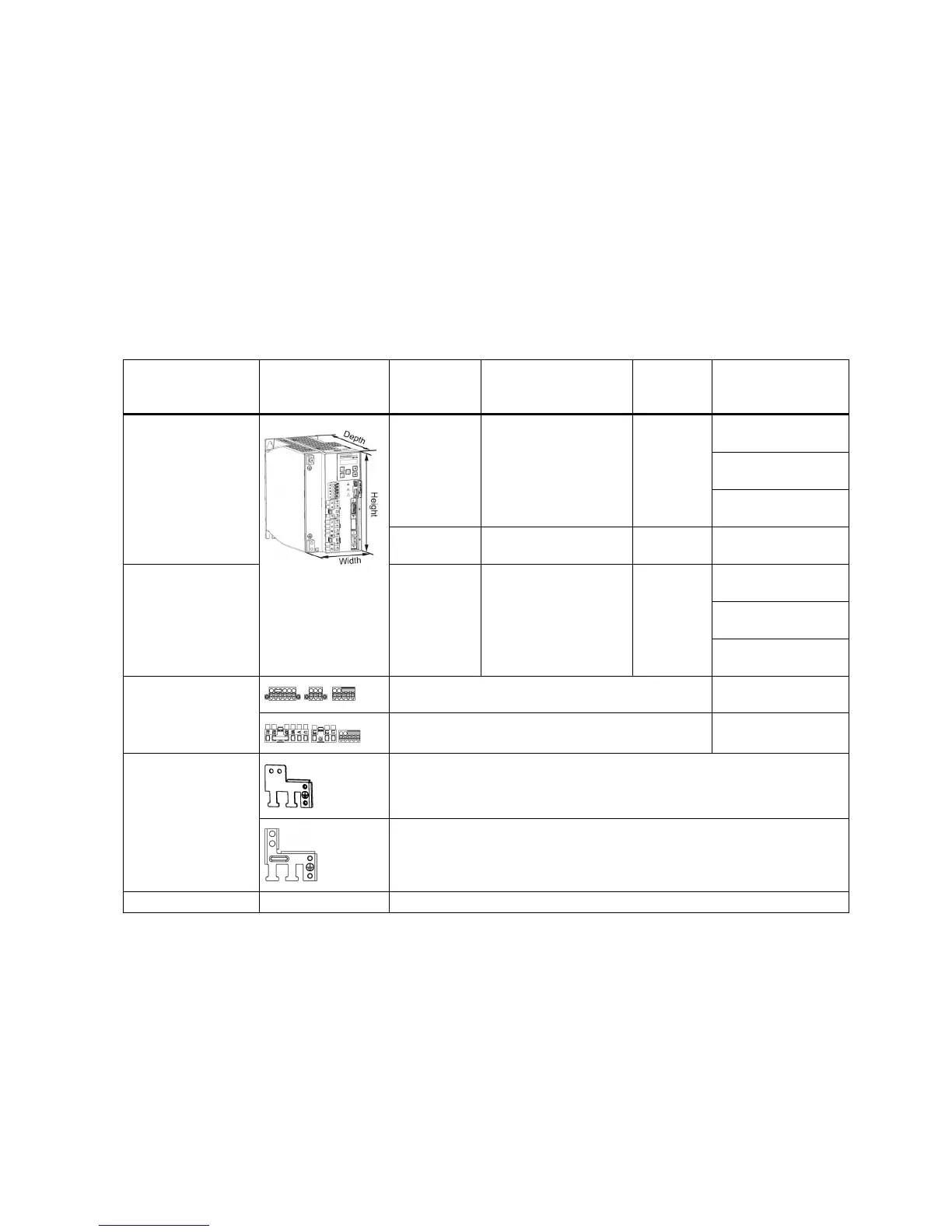

Components in the SINAMICS V90 PN 200 V variant drive package
Component
Illustration
Rated power
(kW)
Outline dimension
(Width x Height x
Depth, mm)
Frame size
Article number
SINAMICS V90 PN,
single/three-phase,
200 V
0.1/0.2/0.4 55 x 170 x 170 FSB 6SL3210-5FB10-
1UF0
6SL3210-5FB10-
2UF0
6SL3210-5FB10-
4UF1
0.75 80 x 170 x 195 FSC 6SL3210-5FB10-
8UF0
SINAMICS V90 PN,
three-phase, 200 V
1.0/1.5/2.0 95 x 170 x 195 FSD 6SL3210-5FB11-
0UF1
6SL3210-5FB11-
5UF0
6SL3210-5FB12-
0UF0
Connectors
For FSB 6SL3200-0WT02-
0AA0
For FSC and FSD 6SL3200-0WT03-
0AA0
Shielding plate
For FSB
For FSC and FSD
User documentation
Information Guide
English-Chinese bilingual version
