Siemens SIMOTICS S-1FL6 Compact Operating Instructions

Getting Started
A5E37208904-003, 04/2017
47

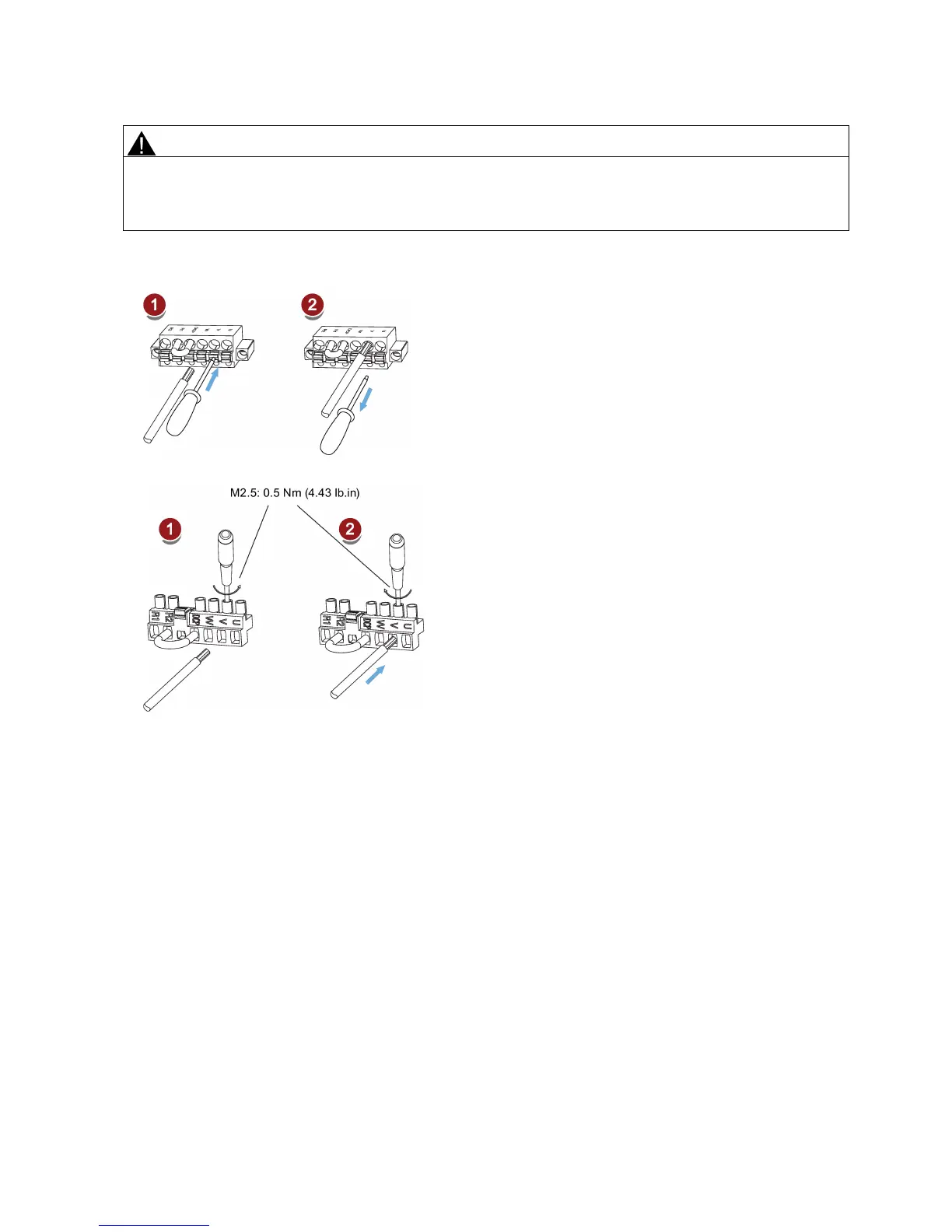

Attaching the motor power cable
CAUTION
Risk of injury due to improper cable connection
When attaching the motor power cable to a
motor power connector that has not been fixed on the drive, you can injure your
fingers.
•
Make sure you first fix the motor power connector on the drive, and then attach the cable to the connector.
200 V variant
● For FSB
● For FSC and FSD
400 V variant
● For FSAA and FSA
You can attach the motor power cable with the same method for 200 V variant drives of frame sizes FSC and FSD.
● For FSB and FSC
The FSB and FSC servo drives are equipped with barrier terminals for motor power connection. You can fix the motor
power cable on the servo drives by using the M4 screws with a tightening torque of 2.25 Nm (19.91 lb.in).
