Siemens SIMOTICS S-1FL6 - Page 53

Getting Started
A5E37208904-003, 04/2017
53

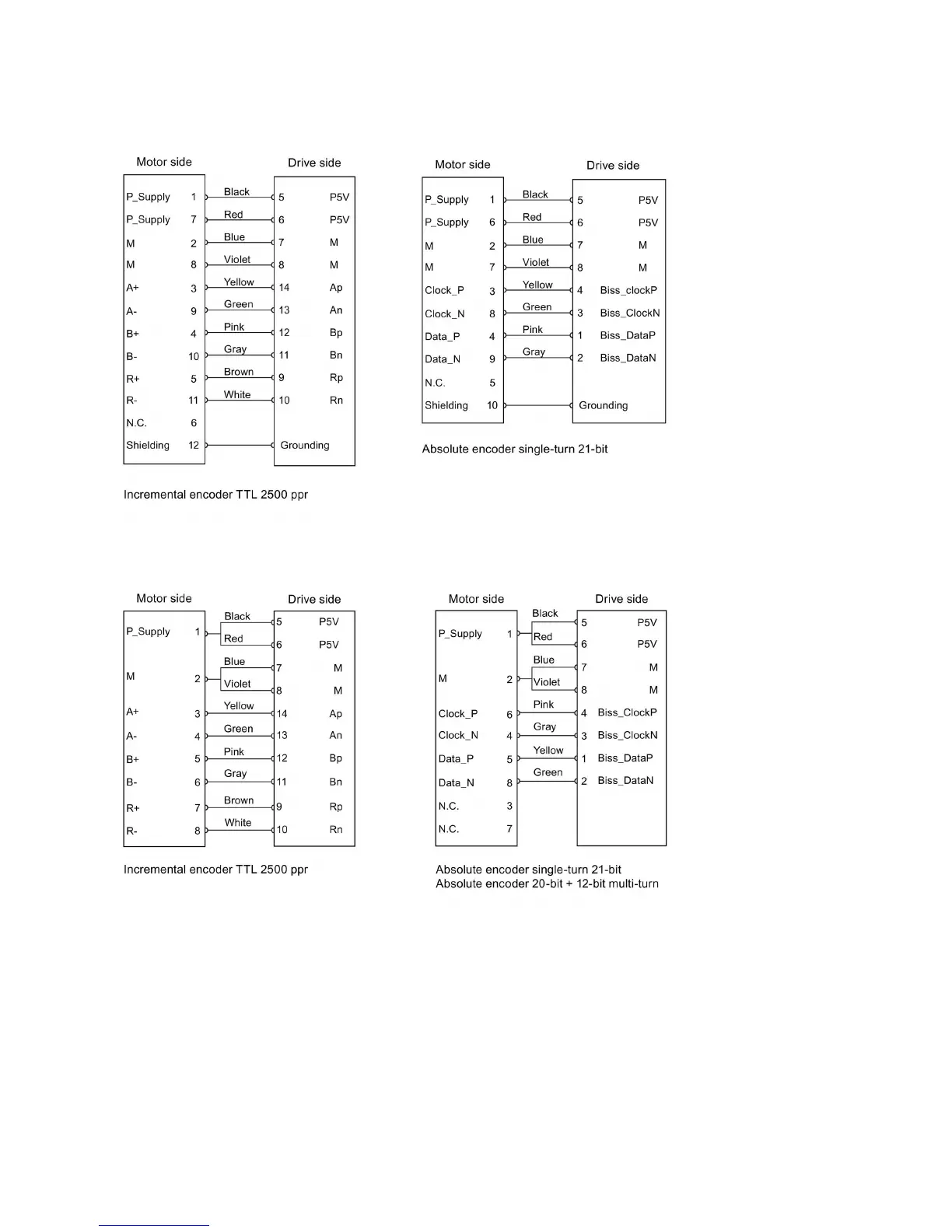

Wiring
Low inertia motor, shaft height: 20 mm, 30 mm and 40 mm
Low inertia motor, shaft height: 50 mm
High inertia motor, shaft height: 45 mm, 65 mm, and 90 mm
