Mechanical mounting
6.5 Mounting the motor spindle
SIMOTICS M-1FE2 built-in motors
130 Hardware Installation Manual, 04/2020, A5E50074509B AA

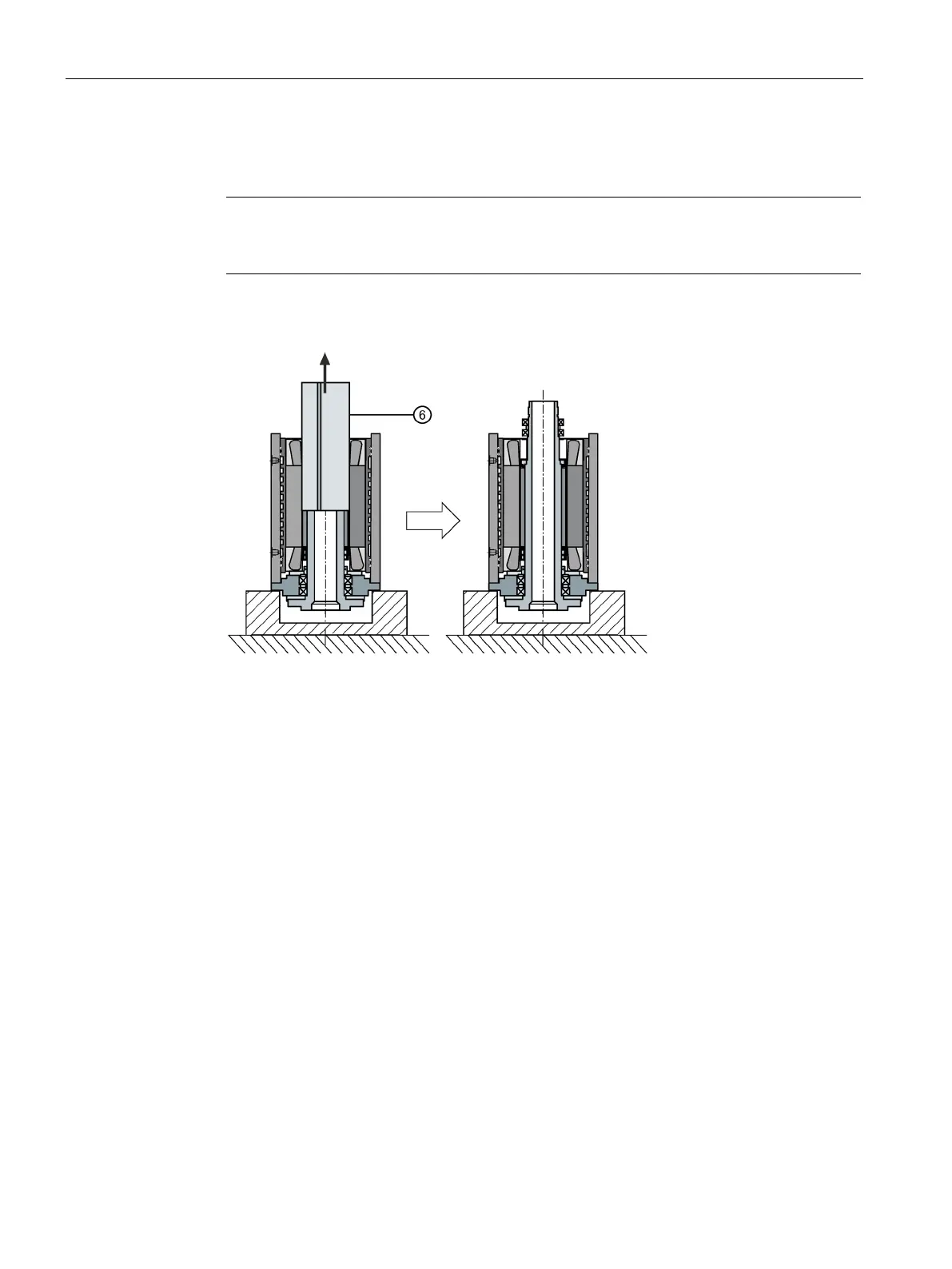

4. Using the hoisting gear, ease the spindle shaft with rotor core ① slowly and carefully into
the spindle housing with the stator core
②.
Note
Depending upon t
he relative position and the weight of the spindle shaft, an additional
axial mounting force of about 300
N may be required.
5. Screw down the end shield of the spindle shaft using the screws ⑦.
6. Rotate the preassembled motor spindle through 180°.
6
Assembly film
