Siemens SIMOTICS Series Hardware Installation Manual

Connection
7.2 Electrical connection
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
161

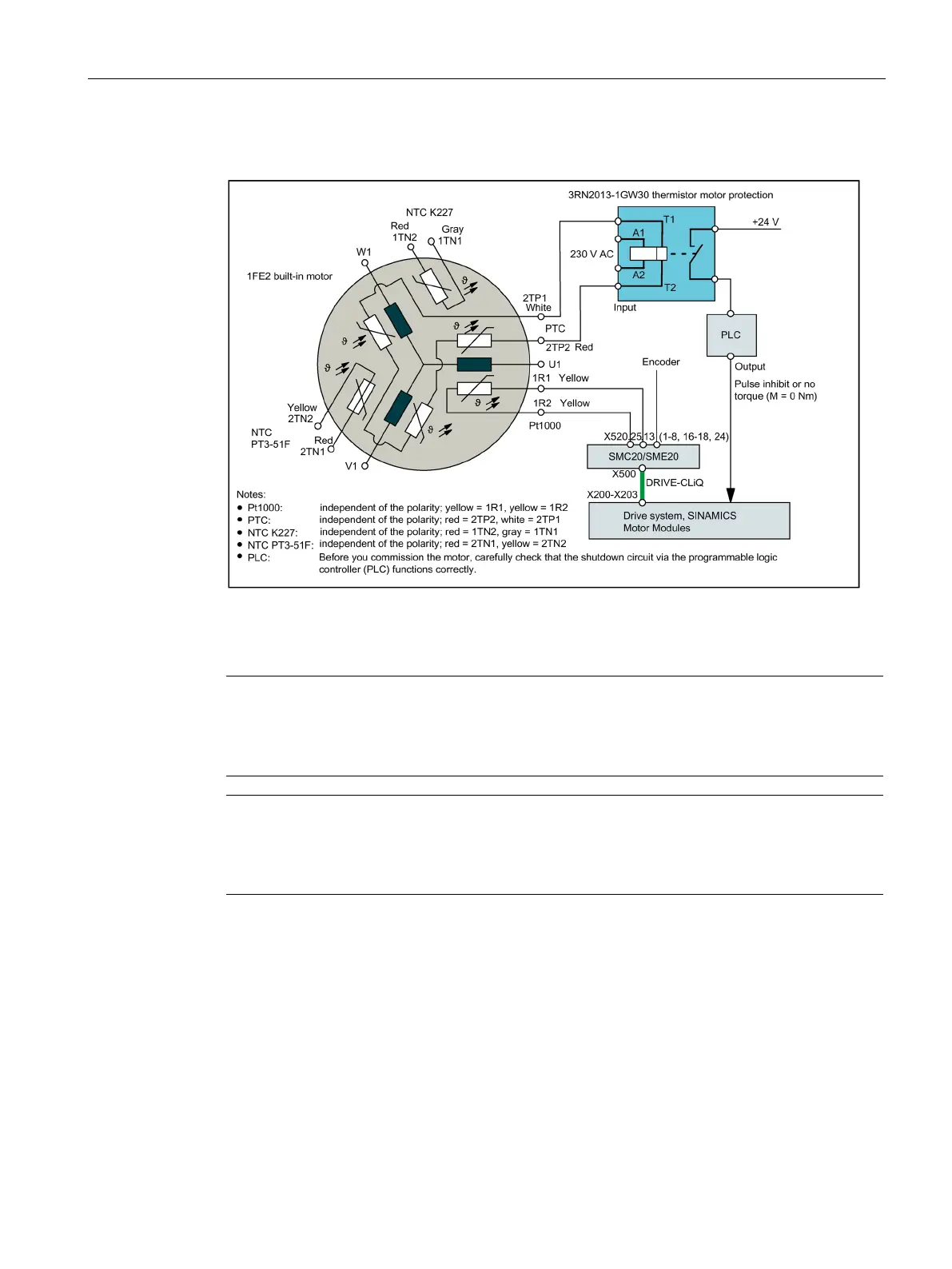

Connecting the PTC via thermistor motor protection 3RN2013-1GW30, Pt1000 to SMC20 or SME20
Figure 7-14 Connecting the PTC via thermistor motor protection 3RN2013-1GW30, Pt1000 to
SMC20 or SME20
Note
SMC20
Additional information about connecting
-up and operating the SMC20 is provided in the
SINAMICS Control Unit Manual and supplementary system component documentation.
Note
SME20
Additional in
formation about connecting-up and operating the SME20 is provided in the
SINAMICS Control Unit Manual and suppl
ementary system component documentation.
