Connection
7.2 Electrical connection
SIMOTICS M-1FE2 built-in motors
162 Hardware Installation Manual, 04/2020, A5E50074509B AA
Connecting the PTC via thermistor motor protection 3RN2013-1GW30, Pt1000 without SMC/SME,
directly to the drive system

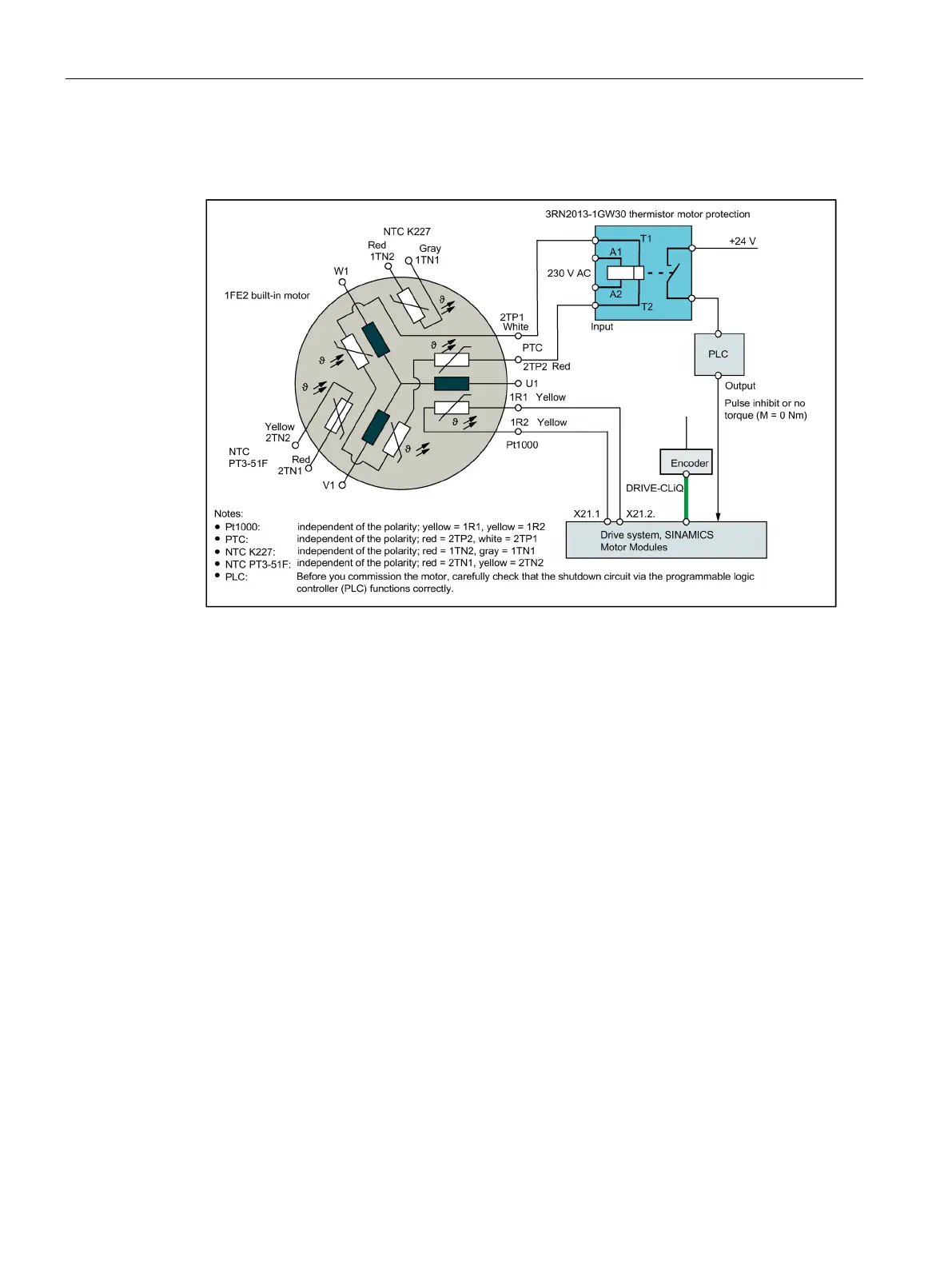

Figure 7-15 Connecting the PTC via thermistor motor protection 3RN2013-1GW30, Pt1000 directly to
the drive system
