Connection
7.2 Electrical connection
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
163
Connecting the PTC and Pt1000 to SME120

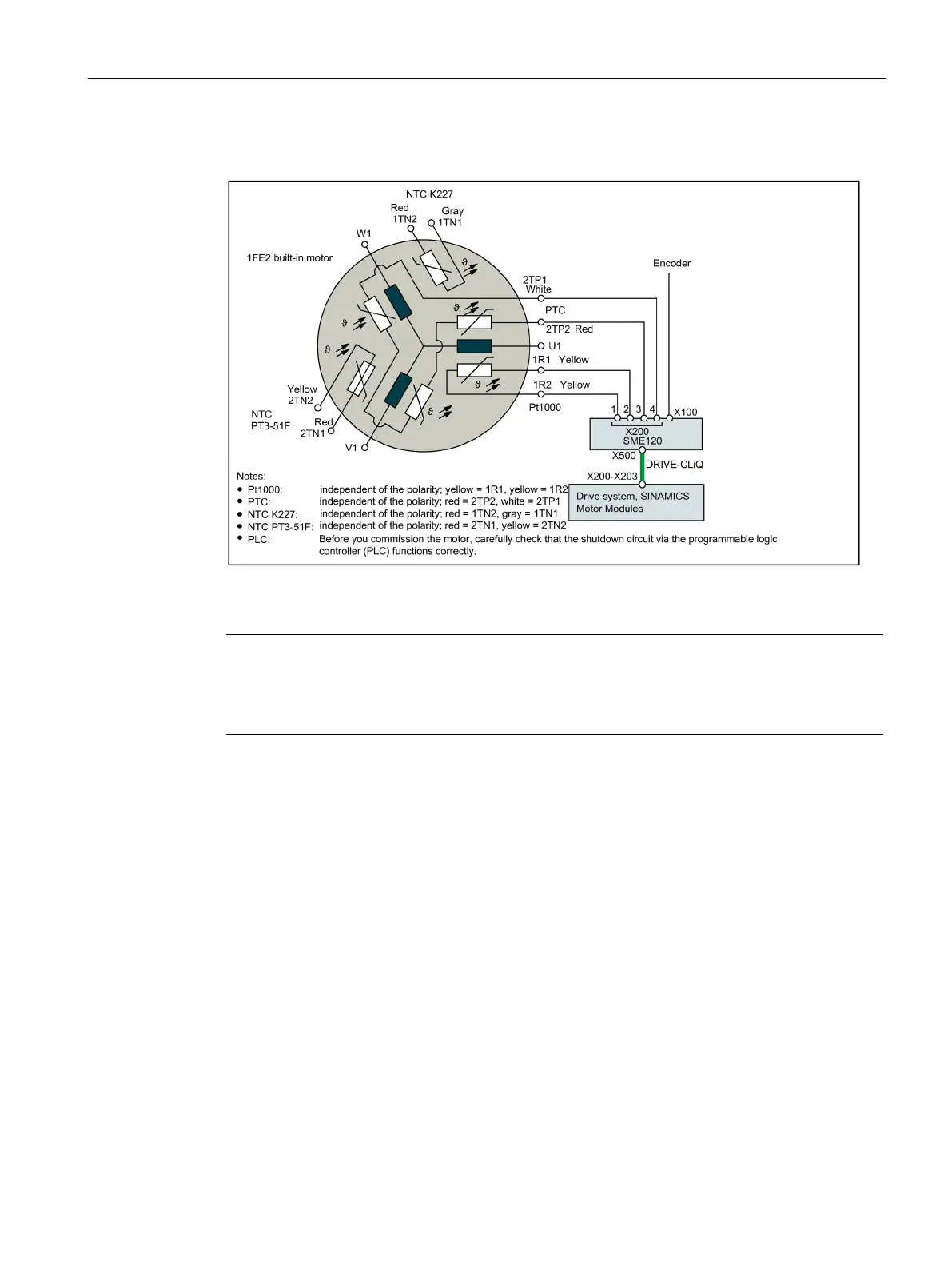

Figure 7-16 Connecting the PTC and Pt1000 to SME120
Note
SME120
Additio
nal information about connecting-up and operating the SME120 is provided in the
SINAMICS Control Unit Manual and supplementary system component documentation.

Siemens SIMOTICS Series Specifications

General

Product brand name	SIEMENS
Product designation	SIMOTICS
Efficiency Class	IE1, IE2, IE3, IE4
Ambient Temperature	+60°C
Altitude	Up to 4000 m
Frame Size	63 to 355
Protection Class	IP55, IP56, IP65
