Siemens SIMOTICS Series Hardware Installation Manual

Description
3.3 Technical features and system requirements for built-in motors
SIMOTICS M-1FE2 built-in motors
30 Hardware Installation Manual, 04/2020, A5E50074509B AA

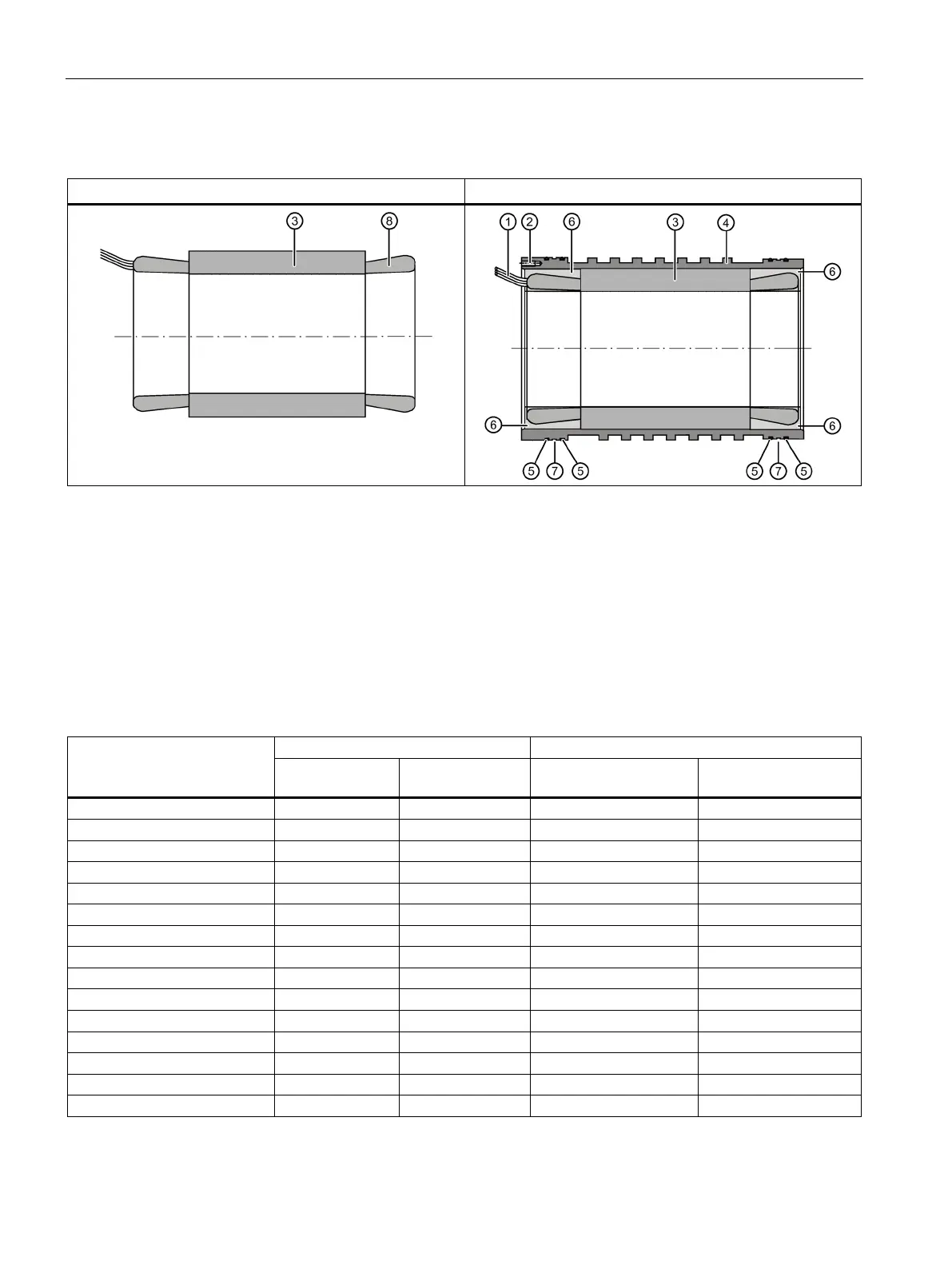

Stator design
Stator without cooling jacket (standard version)
Stator with cooling jacket (on request)
Stator core in cross-section
1 Cables for power connection and temperature
sensors
5 O-ring seal
2
Thread for axial fixation
6
Winding overhang
3
Stator core
7
Leakage channel
4
Cooling jacket with cooling duct
8
Impregnated winding
Rotor weights and moments of inertia for the motor in synchronous version
Table 3- 2
Motor article number
Rotor
Stator
J with sleeve
in kg•m
2
Mass with sleeve in
kg
Mass without cooling jacket
in kg
Mass with cooling jacket
in kg
1FE2182-8LN☐☐-☐CC0
0.75
60
65
110
1FE2182-8LH☐☐-☐CC0
0.75
60
65
110
1FE2183-8LN☐☐-☐CC0
0.9
70
80
130
1FE2183-8LH☐☐-☐CC0
0.9
70
80
130
1FE2184-8LN☐☐-☐CC0
1.05
80
95
150
1FE2184-8LK☐☐-☐CC0
1.05
80
95
150
1FE2184-8LH☐☐-☐CC0
1.05
80
95
150
1FE2185-8LN☐☐-☐CC0
1.2
90
110
170
1FE2185-8LL☐☐-☐CC0
1.2
90
110
170
1FE2185-8LH☐☐-☐CC0
1.2
90
110
170
1FE2186-8LN☐☐-☐CC0
1.35
105
125
190
1FE2186-8LM☐☐-☐CC0
1.35
105
125
190
1FE2186-8LH☐☐-☐CC0
1.35
105
125
190
1FE2187-8LN☐☐-☐CC0
1.49
115
135
210
1FE2187-8LH☐☐-☐CC0
1.49
115
135
210
The mass values are rounded.
