Siemens SIMOTICS Series Hardware Installation Manual

Description
3.3 Technical features and system requirements for built-in motors
SIMOTICS M-1FE2 built-in motors
36 Hardware Installation Manual, 04/2020, A5E50074509B AA

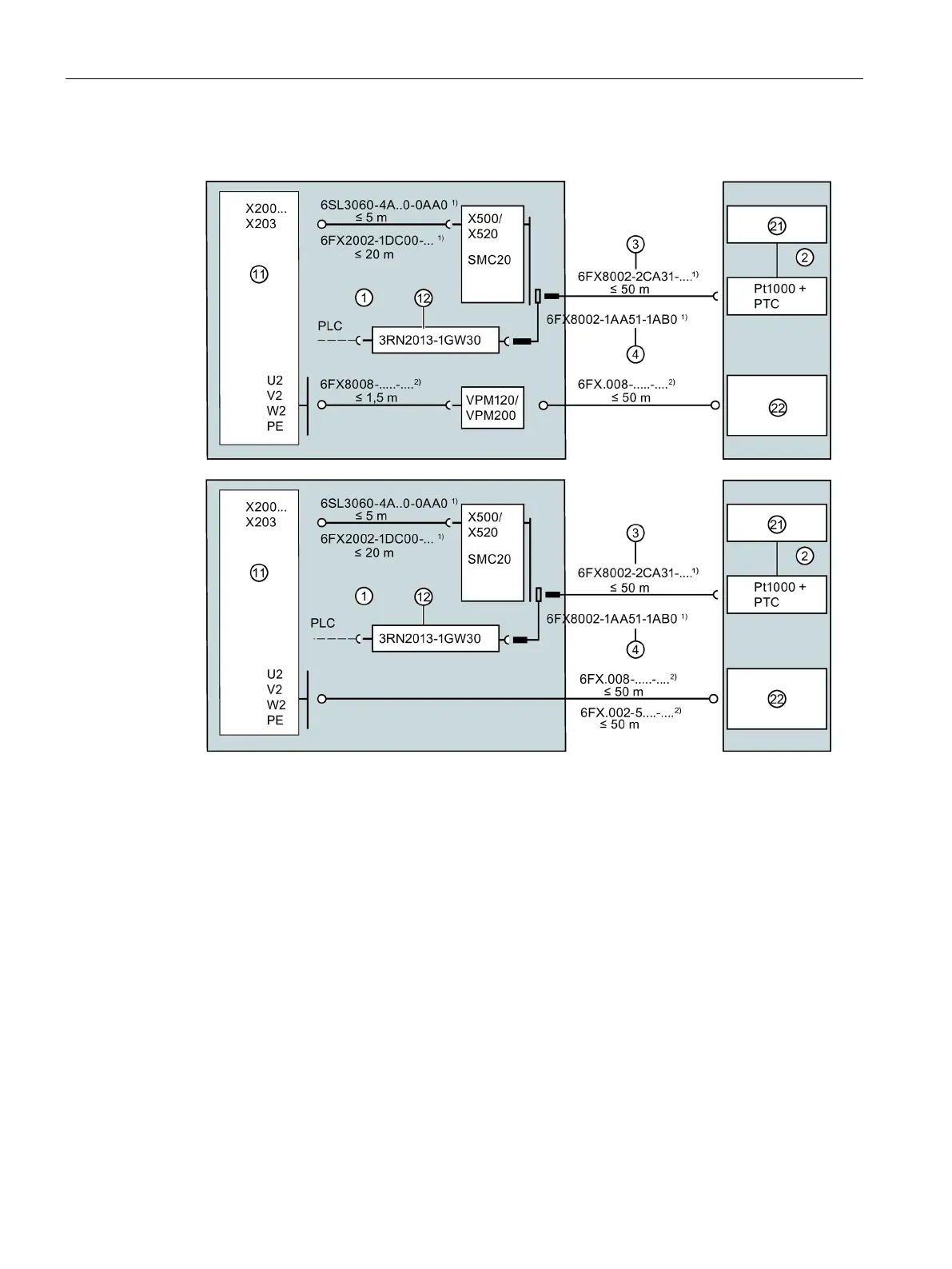

Motor with full protection, integrated into the system via SMC20, with or without VPM
1)
Article numbers for prefabricated
MOTION-CONNECT signal cables, M23
connector size
2)
Article numbers for prefabricated
MOTION-CONNECT power cables
1 Control cabinet 21 Incremental encoder sin/cos 1 Vpp or EnDat
2.1 absolute encoder
11 SINAMICS S120 Motor Modules, Booksize
format, DRIVE CLiQ communication via
SMC20
22 1FE2 winding, connection via terminal box
12 Tripping unit 3 Signal cable for encoder and temperature
sensor,
17-pin M23 round connector
2 1FE2 built-in motor 4 Signal cable for PTC via tripping unit
