Description
3.3 Technical features and system requirements for built-in motors
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
49
Winding in a star connection
The 1FE2☐☐☐-☐☐☐☐☐-☐☐☐1 motors are designed internally in a permanent star
connection. The electrical connection is made via 3 power cables: U1, V1, W1.

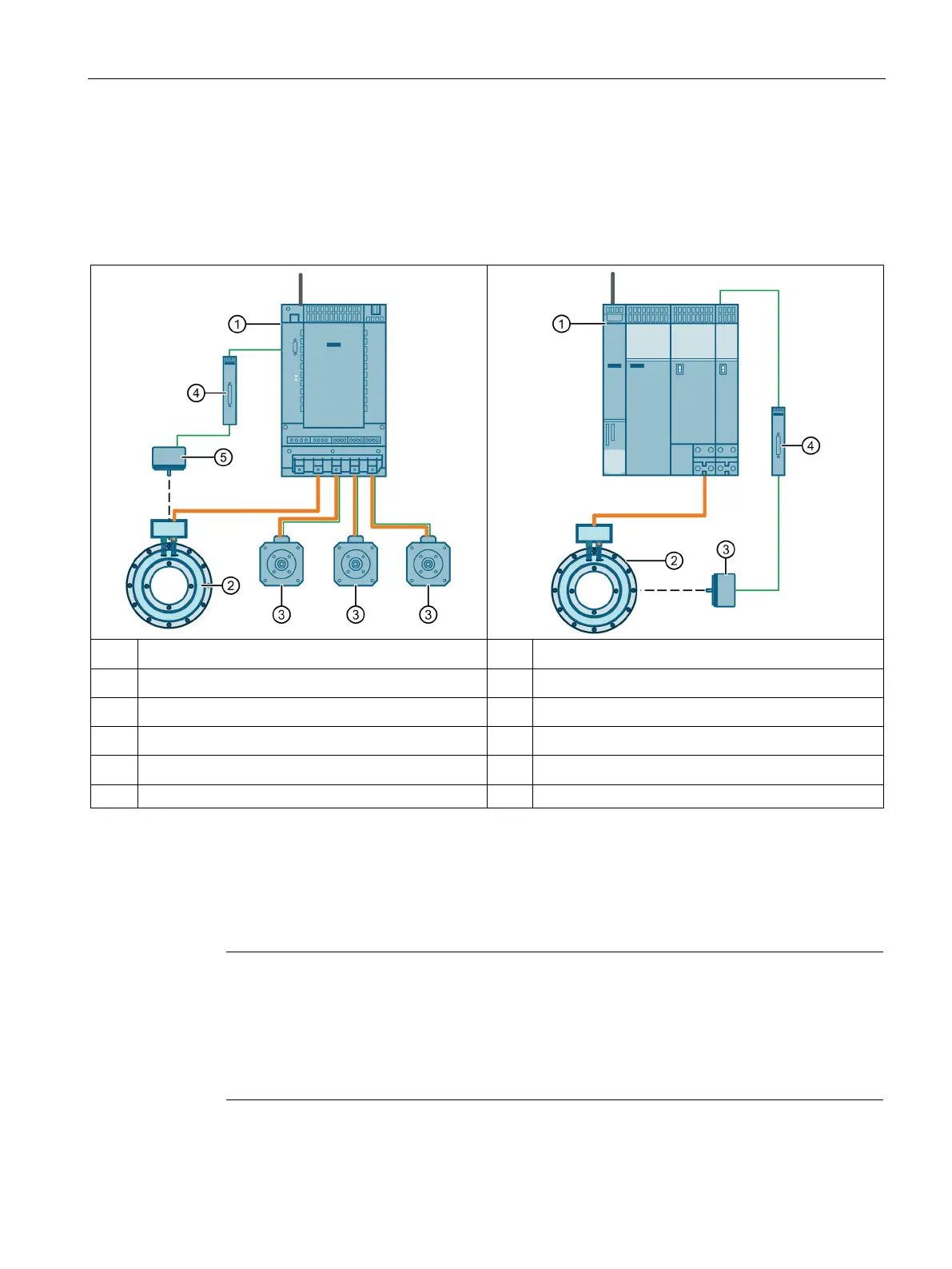

Table 3- 3 1FE2 in asynchronous version in star connection to SINAMICS S120 Combi or Booksize
①
SINAMICS S120 Combi Power Module
①
SINAMICS S120 Booksize Power Module
②
1FE2 in asynchronous version
②
1FE2 in asynchronous version
③
Servo motor
③
Encoder
④
SMC20
④
SMC20
⑤
Encoder
Winding with star-delta changeover
The 1FE2☐☐☐-☐☐☐☐☐-☐☐☐2 motors have two cables per phase (U1-U2, V1-V2, W1-W2).
A star/delta changeover takes place by means of an external contactor circuit or as a fixed
configuration in the terminal box.
Note
Star-delta changeover
We recommend SIRIUS 3RT power contactors. No
tes on the selection and dimensioning
can be found in Catalog IC 10.
Note that you must make the star
-delta changeover without current, i.e. when the converter
is pulse inhibited.
