Siemens SIMOTICS Series Hardware Installation Manual

Description
3.3 Technical features and system requirements for built-in motors
SIMOTICS M-1FE2 built-in motors
50 Hardware Installation Manual, 04/2020, A5E50074509B AA

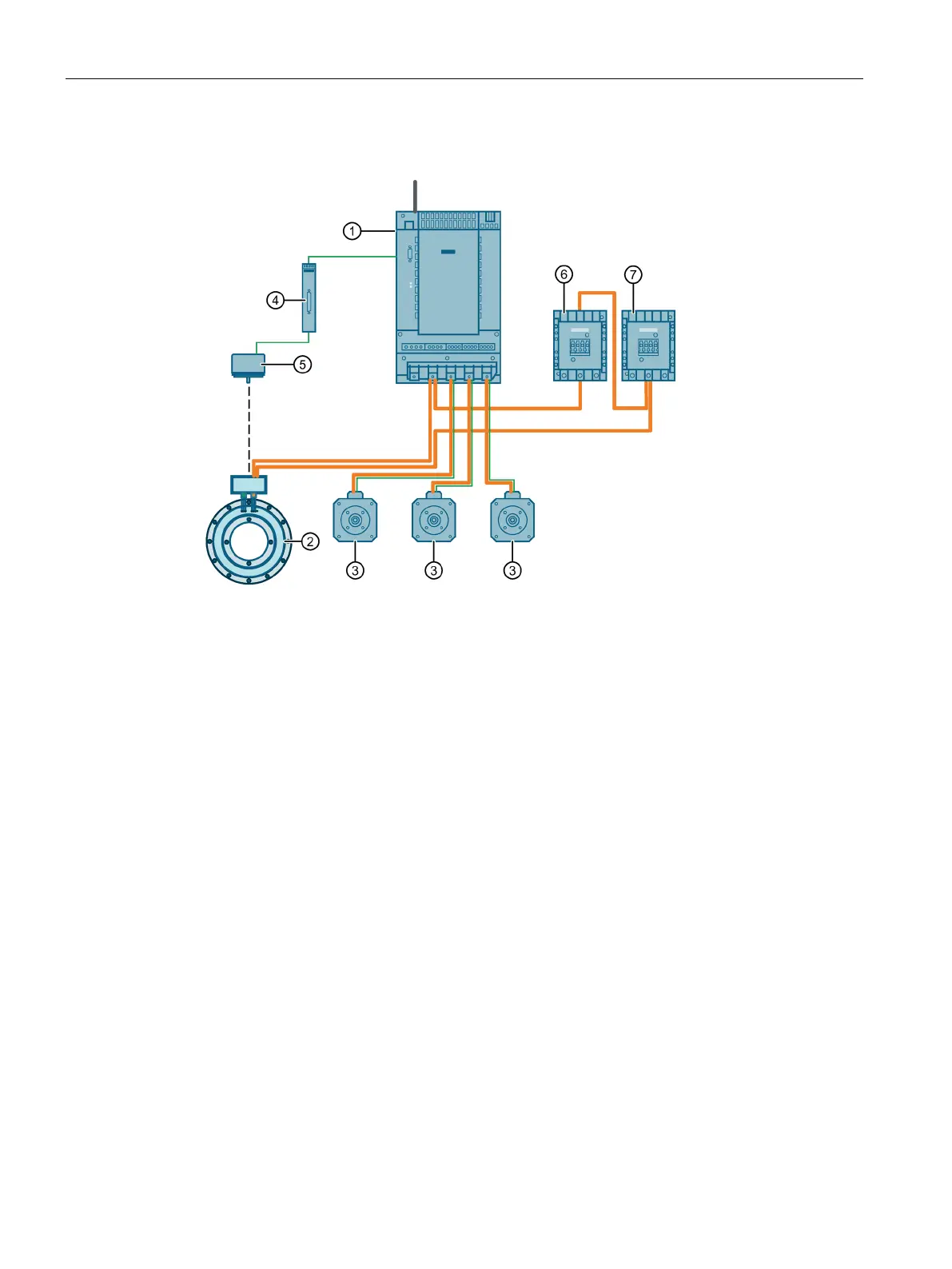

1FE2 in asynchronous version with star-delta changeover to SINAMICS S120 Combi
①
SINAMICS S120 Combi Power Module
②
1FE2 in asynchronous version
③
Servo motor
④
SMC20
⑤
Encoder
⑥
Delta contactor
⑦
Star contactor
Figure 3-9 1FE2 with star-delta connection to SINAMICS S120 Combi

Siemens SIMOTICS Series Specifications

General

Product brand name	SIEMENS
Product designation	SIMOTICS
Efficiency Class	IE1, IE2, IE3, IE4
Ambient Temperature	+60°C
Altitude	Up to 4000 m
Frame Size	63 to 355
Protection Class	IP55, IP56, IP65
