3.3 Technical features and system requirements for built-in motors
SIMOTICS M-1FE2 built-in motors
Hardware Installation Manual, 04/2020, A5E50074509B AA
51

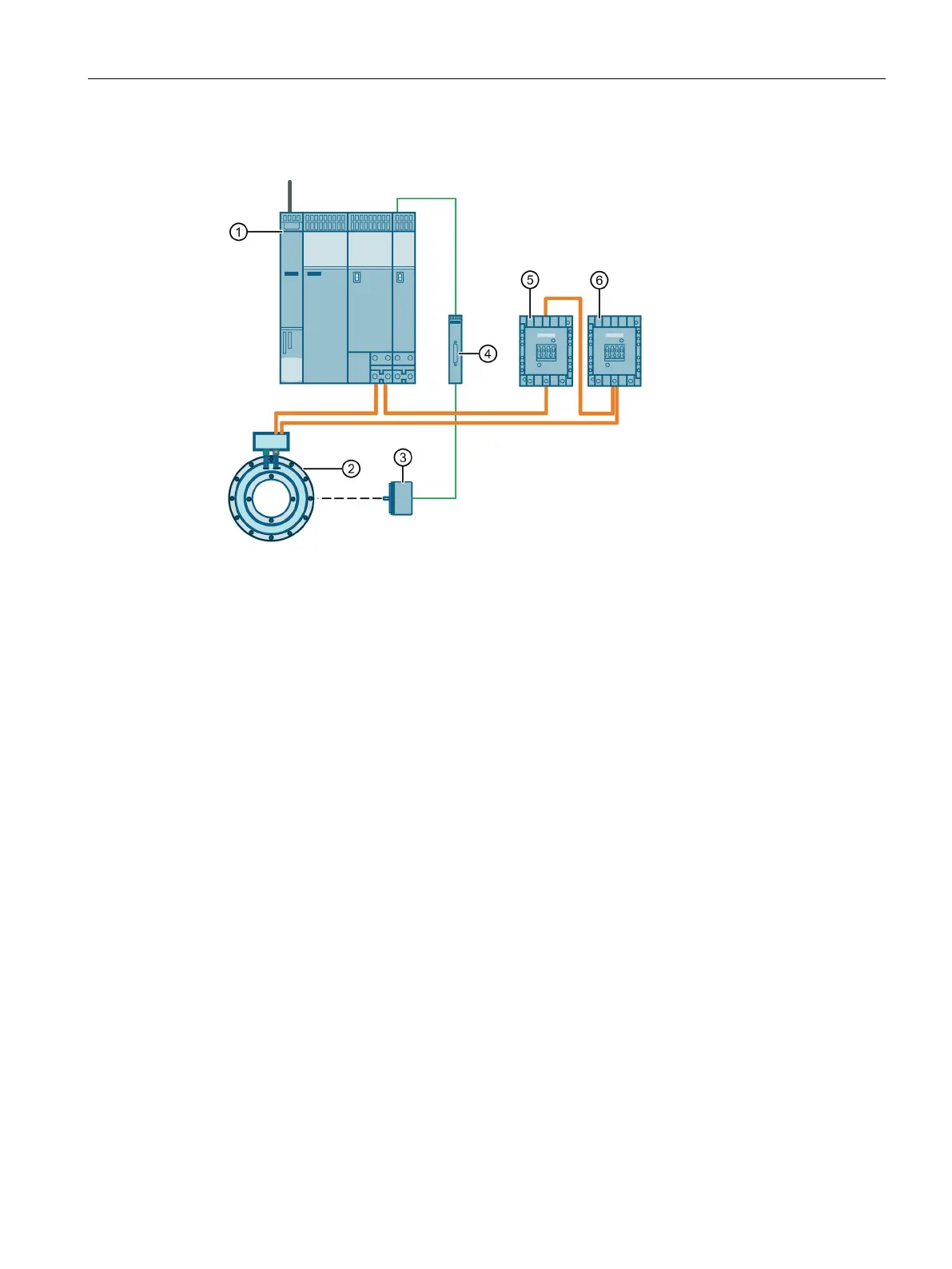

1FE2 in asynchronous version with star-delta connection to SINAMICS S120 Booksize
①
SINAMICS S120 Power Module Booksize
②
1FE2 in asynchronous version
③
Encoder
④
SMC20
⑤
Delta contactor
⑥
Star contactor
Figure 3-10 1FE2 with star-delta changeover to SINAMICS S120 Booksize
You will find additional information in Chapter "Electrical connection (Page 139)".
