Siemens SIMOTICS Series Hardware Installation Manual

Mechanical mounting
6.3 Installing/removing the rotor
SIMOTICS M-1FE2 built-in motors
94 Hardware Installation Manual, 04/2020, A5E50074509B AA
Instructions for installing the rotor
Note
Different shape
The spindle shaft is supplied by the spindle manufactur
er. The shape of the spindle shaft
may differ from the illustration.

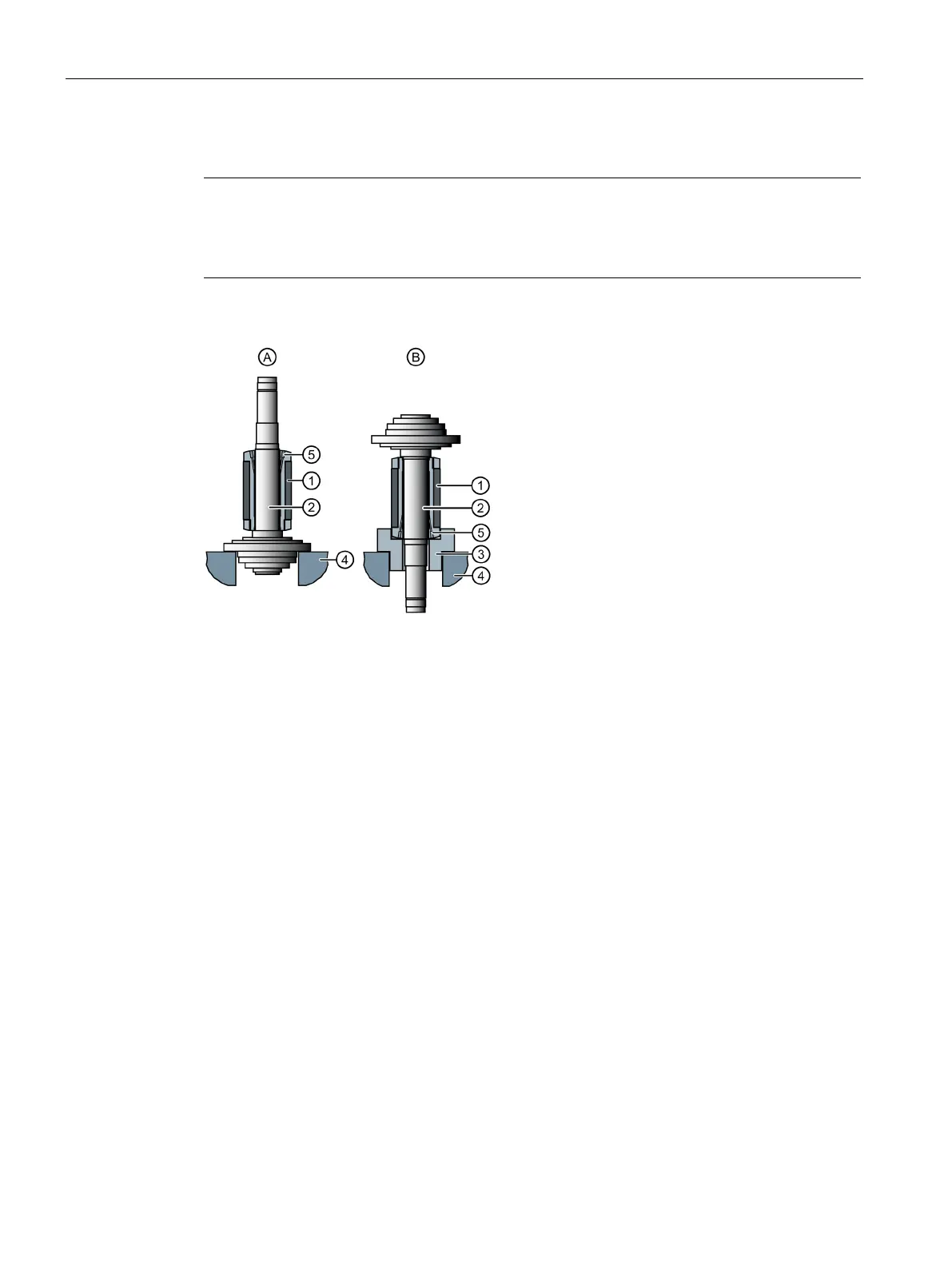

You can install the rotor in two ways:
A
Joining the rotor core
B
Joining the spindle shaft
①
Rotor core
②
Spindle shaft
③
Stable support with opening
④
Assembly fixture (non-magnetic, resistant to heat and cold, thermally insulating)
⑤
Connecting thread for oil pressure pump for rotor cores with sleeve
Figure 6-4 Arrangement for assembling the rotor

Siemens SIMOTICS Series Specifications

General

Product brand name	SIEMENS
Product designation	SIMOTICS
Efficiency Class	IE1, IE2, IE3, IE4
Ambient Temperature	+60°C
Altitude	Up to 4000 m
Frame Size	63 to 355
Protection Class	IP55, IP56, IP65
