Operation 10.04
2.13 Tools and tool offsets
2
 Siemens AG, 2004. All rights reserved
2-148 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
What type of tool offsets
are available?
The offset memory of a tool includes the following:
• Tool type
The tool type determines which tool data are required and how
they must be calculated (e.g. drill, centering tool, mill).
• Total size: Length, radius, angle (drill)
These comprise several components (geometry, wear). The
control performs calculations on the components to obtain a final
size (e.g. total length, total radius). The relevant total dimension
becomes valid as soon as the offset memory is activated.

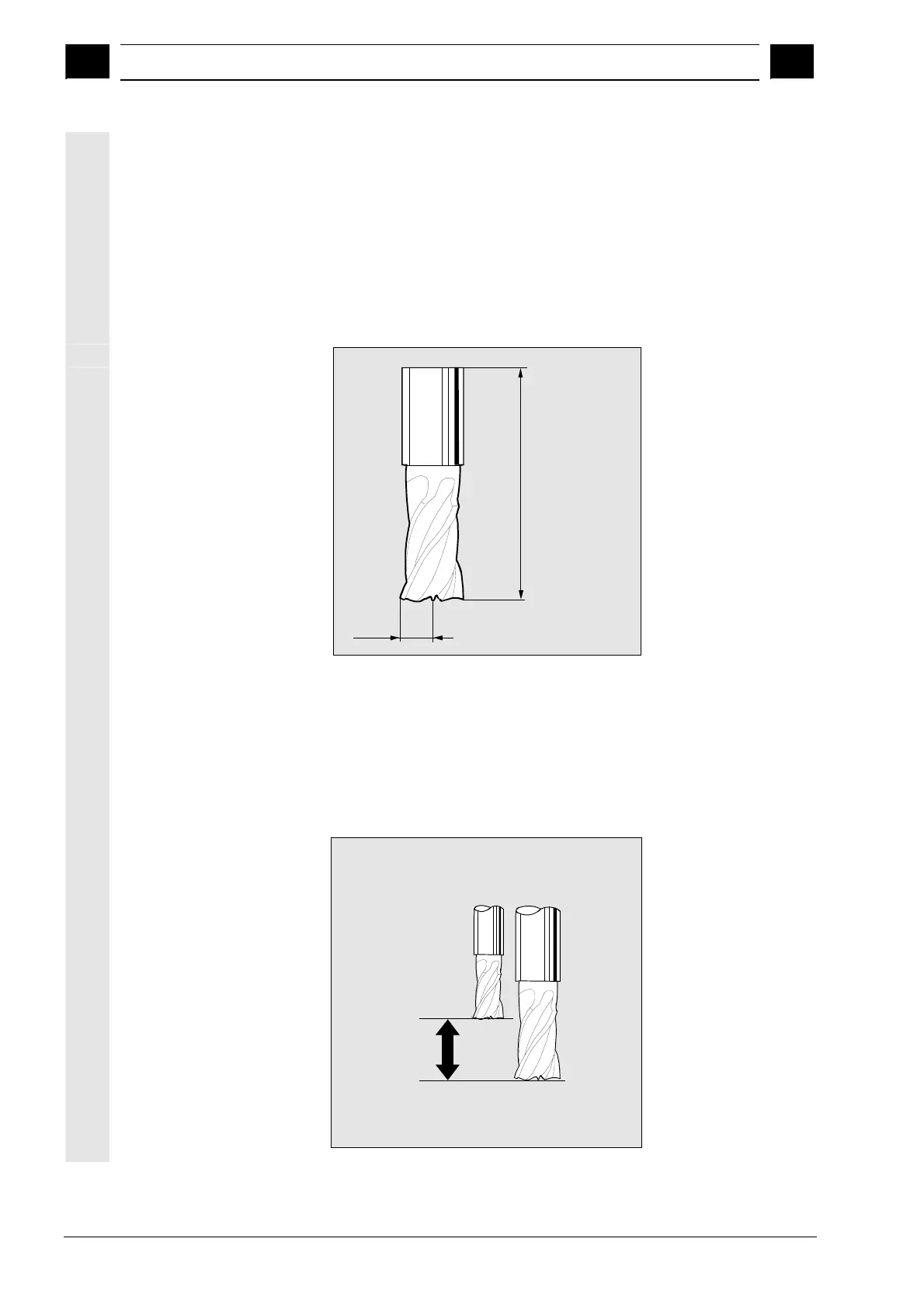

Radius
Length
Tool length offset
This value compensates for the differences in length between the
tools used.
The tool length is interpreted to be the distance between the
toolholder reference point and the tool tip. This measured length is
entered in the tool list.
The control uses this measurement and the wear values to calculate
travel movements in the infeed direction.
