3
Programming with ShopMill 10.04
3.8 Millin
3
ï›™ Siemens AG, 2004. All rights reserved
3-284 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
Programming example 1
You want to mill 12 mutually parallel rectangular pockets at an angle of 15
degrees. Arrangement on matrix: 4 columns, 3 rows.
Blank dimensions: X=115mm, Y=80mm, Z=30mm
Rectangular pocket dimensions: Length 20 mm, width 10 mm, depth 8 mm
Corner radius 1.5mm.
You have selected "Bottom left" as the pocket reference point.

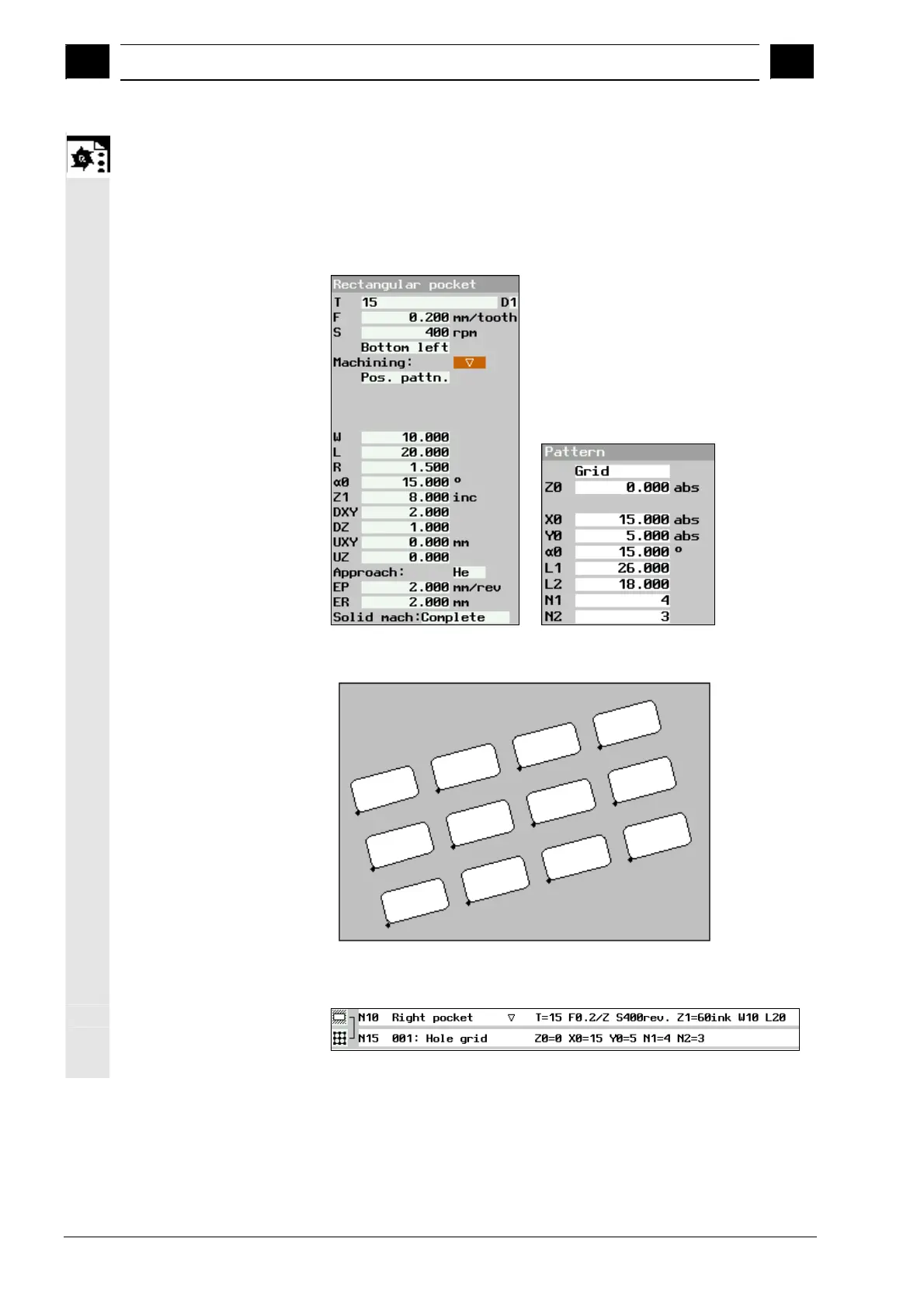

Parameter input fields for rectangular pocket and position pattern
Programming graphic, rectangular pockets on matrix at angle of 15 degrees
Extract from machining plan; milling rectangular pockets on a matrix
