10.04 Programming with ShopMill
3.8 Millin
3
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 3-285

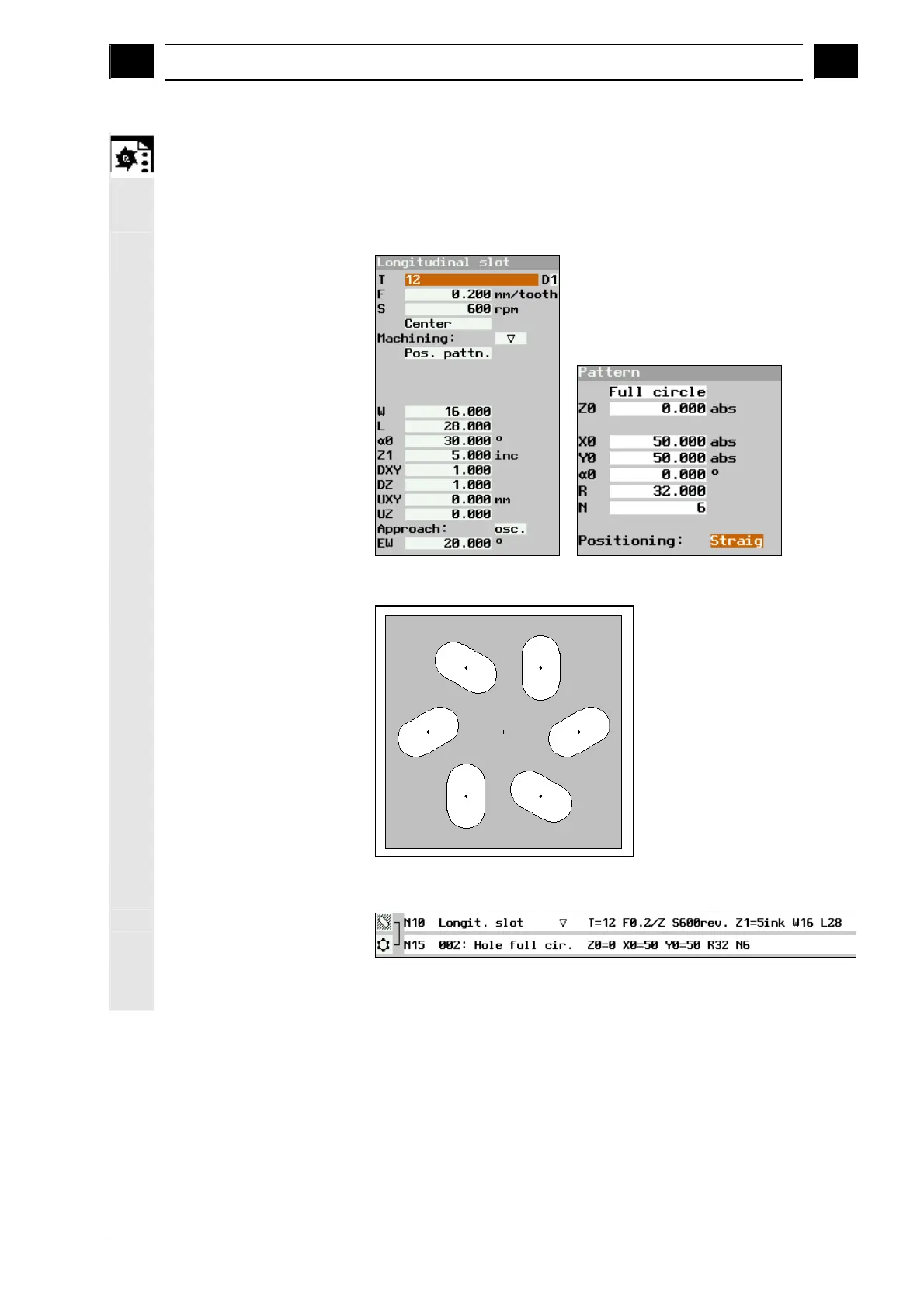

Programming example 2
You want to rough cut 6 longitudinal slots on a full circle of Ø 32mm. The slots
are rotated through 30 degrees.
Blank dimensions: X=100mm, Y=100mm, Z=20mm
Slot dimensions: Length 28mm, width 16mm, depth 5mm
You have selected "center point" as the slot reference point.
Parameter input fields for longitudinal slot and position pattern
Programming graphics, longitudinal slots at angle of 30 degrees on full circle
Extract from machining plan; milling longitudinal slots on a full circle
