1
10.04 Introduction
1.3 User interface
1
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 1-37

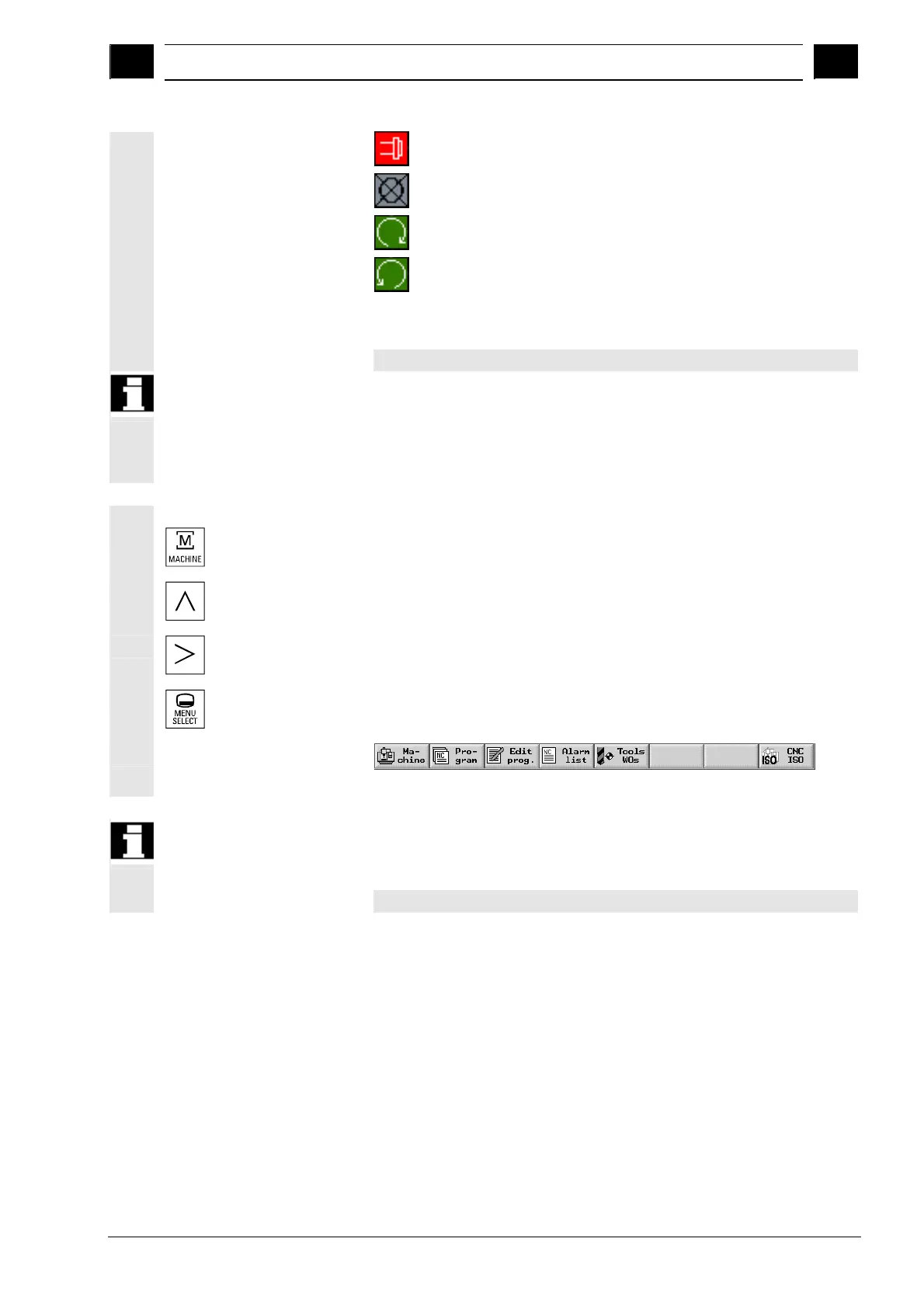

Spindle status
Spindle not enabled
Spindle is stationary
Spindle is turning clockwise
Spindle is turning counterclockwise
The display of the spindle utilization as a percentage can be 200 %.
Please refer to the machine manufacturer's instructions.
Key to the meaning of the symbol colors:
Red: Machine is stationary
Green: Machine is running
Yellow: Waiting for operator to take action
Gray: Miscellaneous
Screen buttons
Machine
Call active operating mode (Machine Manual, MDI, or Machine Auto).
Return
Irrelevant in ShopMill.
Expansion
Changes the horizontal softkey bar.
Menu Select
Calls the main menu:
The machine manufacturer can display defined symbols instead of the
program path (4). The program path is then displayed together with
the program name (3).
Please refer to the machine manufacturer's instructions.
