Siemens SINUMERIK 810D Operation/Programming

2
10.04 Operation
2.7 Measurin
g
a tool
2
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 2-97

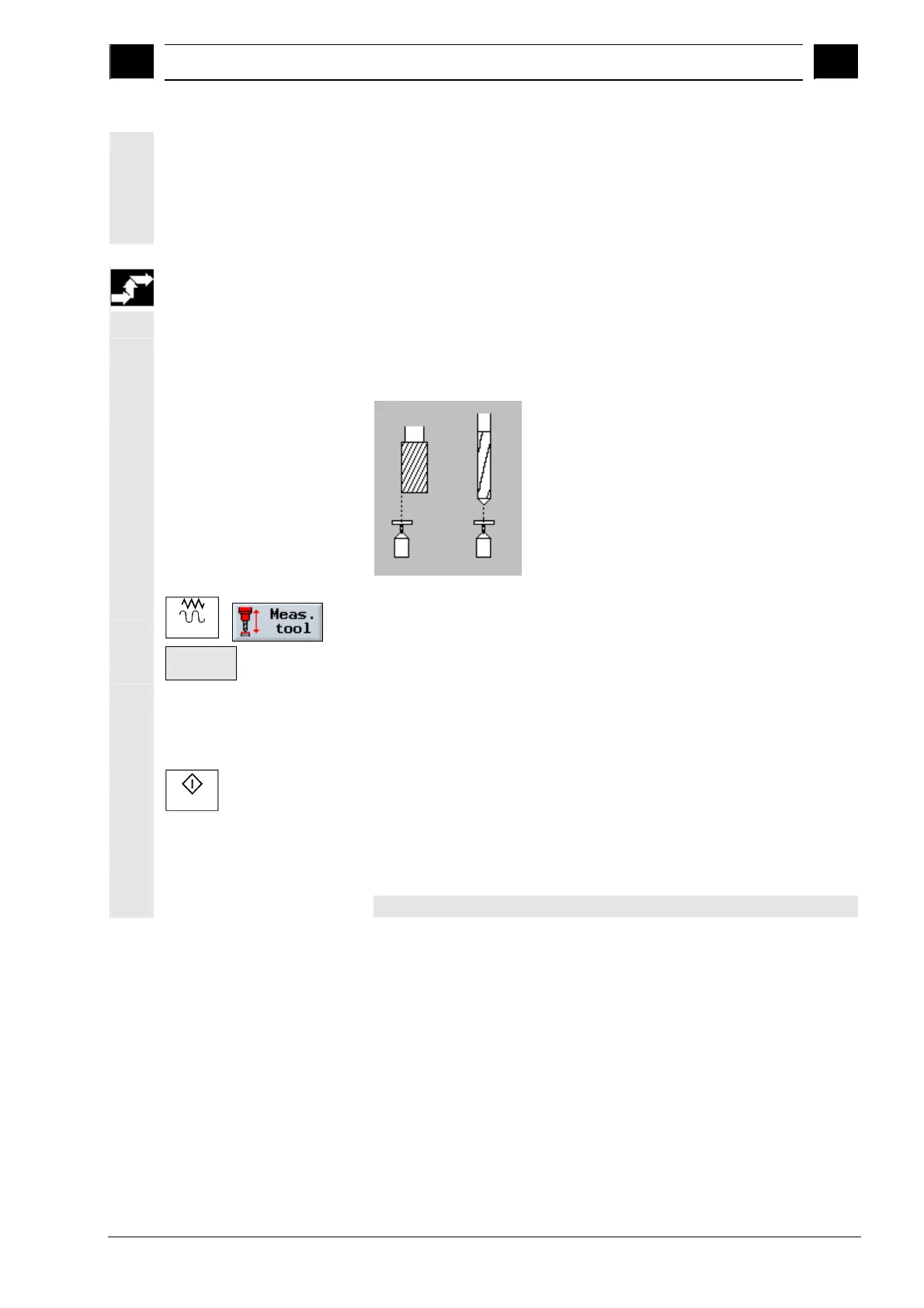

If measuring shows that the length of the tool diameter is greater than
the probe diameter, measurement is automatically performed with a
turning spindle rotating in the opposite direction. The tool is not
traversed across the center of the probe but with the outside edge of
the tool along the center point of the measuring probe.
Measuring length
 Attach the tool you want to measure to the spindle.
 Position the tool near the measuring probe so that it can be
approached without collision.
Measuring tool length
Jog
 Select the "Measure tool" softkey in "Machine Manual" mode.
Length
Auto >
 Press the "Length Auto" softkey.
 Select the tool cutting edge D and the duplo number DP for the
tool.
 If necessary, enter the lateral offset V.
Cycle Start
 Press the "Cycle Start" key.
This starts the automatic measuring process. The tool length is
calculated automatically and entered in the tool list.
The measuring process depends on settings made by the machine
manufacturer.
Please refer to the machine manufacturer's instructions.
