5.5.5 Starting angle for thread cutting
Function

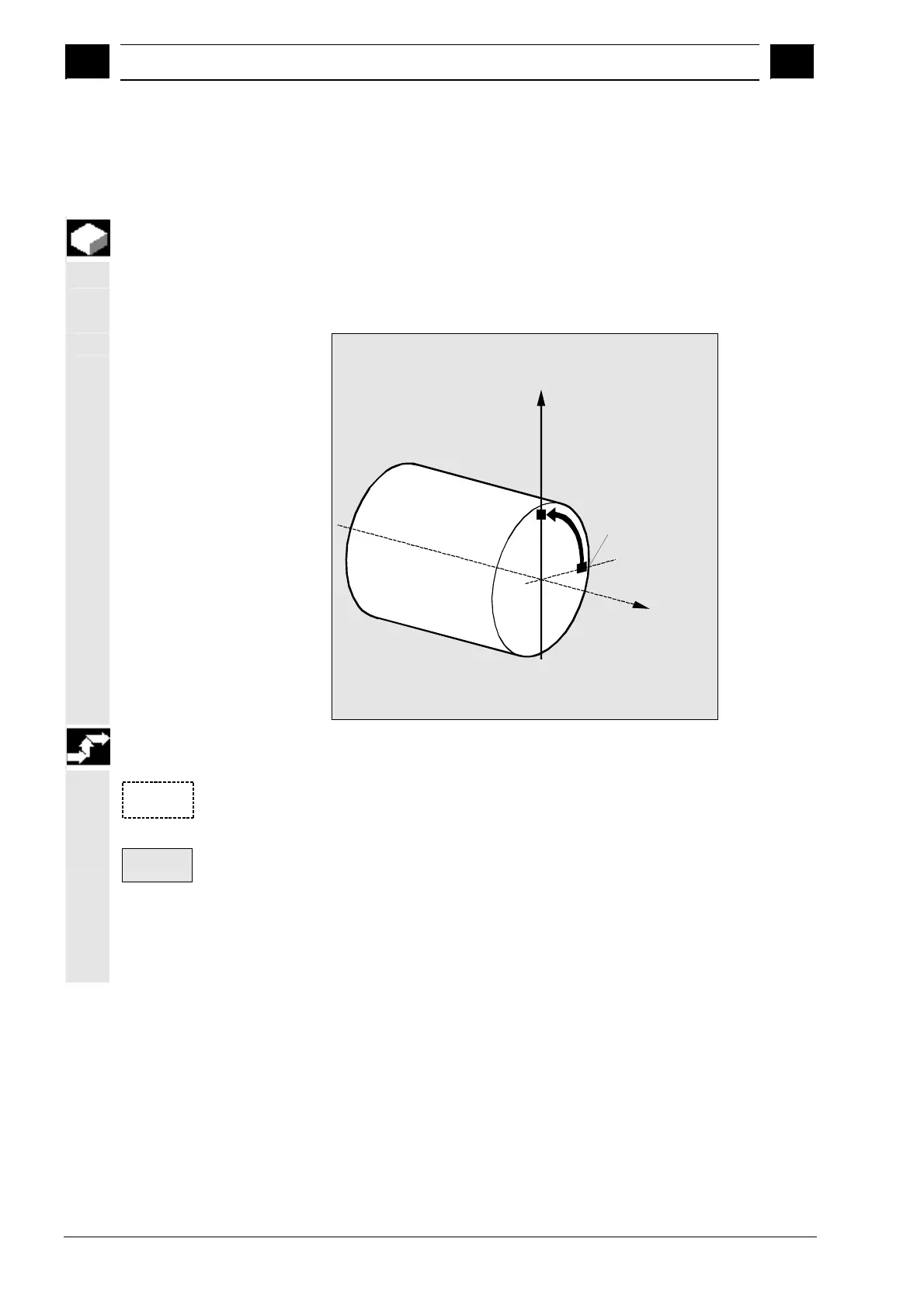

For thread cutting, a starting position for the master spindle is
displayed as the starting angle. A multiple thread can be cut by
changing the angle when the thread cutting operation is repeated.
X
Z
Starting point
offset in °
Starting angle
for thread
(setting data)
Operating sequence
Setting
data
Select softkey "Setting data".
The vertical softkey bar changes.
Starting
angle
Change starting angle:
Select softkey "Starting angle".
The "Starting angle for thread" window opens.
Enter a new value.
