4.4.8 Display system frames
If system frames have been activated via MD, they can be displayed via the
operating area Parameters, Active ZO + Override, Details.
The following assignment is applicable:
$P_SETFR System frame for actual value setting, scratching
$P_EXTFR System frame for work offset external
$P_PARTFR System frame for TCARR and PAROT
$P_TOOLFR System frame for TOROT and TOFRAME
$P_WPFR System frame for workpieces
$P_CYCFR System frame for cycles
Both the offset set via frames (coarse and fine) and the rotation and mirroring
defined there are displayed. Display is according to the position in the frame
chain.
You can choose between the system frames and basic frames by scrolling
through the desired section.

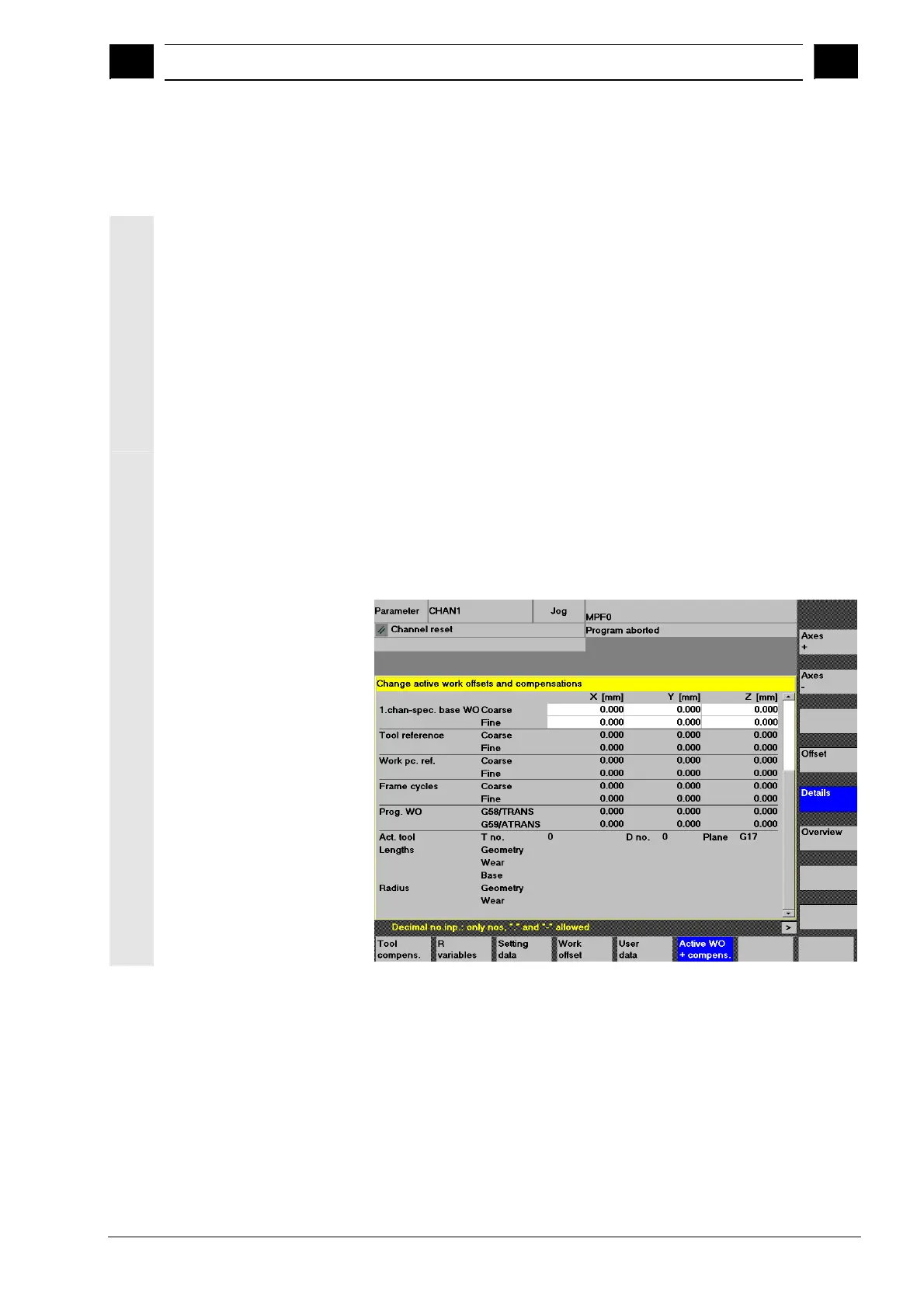

The following figure shows sample screen contents
