03.04 Operator Components/Sequence of Operations
2.3 Machine control
anels
2
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 2-39
2.3 Machine control panels
Standard turning
machines/milling machines
Actions on the machine tool, for example traversing the axes or
program start, can only be initiated via a machine control panel.
The machine tool can either be equipped with a standard machine
control panel from SIEMENS (ordering data option) or with a specific
machine control panel from the machine-tool manufacturer.
The following description applies to the 19" machine control panel
supplied by SIEMENS. If you are using another machine control
panel, please consult the operating instructions of the machine-tool
manufacturer.

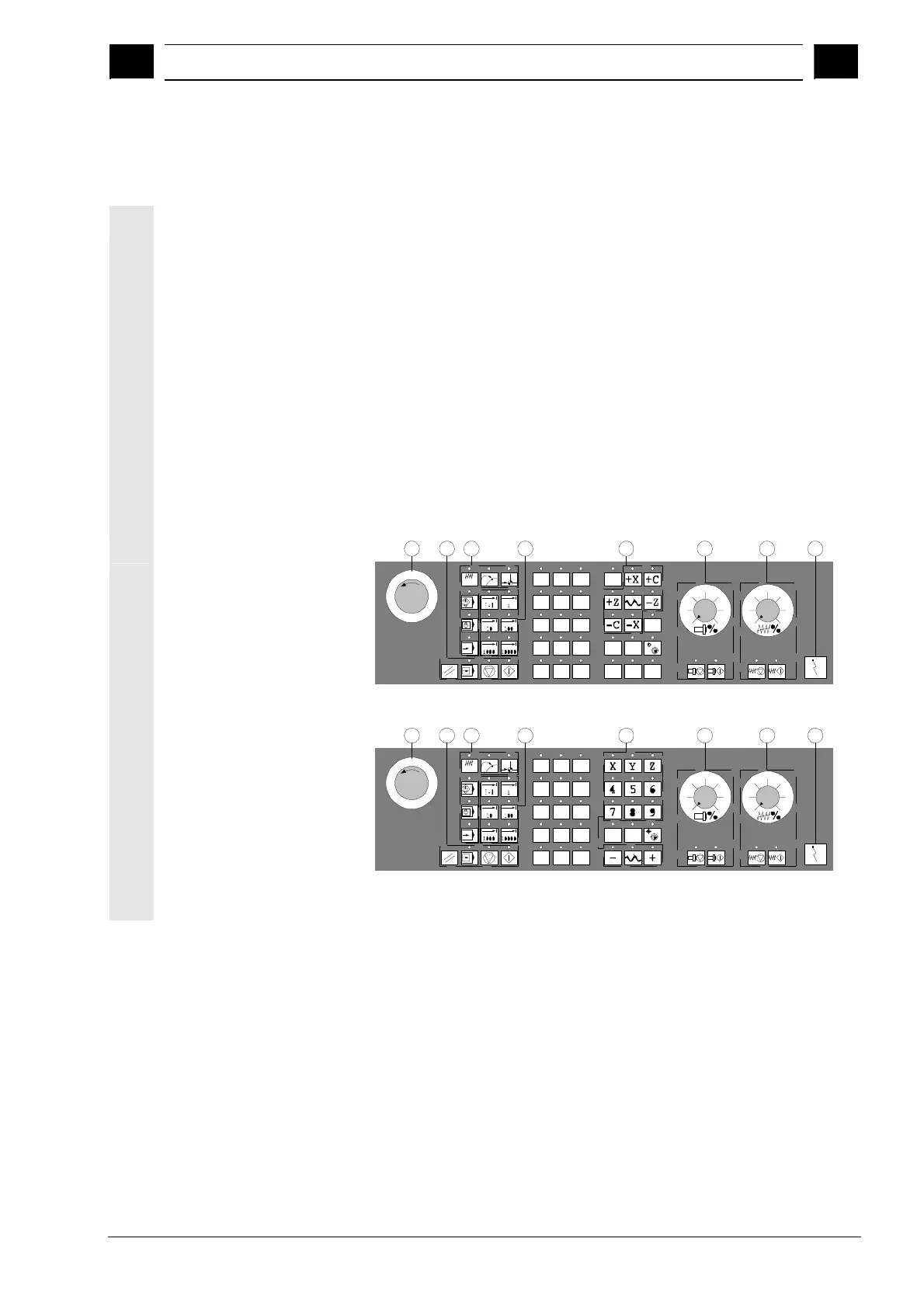

The standard machine control panel from SIEMENS is equipped with
the following operator controls:
1 Emergency Stop button
2 Operating modes (with
machine function)
3 Incremental mode
4 Program control
5 Direction key with rapid
traverse override
6 Spindle control
7 Feed control
8 Keyswitch
1
4
2 3 5 6 7 8
1 4 2 3 5 6 7 8
Machine control panel for turning machines
Machine control panel for milling machines
