Introduction 03.04
1.3 Activation/deactivation
1
Ó Siemens AG, 2004. All rights reserved
1-26 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition

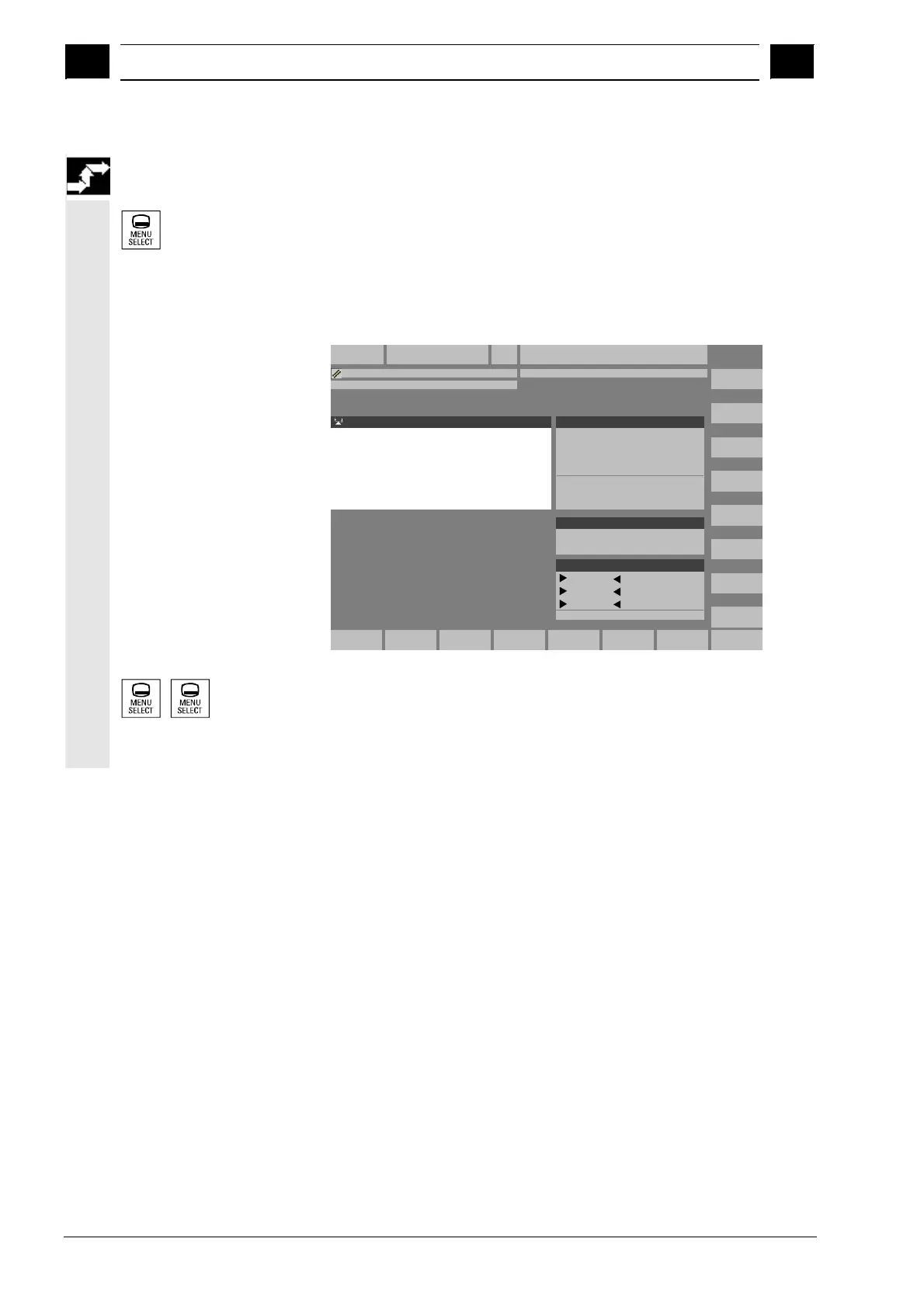

Operating sequence
When you press the "Area switchover" key, operating areas are
displayed on the horizontal softkey bar and operating modes are
displayed on the vertical softkey bar. You can use this key to go to the
area menu bar from any location in the menu hierarchy if you wish to
select another operating mode or a different operating area.
Machine
Channel Reset
Jog
MCS Position
+ X 900.000 mm 0.000
- Y -156.000 mm 0.000
+ Z 230.000 mm 0.000
Auxiliary Functions
M0
M0
M0
H0.000000
H0.000000
H0.000000
M0
M0
+ X 900.000 mm
- Y -156.000 mm
+ Z 230.000 mm
Feedrate mm/min
Act. 3000.000 0.0 %
Set. 3000.000
Aut o
MDI
JOG
REPOS
REF
Tool
T0 D0
T0 D0
T0 D0
G1
.
.
.
Program aborted
Machine
Parameters Program
Services Diagnosis
Start-up
By pressing the "Area switchover" key twice, you can toggle between
the operating areas last selected, e.g. between the "Parameters" and
"Machine" areas.
