03.04 Operator Components/Sequence of Operations
2.1 O
p
erator
p
anels
2
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 2-33
Additional note
Since the English version of Windows is used in the control, the
keyboard language is English. A different keyboard language cannot
be set.

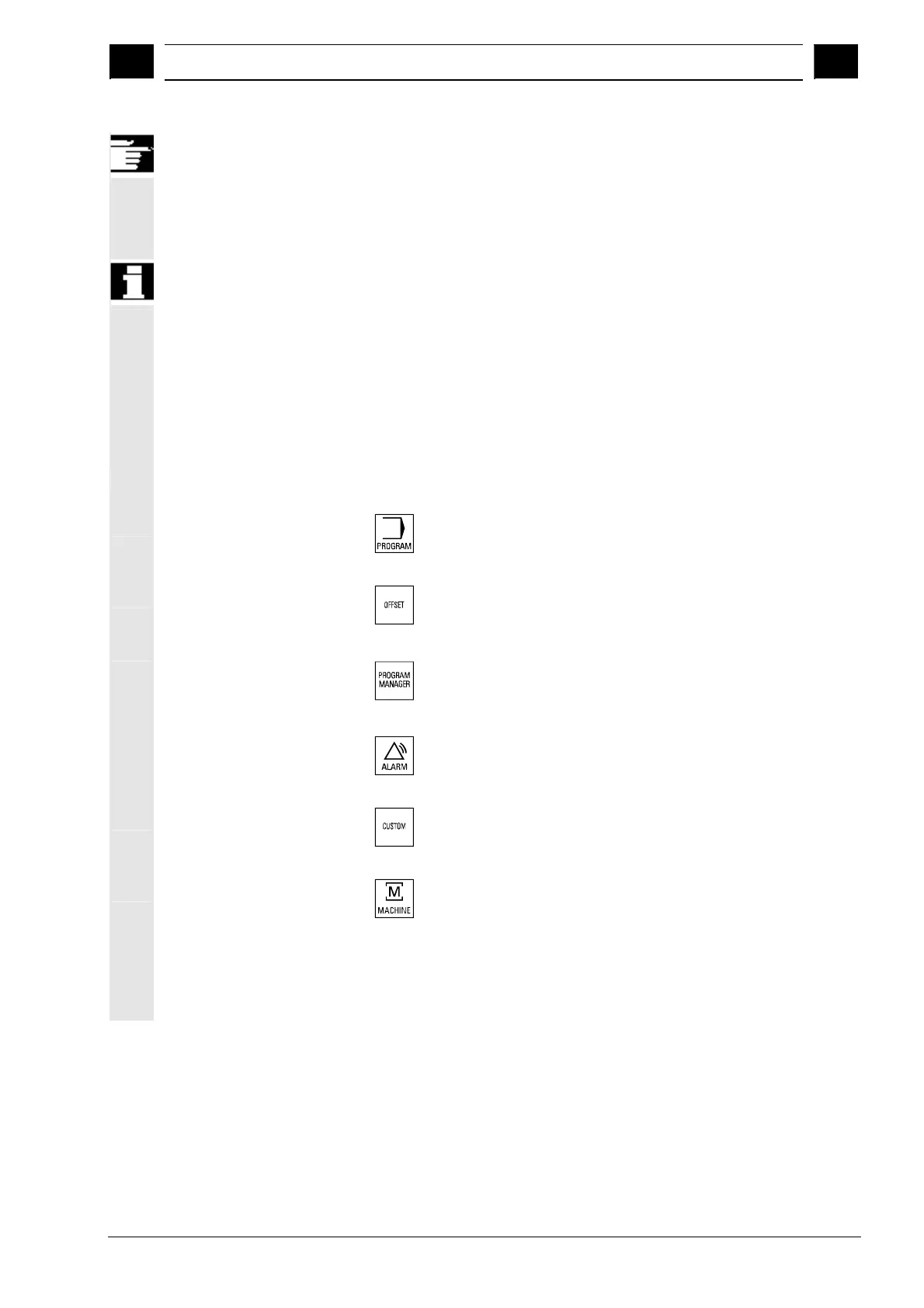

The following keys, assigned in the hotkey pad on operator panels
OP010 and OP010C, are located on the MF II keyboard in the
alpha/numeric keypad with NumLock off:
· END PROGRAM
· PAGE DOWN OFFSET
· HOME (Pos1) PROGRAM MANAGER
· PAGE UP ALARM
Hardkeys on the MF II
keyboard
Hotkeys on operator panels OP 010 and OP010C
NumLock off
END
Direct access
to the Program operating area
NumLock off
PAGE DOWN
The Parameters operating area
is where the last tool offsets are directly called.
NumLock off
HOME
Direct access to Program overview
to show the last selected program management.
NumLock off
PAGE UP
In the Diagnostics operating area, the last alarms,
messages, service displays or PLC status can be called.
SHIFT F12
Can be configured by the customer.
SHIFT F10
Direct access
to the Machine operating area.
F10
Direct access to the last selected operating area:
Machine, Parameters, Program, Services, Diagnostics or
Startup
