"Diagnosis" Operating Area 03.04
8.4 PLC status
8
Ó Siemens AG, 2004. All rights reserved
8-428 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition
Operating sequence
Diagnosis
PLC
symbols

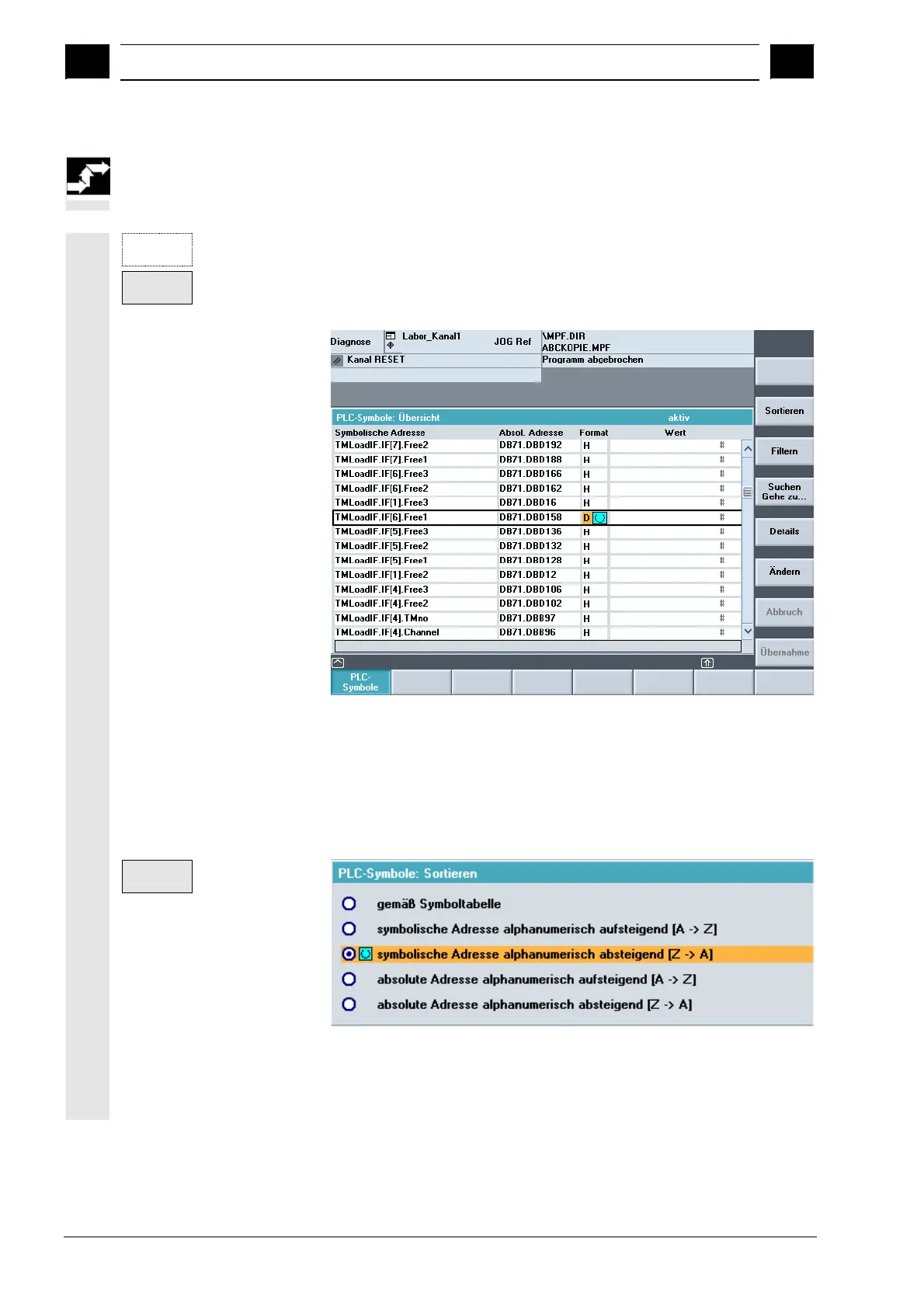

The "Diagnosis" operating area is selected. If the above listed
requirements are met, the softkey PLC symbols is displayed.
The following are represented in the table from left to right:
· Symbolic address
· Absolute address
· Format
· Value
Vertical softkeys
Sort
Select a sort option from:
Depending on your selection, sorting takes place on column one or
column two in ascending or descending alphabetical order to make it
easy to find a symbol or address. "As in symbol table" means: In the
same sequence as the symbol table in the PLC project.
