Siemens SINUMERIK 840D sl Equipment Manual

PROFINET
PROFIsafe V2 x
PROFINET CBA x
2)
Prerequisite: Step 7 ≥ V5.5
1) Cannot be operated for NCU-Link
2) We recommend changing over from CBA to I-Device
Note
A speci󹪝c software release is required. More detailed information is available in the
corresponding ProdIS for the particular software release.
0DLQVSLQGOHPRWRU
352),%86,2
6HUYRPRWRUV6HUYRPRWRUV
2SHUDWRUSDQHOIURQWVZLWK7&8
3RZHUVXSSO\
352),1(7,2
,QGXVWULDO(WKHUQHW
6,1$0,&66
%RRNVL]H
6,1$0,&66
&8$
1&8
6,1$0,&66&KDVVLV
1;
'5,9(&/L4
+7
6,0$7,&,3&
ವವವ
ವವವ

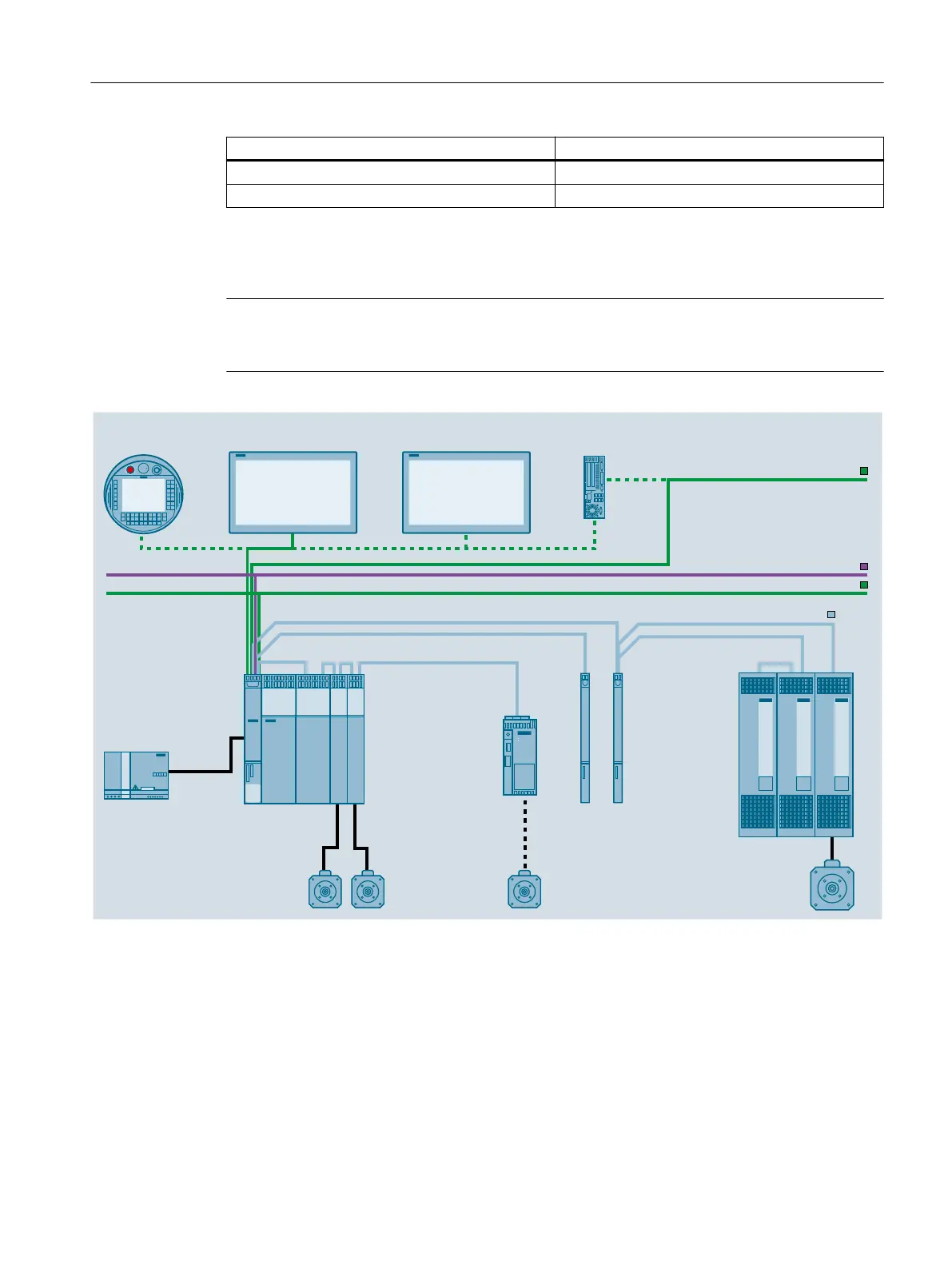

Figure 2-1 Typical topology of the SINUMERIK 840D sl complete system
System overview
2.2 System con󹪝guration
NCU 7x0.3B PN
Equipment Manual, 10/2020, 6FC5397-1EP40-6BA1 19

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
