10.10 Automatic controller setting (only MMC 103, SW 4.3 and higher)
10-238
 Siemens AG 2000 All Rights Reserved
SINUMERIK 840D Installation and Start-Up Guide (IAD) – 04.00 Edition
2

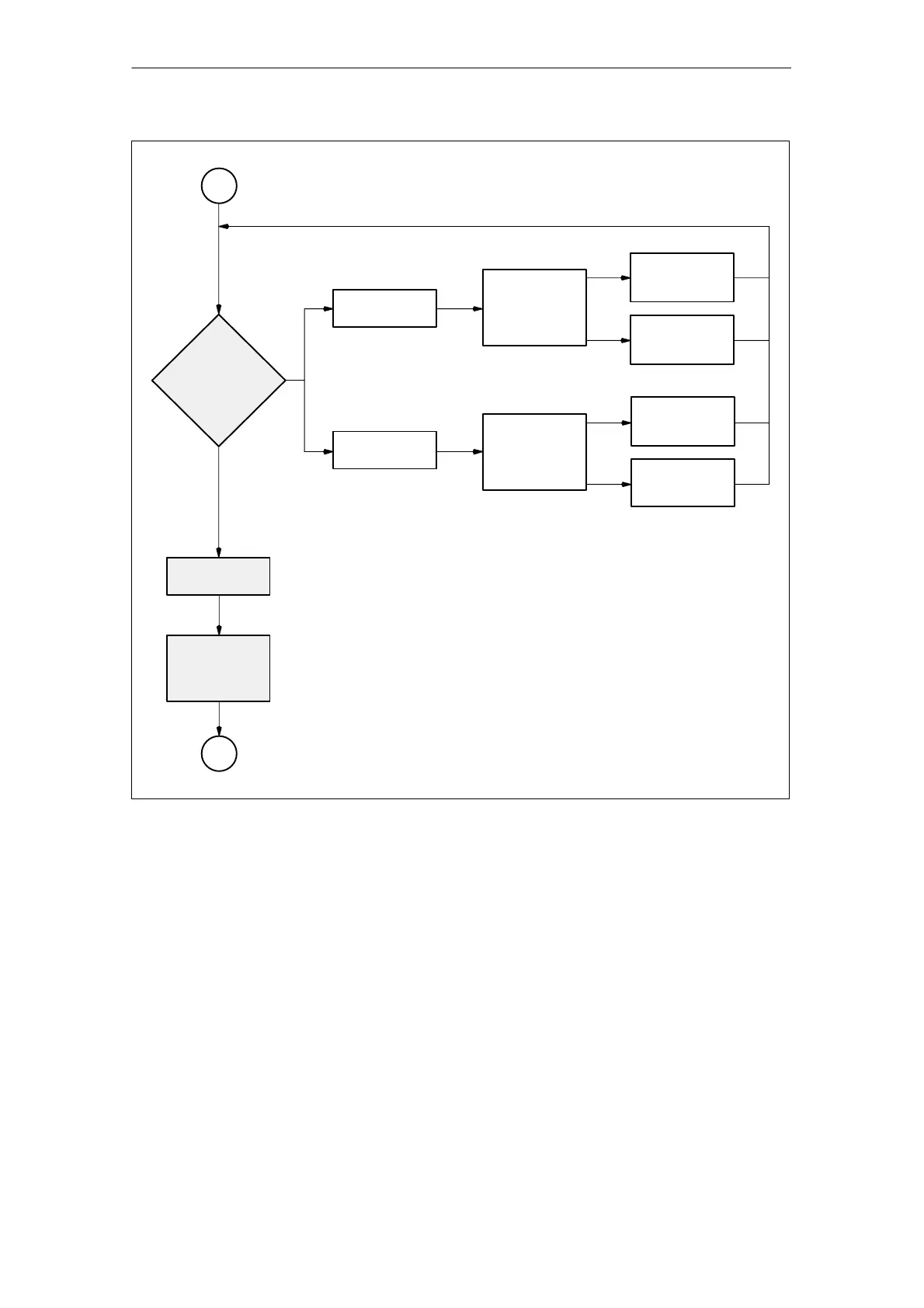

Start calcula-
tion
of controller
data?
SK “OK”
SK “Parameter
gain adjustment”
Enter
parameters for
determination
of optimum
gain
SK “OK”
(accept
values)
3
SK “Parameter
T; adjustment”
SK “Cancel”
(discard
changes)
SK “OK”
(accept
values)
Please wait....
controller data
being calcu-
lated.
Enter
parameters for
determination
of optimum
reset time
SK “Cancel”
(discard
changes)
10 Drive Optimization with Start-Up Tool
05.9805.98

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
