3.1 Mounting and Connections
353
7UT613/63x Manual
C53000-G1176-C160-2
Input/Output
Board(s) C-I/O-1
and C-I/O-10 (only
7UT633 and
7UT635)
The PCB layout for the C-I/O-1 input/output board is shown in Figure 3-6 and the in-
put/output group C-I/O-10 as from release 7UT6../EE in Figure 3-7.
The input/output board C-I/O-1 is only available in the versions 7UT633 and 7UT635.

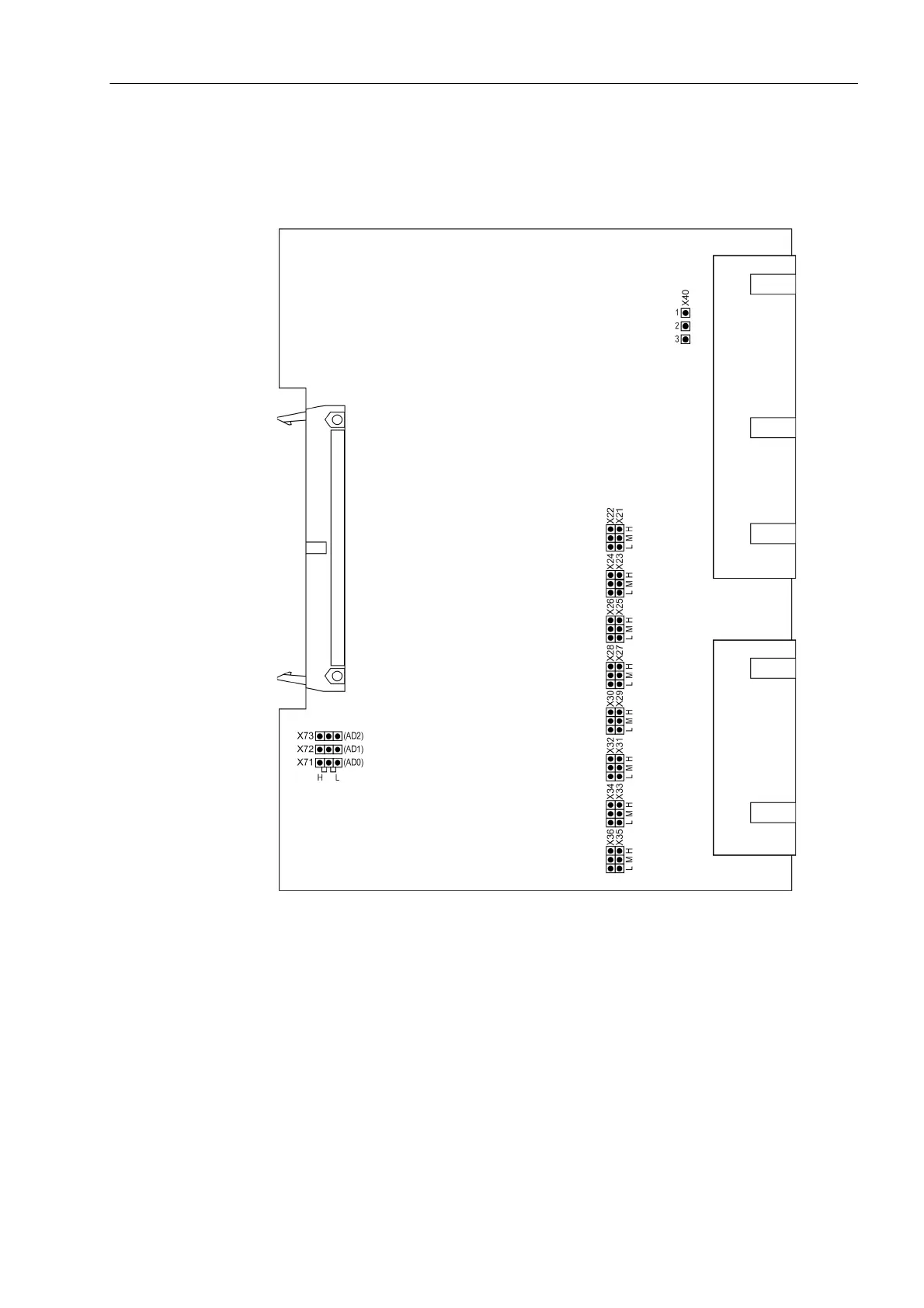

Figure 3-6 C-I/O-1 input/output boards with representation of jumper settings required for
checking configuration settings
For 7UT633 and 7UT635 as from release EE, a further C-I/O-1 or C-I/O-10 can be
available at slot 33 (depending on the version).
