SIRIUS 3RT2 contactors/contactor assemblies
2.7 Accessories
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
215
Assembling the reversing contactor assembly with spring-loaded connection - size S00
The mechanical interlock and the connecting clips are mounted in the same way as
described for size S00 with screw-type connection.

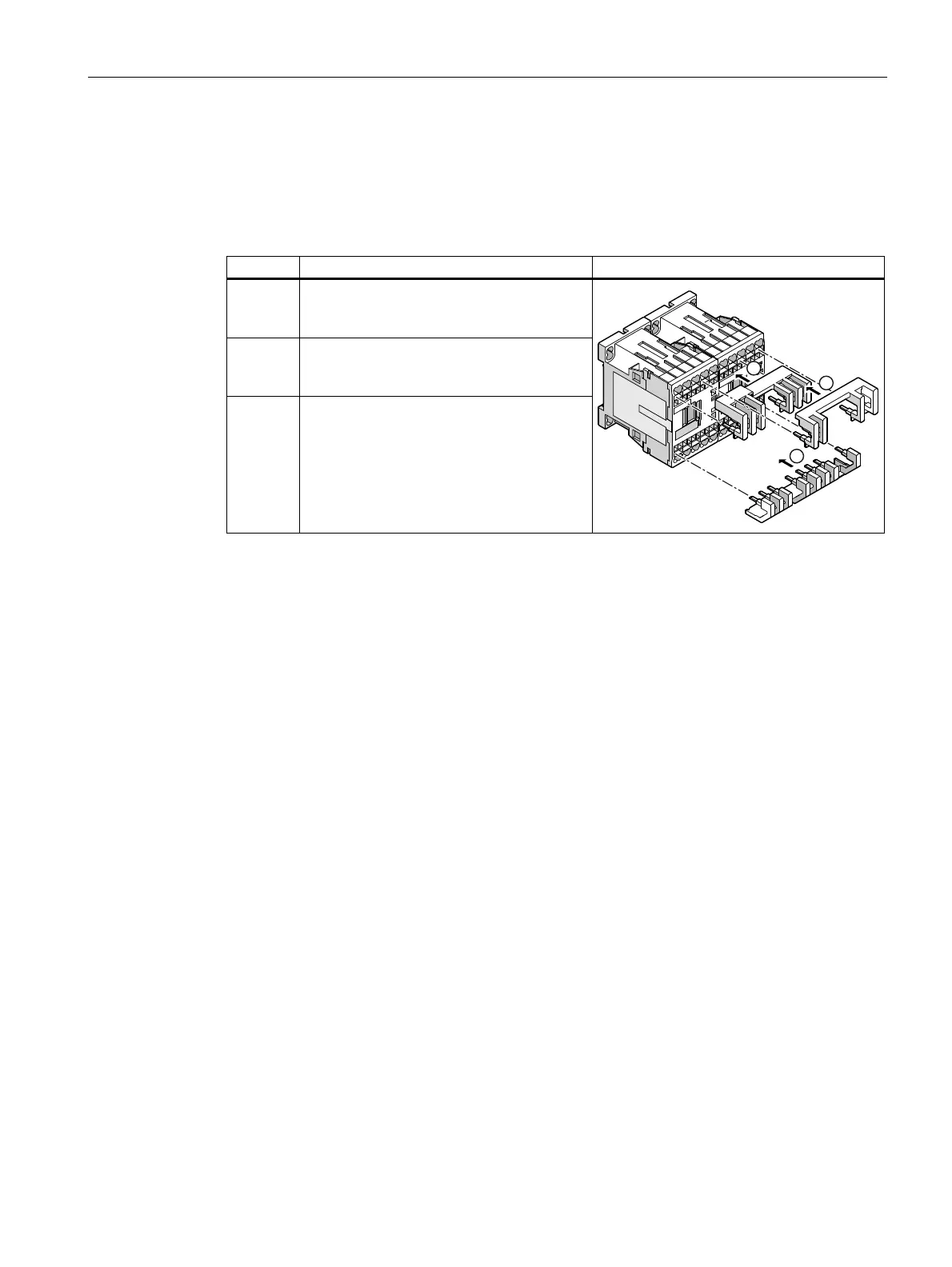

Table 2- 69 Assembling the reversing contactor assembly with spring-loaded connection (size S00)
Step Operating instruction Figure
1 Attach the wiring modules for connecting
the main current paths to the contactors
from above.
2 Attach the wiring modules for connecting
the control current paths to the contactors
from above.
3 Attach the wiring modules for connecting
the main current paths to the contactors
from below.
