SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
580 System Manual, 01/2011, A8E56203870002-03

E
F


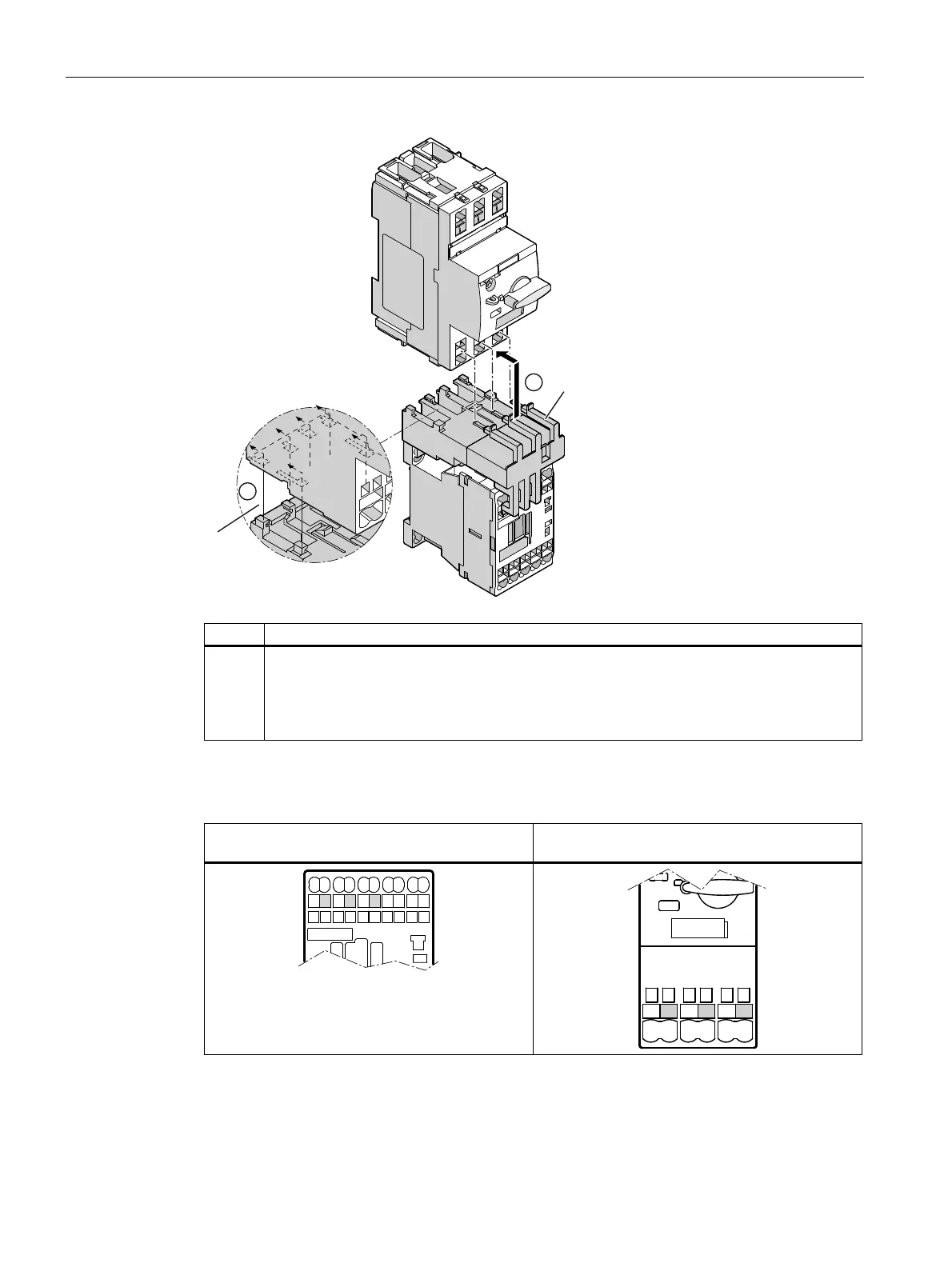

Step Operating instruction
2 Insert the connectors on the link module (b) into the corresponding main conductor
terminals on the motor starter protector.
Insert the guide tabs (c) into the designated slots at the same time.
The link module will sit flush underneath the motor starter protector on the left- and right-
hand sides.
Table 6- 12 Main conductor terminals on contactor and motor starter protector (size S00)
Main conductor terminals on the contactor (a)
(S00):
Main conductor terminals on the motor starter
protector (b) (S00):
DDD
EEE
