SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
581

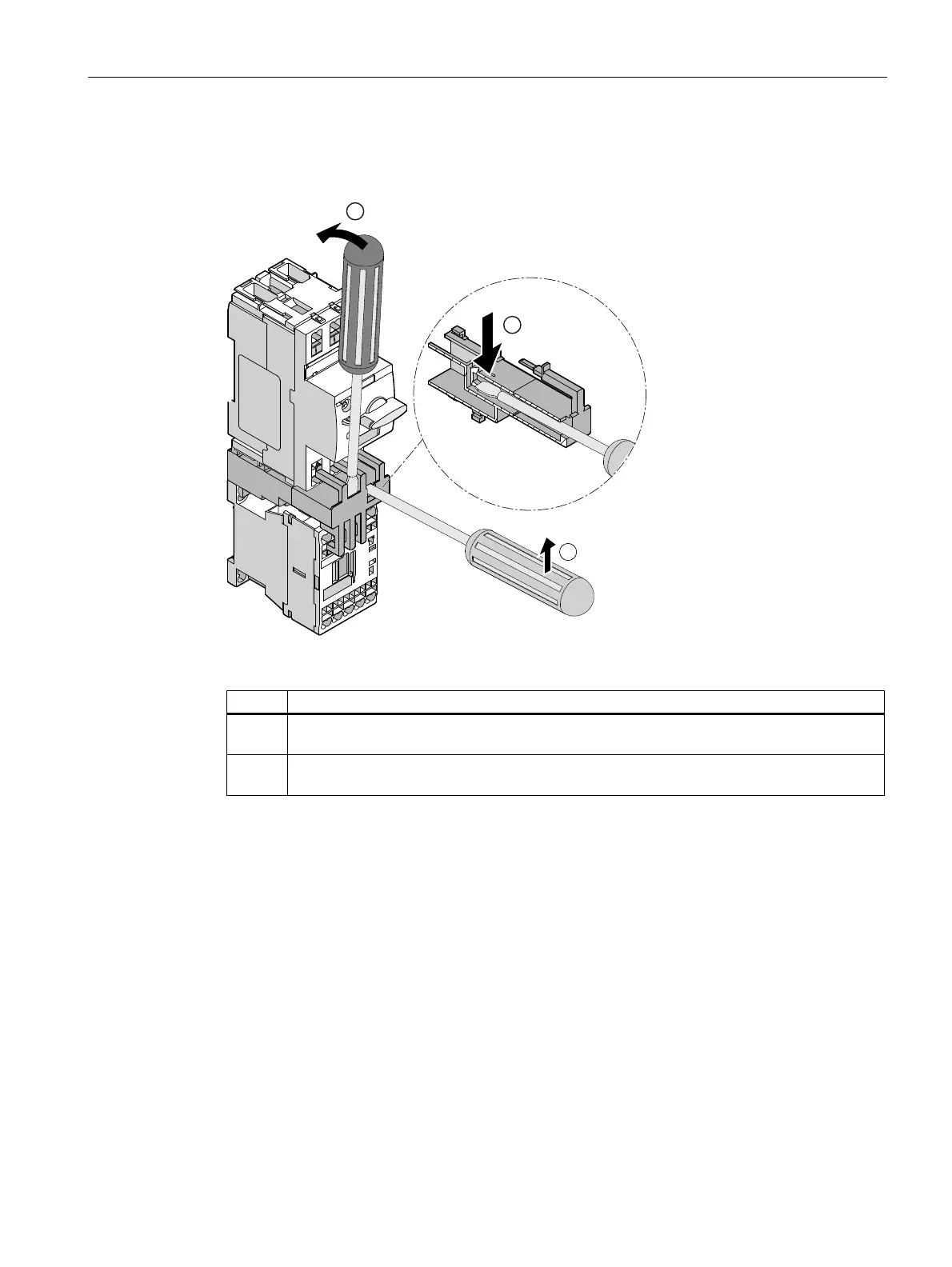

Disassembling an S00 load feeder with spring-loaded connection system
E
D
D
Table 6- 13 Disassembling an S00 load feeder with spring-loaded connection system
Step Operating instruction
1a Slide the screwdriver into the opening on the link module as shown in the figure and press it
down.
1b Position the screwdriver on the link module as shown in the figure and press it down to
release the spring-loaded terminals.
