SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
590 System Manual, 01/2011, A8E56203870002-03




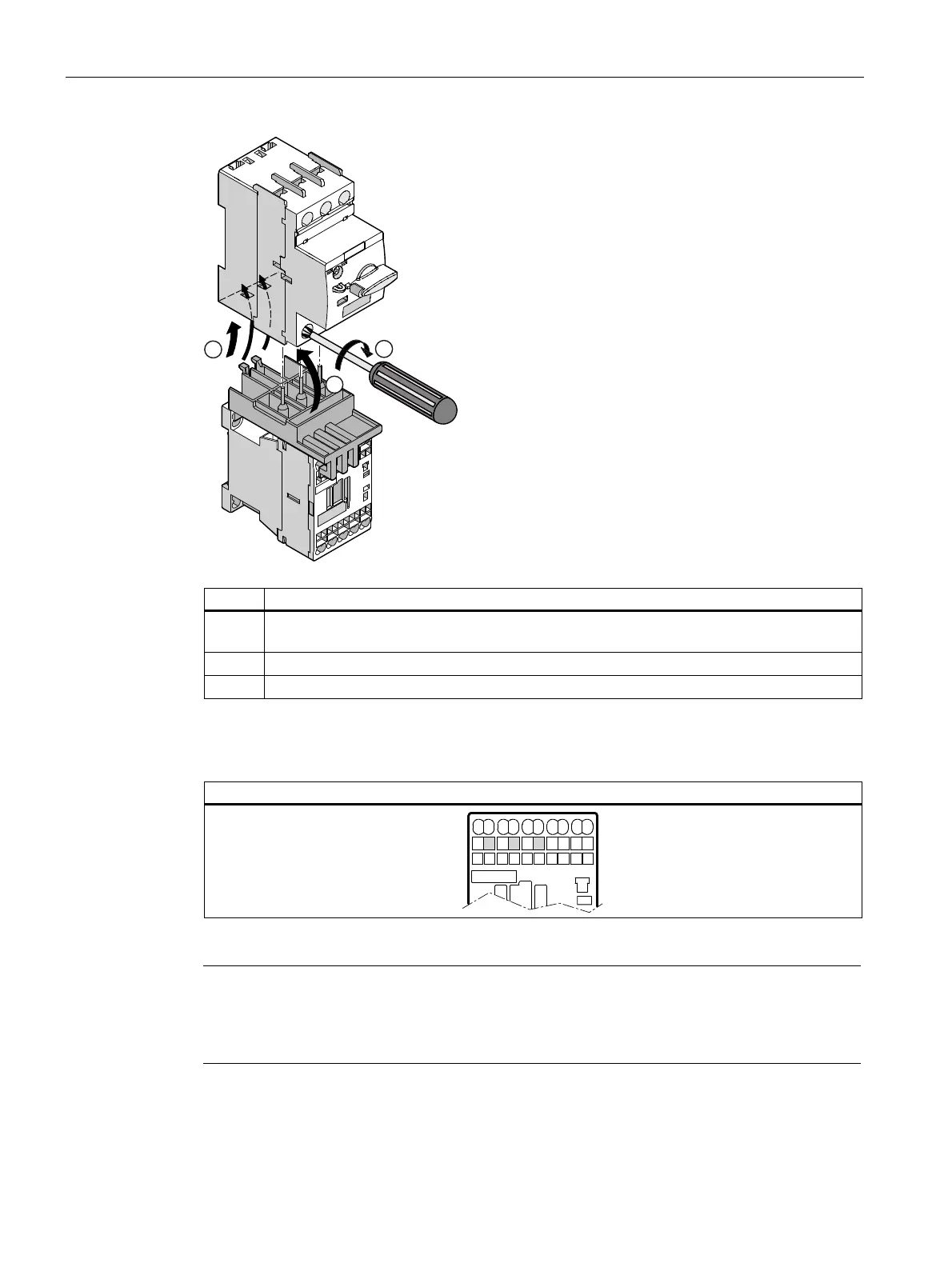

Step Operating instruction
2 Attach the contactor and the link module to the bottom of the motor starter protector. Check
the guide tabs.
3 Insert the pins into the corresponding main conductor terminals.
4 Screw all connectors tight.
Table 6- 18 Main conductor terminals on the contactor (size S00)
Main conductor terminals on the contactor (a) (S00):
DDD
Note
Mounting the S0 motor starter protector and S00 contactor with hybrid connection system
The link module for the S00 load feeder can also be used to mount an S00 contactor on an
S0 motor starter protector.
