SIRIUS 3RR2 current monitoring relays
8.6 Mounting
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
701
Disassembly
To disassemble the S00/S0 assemblies from the DIN rail, press the contactor down and pull
it toward you.

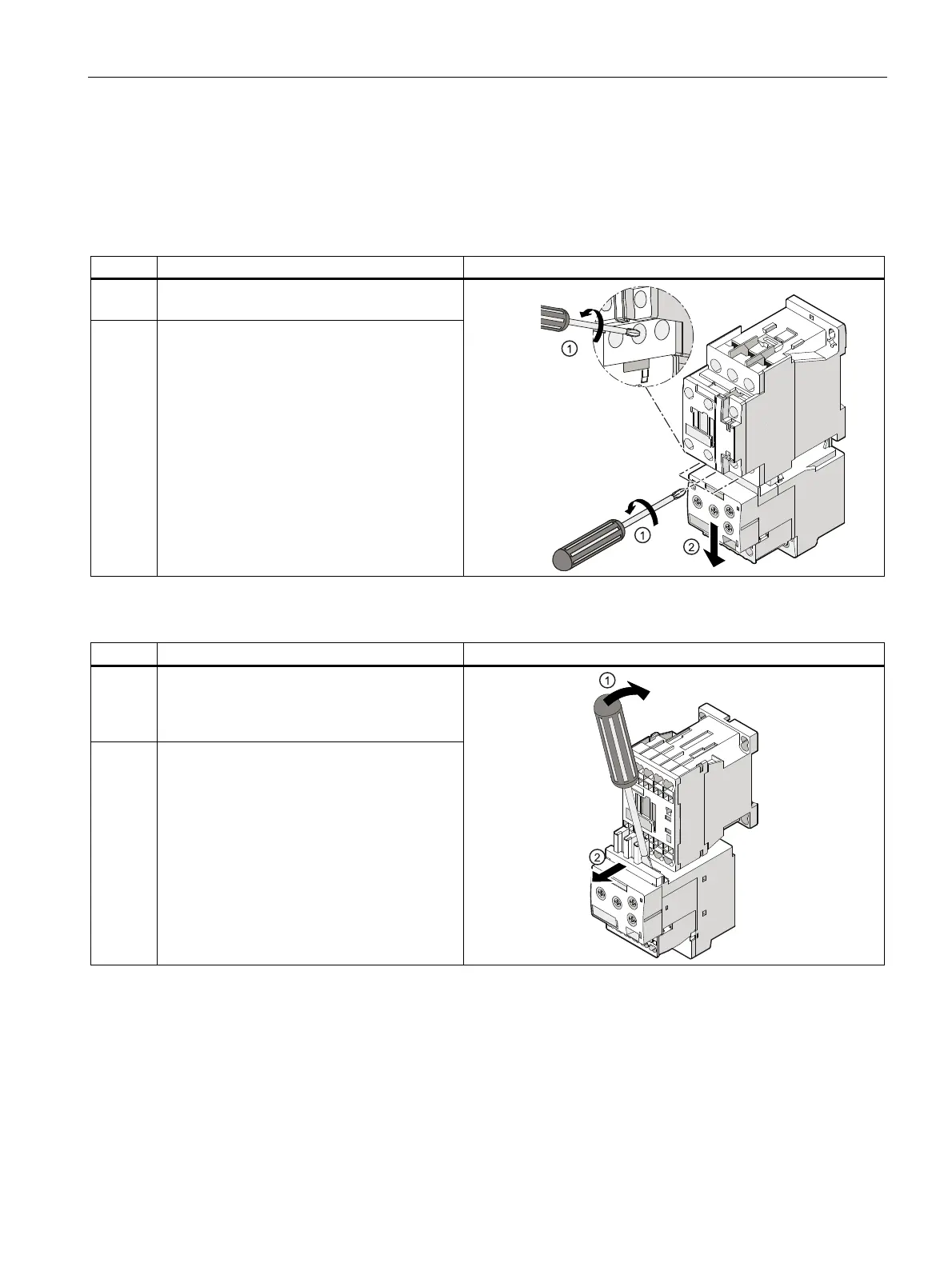

Table 8- 5 Disassembly of current monitoring relays with screw-type connection system (S0)
Step Operating instruction Figure
1 Undo the screws on the main conductor
terminals.
2 Pull the current monitoring relay down and
away from the contactor.
Table 8- 6 Disassembly of current monitoring relays with spring-loaded connection system (S00)
Step Operating instruction Figure
1 Position the screwdriver on the current
monitoring relay as shown in the figure.
Carefully dislodge the current monitoring relay
from the contactor.
2 Pull the current monitoring relay toward you
and away from the contactor.
