Siemens SIWAREX WL260 Series User Manual

Connecting
5.3 Connecting up
SIWAREX WL200
Operating Instructions, 07/2016, A5E02199611B-03
25

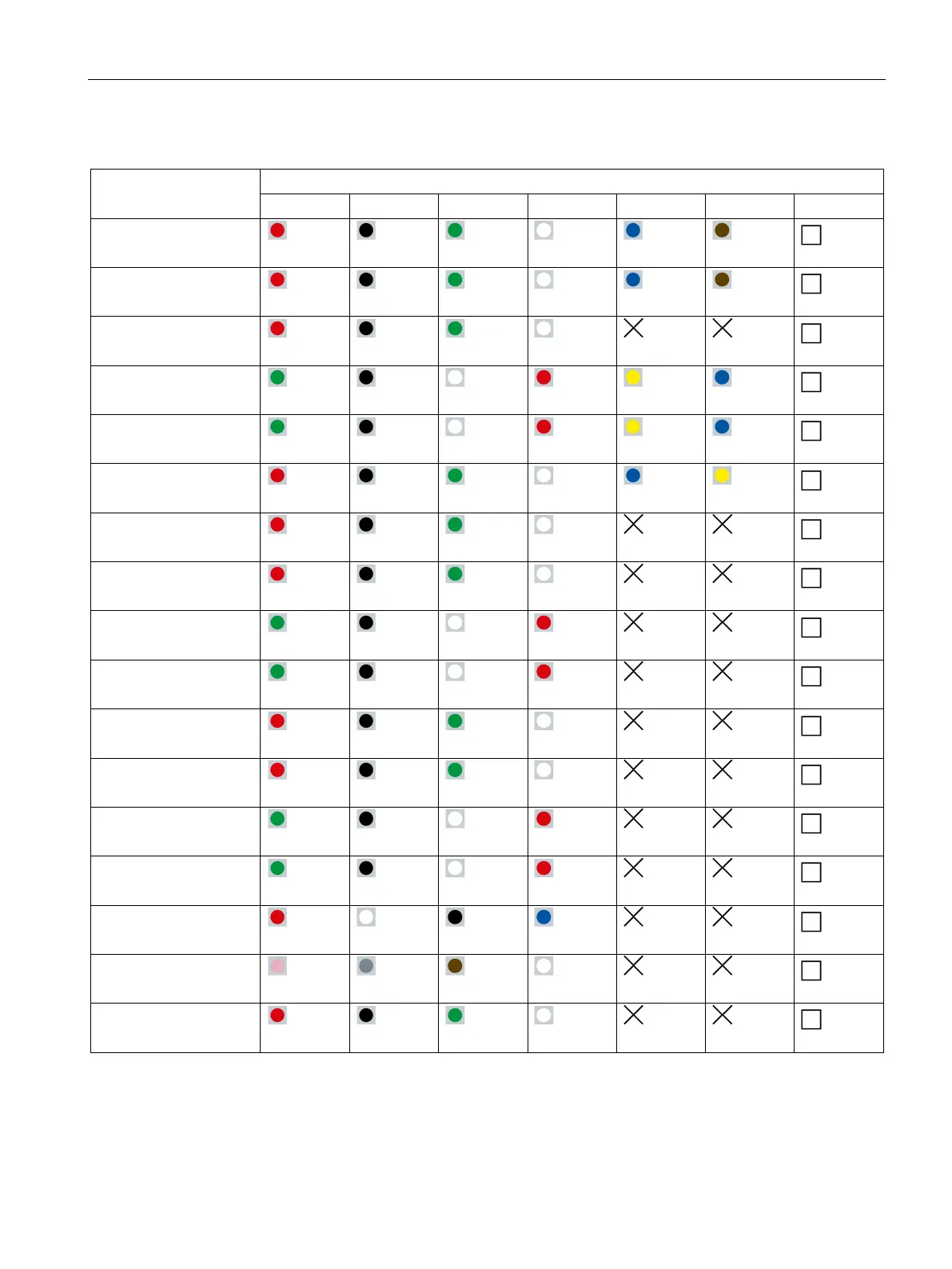

Table 5- 1 Signal assignment for the load cell connecting cable
Load cell
Function/color of connecting cable
EXC+
EXC-
SIG+
SIG-
Sense+
Sense-
Shield
SIWAREX WL260
SP-S AA
Red Black Green White Blue Brown
Trans-
parent
SIWAREX WL260
SP-S AB
Red Black Green White Blue Brown
Trans-
parent
SIWAREX WL260
SP-S AE
Red Black Green White n.a. n.a.
Trans-
parent
SIWAREX WL260
SP-S SA
Green Black White Red Green Blue
Trans-
parent
SIWAREX WL260
SP-S SB
Green Black White Red Green Blue
Trans-
parent
SIWAREX WL260
SP-S SC 10 ... 50 kg
Red Black Green White Blue Green
Trans-
parent
SIWAREX WL260
SP-S SC 100 ... 200 kg
Red Black Green White n.a. n.a.
Trans-
parent
SIWAREX WL250
ST-S SA
Red Black Green White n.a. n.a.
Trans-
parent
SIWAREX WL230
BB-S SA
Green Black White Red n.a. n.a.
Trans-
parent
SIWAREX WL230
SB-S SA
Green Black White Red n.a. n.a.
Trans-
parent
SIWAREX WL230
SB-S CA
Red Black Green White n.a. n.a.
Trans-
parent
SIWAREX WL270
CP-S SA
Red Black Green White n.a. n.a.
Trans-
parent
SIWAREX WL270
CP-S SB
Green Black White Red n.a. n.a.
Trans-
parent
SIWAREX WL270
CP-S SC
Green Black White Red n.a. n.a.
Trans-
parent
SIWAREX WL270
K-S CA
Red White Black Blue n.a. n.a.
Trans-
parent
SIWAREX WL280
RN-S SA
Pink Gray Brown White n.a. n.a.
Trans-
parent
SIWAREX WL290
DB-S CA
Red Black Green White n.a. n.a.
Trans-
parent
