10.15 SIWAREX WL270 K-S CA
Single
N
)
DD+
/
'
G
[5

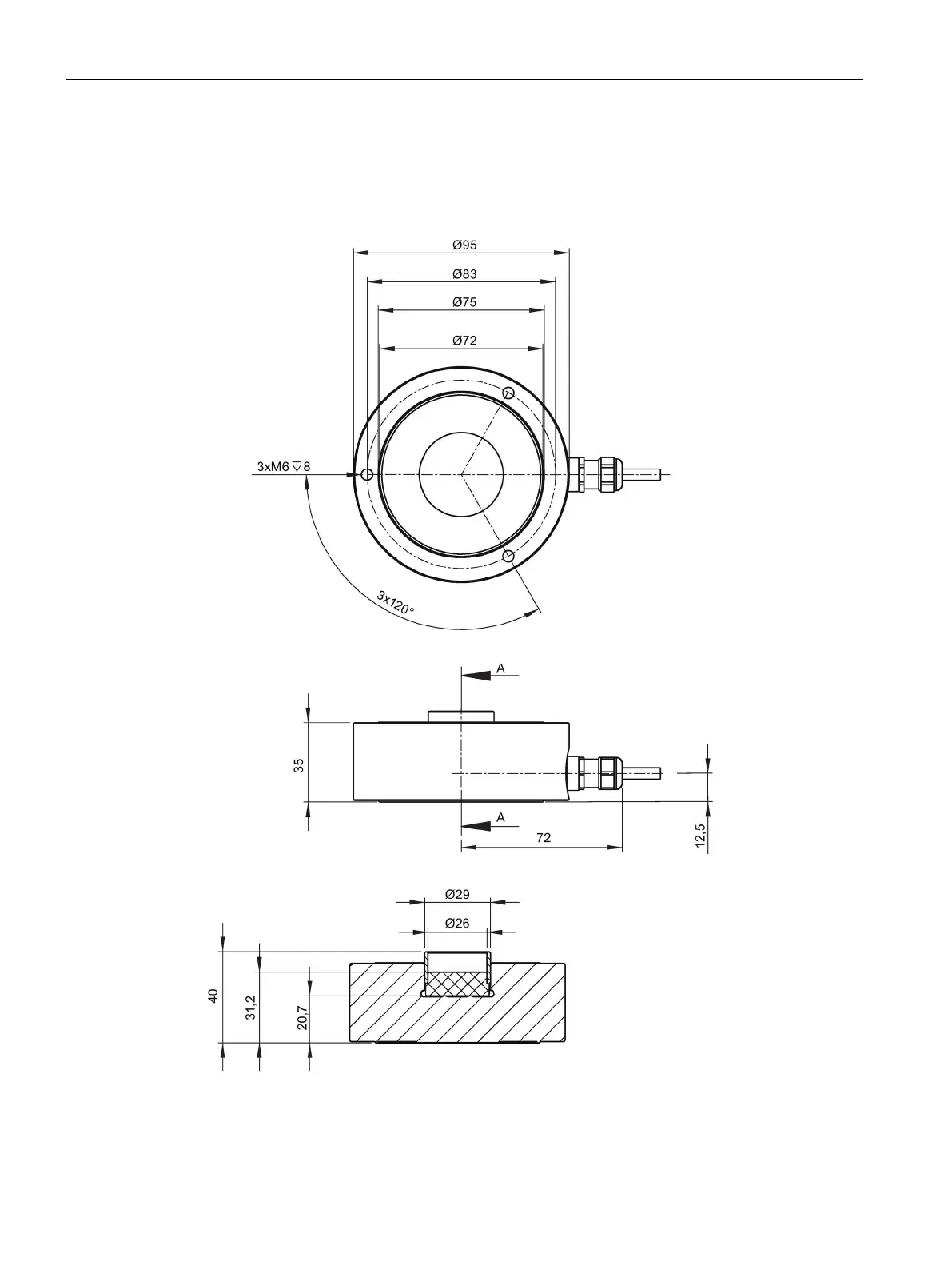

Figure 10-16 Dimension drawing for SIWAREX WL270 K-S CA
Rated load Dimensions in mm
a ∅d ∅D F H k L R
1.3 to 2.8 t,
6 t
8 16.7 45 20 40 40.5 56 50
13 t 12 24.5 55 20 44 45.5 68 66
28 t 14 36 64 20 46 48 74 72
60 t 20 52.7 90 20 50 63 90 100
130 t 26 77.5 121 20 64 78.5 116 125
280 t 45 114 165 20 80 100.5 170 183
350 t 40 132 202 50 160 127 240 325
500 t 47 155 236 50 181 144 275 450
Dimension drawings
10.15 SIWAREX WL270 K-S CA
