Siemens SIWAREX WL260 Series - Dimension Drawings; Siwarex Wl260 Sp-S Aa

Dimension drawings
10
The dimensions in the dimension drawings are in mm.
10.1 SIWAREX WL260 SP-S AA





0











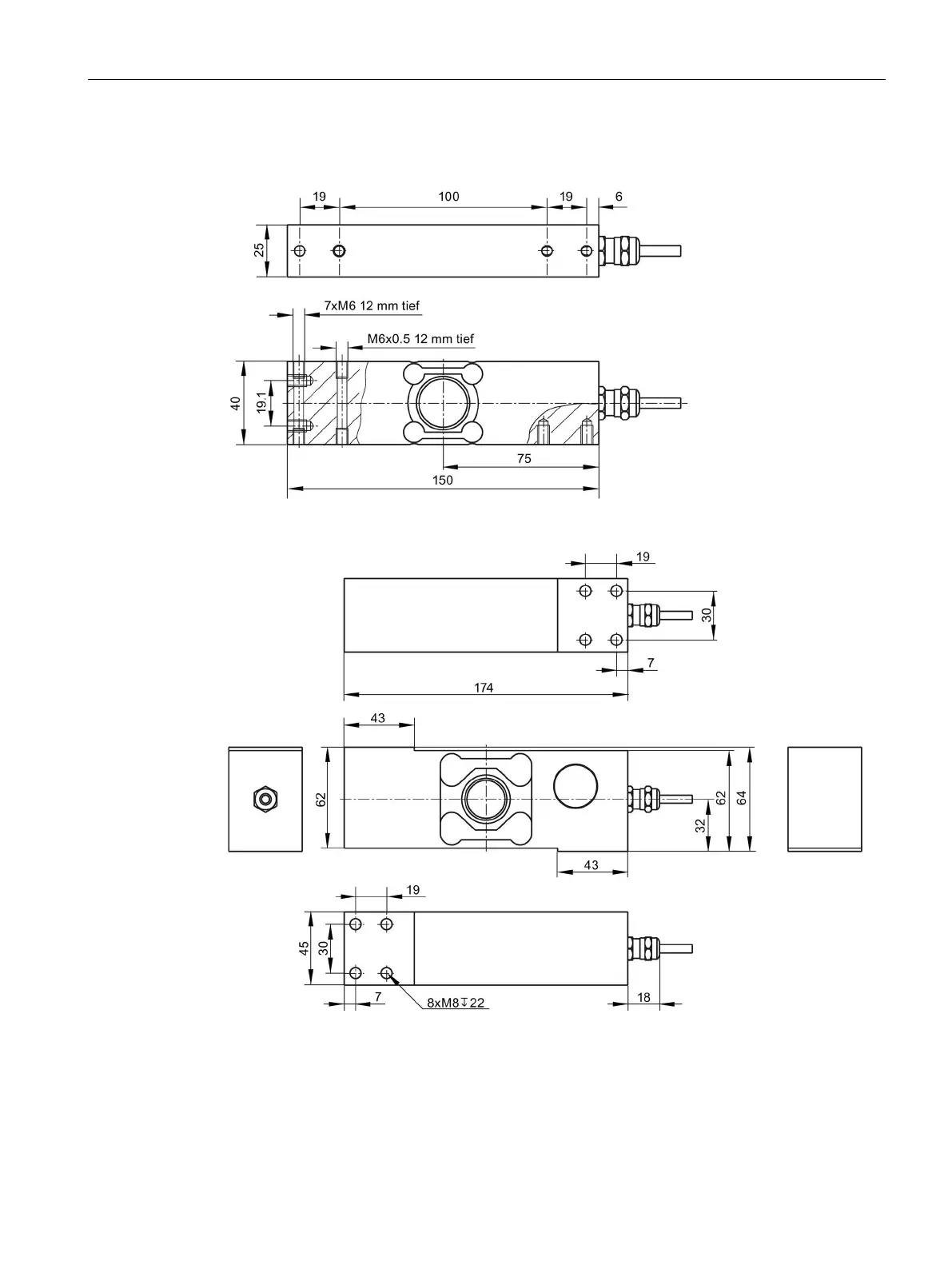

Figure 10-1 SIWAREX WL260 SP-S AA dimension drawing
Threaded holes
Designation Thread Thread depth
① M6 15 mm
