Dimension drawings
10.15 SIWAREX WL280 RN-S SA
SIWAREX WL200
Operating Instructions, 07/2016, A5E02199611B-03
83
10.15
SIWAREX WL280 RN-S SA
Dimension drawing for SIWAREX WL280 RN-S SA load cell for 60, 130, 280 kg
The dimension drawing also contains the dimensions of the pressure piece.
The pressure piece is included in the scope of delivery of the load cell.

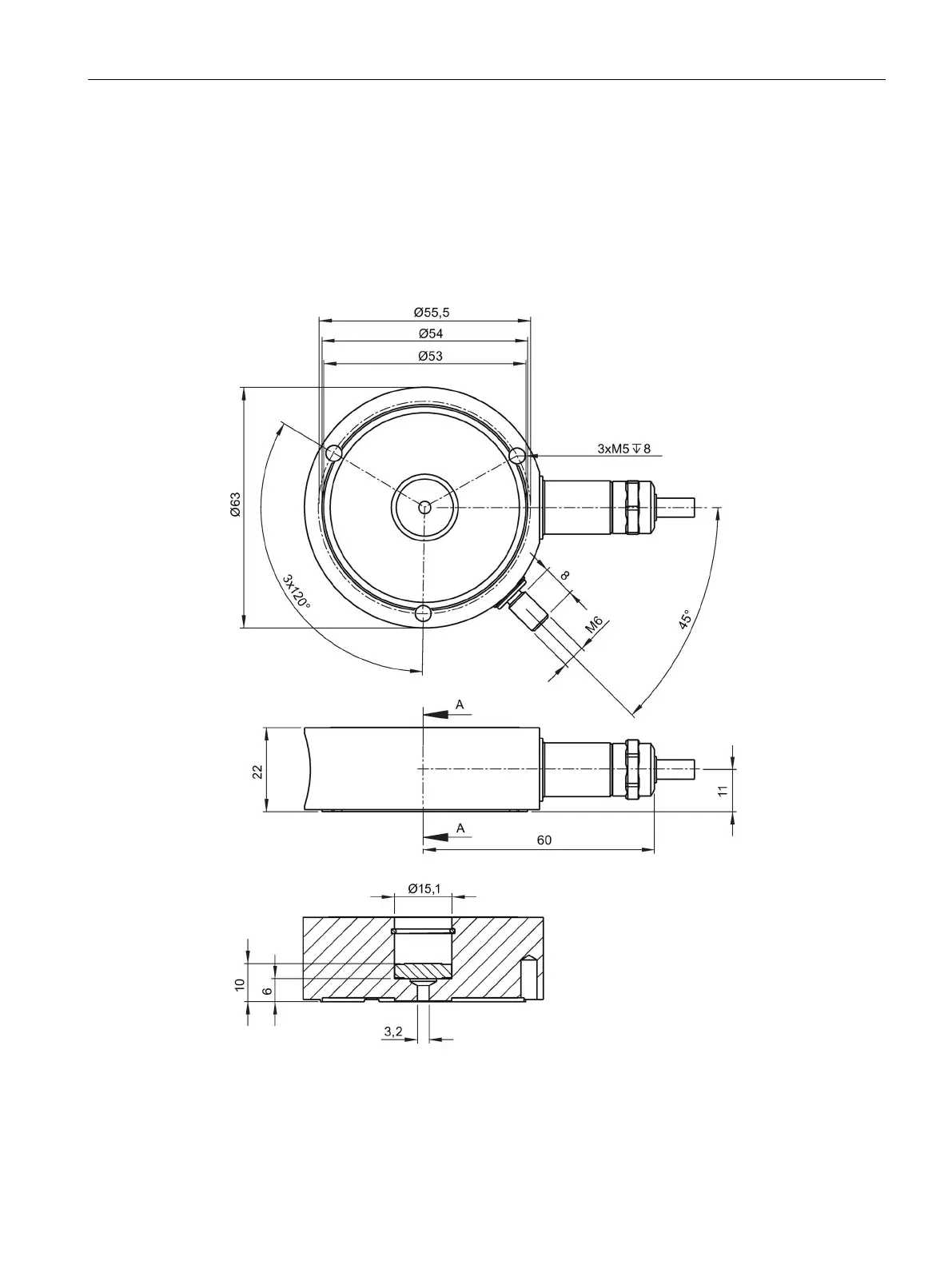

Figure 10-17 Dimension drawing for SIWAREX WL280 RN-S SA, rated load 60 kg, 130 kg, 280 kg
