10.17 SIWAREX WL290 DB-S CA
Dimension drawing of the load cell SIWAREX WL290 DB-S CA for 2.3; 4.5; 9.1; 13.6; 18; 23; 27; 34;
45; 68; 91; 113 t

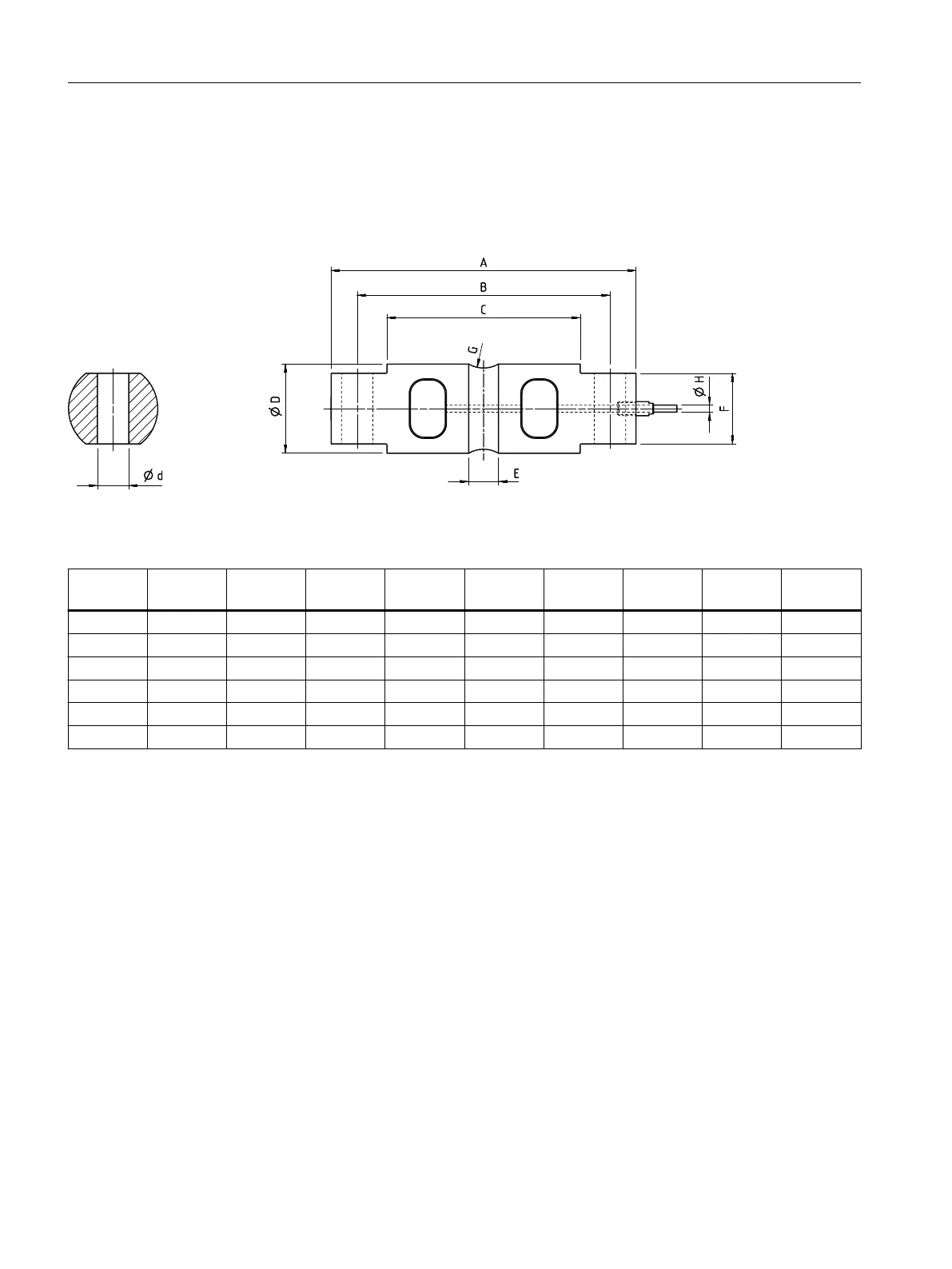

Figure 10-24 Dimension drawing of WL290 DB-S CA
Table 10-1 Dimensions WL290 DB-S CA
Rated
load (t)
A (mm) B (mm) C (mm) Ød (mm) ØD (mm) E (mm) F (mm) G (mm) ØH (mm)
2.3, 4.5 206.2 174.6 133.1 16.7 43.2 15.7 28.4 R12.7 5
9.1 206.2 174.6 133.1 16.7 49.5 21.3 28.4 R12.7 5
13.6 … 34 260.4 215.9 165.1 26.9 76.2 25.4 60.2 R25.4 8
45 285.8 241.3 190.2 26.9 88.9 31 63.5 R38.1 8
68 285.8 241.3 190.2 26.9 99.1 31 71.1 R38.1 8
91 to 113 408.9 330.3 254 39.6 136.6 31.7 116.8 R50.8 8
Dimension drawings
10.17 SIWAREX WL290 DB-S CA
SIWAREX WL200
94 Operating Instructions, 12/2021, A5E02199611B-13
